Operation and Maintenance of Rural Water Supply and Sanitation Systems: A Training Package for Managers and Planners (IRC - WHO, 2000, 298 p.) Part 2: Course contents Module 1: Introduction Unit 1: Course introduction Unit 2: Presentations Unit 3: Concepts and trends Unit 4: Linking water, health, sanitation and environmental protection Module 2: Situation analysis Unit 1: Operation and maintenance requirements Unit 2: Analysis of participation Unit 3: Analysis of constraints Unit 4: Analysis of objectives Module 3: Towards sustainable operation and maintenance Unit 1: Linking technology choice with operation and maintenance Unit 2: Institutional set-up Unit 3: Community management Unit 4: Gender awareness Unit 5: Cost recovery Unit 6: Monitoring for effectiveness Unit 7: Working and planning with communities Unit 8: Field visit Module 4: Planning Unit 1: Planning tools Unit 2: Individual assignments Unit 3: Final presentations

Operation and Maintenance of Rural Water Supply and Sanitation Systems: A Training Package for Managers and Planners (IRC - WHO, 2000, 298 p.)

Part 2: Course contents

Module 1: Introduction

Unit 1: Course introduction

1. Outline of session

· Objectives

To introduce the participants to one another
To review the participants’ fears and expectations
To reach a common understanding of the course’s objectives and structure

· Methodology

1. Welcome address
2. Exercise for group interaction
3. Group discussion on expectations and fears
4. Interactive presentation on course objectives, methodology and programme

· Materials

Ö Transparencies on the course’s objectives and programme

Ö Flip chart and masking tape

Ö Overhead projector, screen or white wall

Ö Stationery for each participant, including note pad, binder, pencil, eraser, pen and marker

Ö The binder should contain the following: the course’s objectives and programme, full list of participants, and practical information concerning food, lodging, transport, recreation areas, access to telephone, medical help, and contact person for information and emergencies.

· Handouts

Ö Information on the place where the course is being held (optional)

2. Notes for the facilitator

Welcome address and introduction

The welcome address can be given by the Director of the Institute where the course is being held, or by a well-known specialist. The facilitator’s introduction must clearly state his/her credentials and role, including some personal facts that would interest the participants, and he/she presents the team who will be working with the participants through the whole course. This is followed by an explanation of how the session will proceed, its objectives, and the methodology.

Interactive exercise

One way of making introductions is to ask the participants to pair up and spend a few minutes introducing themselves to each other. The facilitator then goes to each pair and, in turn, one of them will introduce the other, giving his/her name, nationality, place of residence, education, professional function, and one or two personal facts. In a course where the participants are meeting for the first time, this approach allows everyone to get acquainted with at least one person very quickly, and helps the participants to be relaxed and informal. At the end of this exercise, the participants are asked to write the name by which they would like to be called during the course on a folded sheet of paper, which will be placed in front of their respective places.

Expectations and fears

A group discussion can be started by asking the participants, “What are your expectations from this course?”, or “What did you think you would get out of this course at the time when you registered for it?” If no one volunteers to speak, the facilitator chooses someone with whom to start developing ideas, which are written on the flip chart. If any statement is not expressed clearly, these persons should be helped so that it becomes clear. Once the group’s views have been stated, the facilitator summarizes the participants’ expectations and relates them to the objectives of the course.

The same procedure is followed with regard to anxieties within the group concerning the course’s content, logistics, follow-up, etc., which can be started by asking the participants, “Have you any worries about this course?” Removal of such fears is important and allows the facilitator to get to know the group’s strengths and weaknesses, and to help the participants with any problems or difficulties that may arise.

Course’s objectives, structure, methodology and programme

The facilitator describes the course’s objectives, structure, methodology and programme, using the overhead projector and transparencies (see Part 1, Trainer’s Guide, in the section “About the training package”). In this process the participants’ expectations, which were discussed earlier (see above), should be related to the programme’s objectives. Time must be set aside for questions and clarifications, so that the objectives will be clear to all and any doubts can be dispelled. However, some of the expectations may not be met, and some concerns may remain. These matters should be discussed with the group, and the facilitator should help to clear up any misunderstandings. Questions on technical matters, e.g. a maintenance plan for diesel engines, could be deferred, if feasible, till the appropriate session during the course. If any concerns still remain, the matter should be referred to the course organizers and administration.

3. Overhead sheets: Sheet 1

Course objectives General objective · To contribute to the sustainability of water supply and sanitation programmes and projects in rural areas Specific objectives · To update knowledge on O&M issues · To reinforce management skills on sustainable O&M · To create specific approaches for better work and planning with communities · To develop individual assignments based on the lessons learnt and each participant’s workplace

Overhead sheet 2

Course outline Module 1: Introduction Unit 1: Course introduction Unit 2: Presentations Unit 3: Concepts and trends Unit 4: Links between water, health, sanitation and environment Module 2: Situation analysis Unit 1: O&M requirements Unit 2: Analysis of participation Unit 3: Analysis of constraints Unit 4: Analysis of objectives Module 3: Towards sustainable O&M Unit 1: Linking technology choice with O&M Unit 2: Institutional set-up Unit 3: Community management Unit 4: Gender awareness Unit 5: Cost recovery Unit 6: Monitoring for effectiveness Unit 7: Working and planning with communities Unit 8: Field visit Module 4: Planning Unit 1: Planning tools Unit 2: Individual assignments Unit 3: Final presentations

Overhead sheet 3

Proposed timetable

Week 1	Monday	Tuesday	Wednesday	Thursday	Friday
Session A	Introduction	O&M requirements	Analysis of constraints	Community management	Monitoring for effectiveness
Session B	Presentations	O&M requirements	Analysis of objectives	Community management	Monitoring for effectiveness
Session C	Concepts and trends	Analysis of participation	Linking technology choice with O&M	Cost recovery	Gender awareness
Session D	Linking water, health, sanitation and environmental protection	Analysis of constraints	Institutional set-up	Cost recovery	Preparation of field trip
	Daily evaluation	Daily evaluation	Daily evaluation	Daily evaluation	Daily evaluation
Week 2	Monday	Tuesday	Wednesday	Thursday	Friday
Session A	Field trip	Working with communities	Individual assignments	Preparation of presentations	Presentations
Session B	Field trip	Working with communities	Individual assignments	Preparation of presentations	Presentations
Session C	Lessons learnt from field trip	Planning tools	Individual assignments	Presentations	Evaluation Closing
Session D	Lessons learnt from field trip	Planning tools	Individual assignments	Presentations
	Daily evaluation	Daily evaluation	Daily evaluation

Unit 2: Presentations

1. Outline of session

· Objectives

To enable the participants to present their personal experiences with operation and maintenance

· Methodology

1. Individual or group exercise
2. Presentations by the participants

· Materials

Ö Transparencies on the forms to be filled in
Ö Flip chart and masking tape
Ö Large sheets of paper
Ö Overhead projector, screen or white wall

· Handouts

Ö Information about operation and maintenance services in the host country
Ö Forms for the exercise on initial presentations

2. Notes for the facilitator

The presentations allow the participants to share their personal experiences in different backgrounds with the group, and to give an overview of the problems which they have encountered or are likely to encounter in their professional life. This approach will help the facilitator to plan future sessions, taking into account these problems and the distinctive features of each group.

The facilitator will explain the object of the presentations and distribute a prepared form for each participant to fill in (see exercise sheet). Participants from the same department, region or project could be asked to join together and prepare a single presentation.

The group is given a maximum of 20 minutes to prepare the presentations. Each presentation is allowed 3 minutes, plus 2 minutes for questions or clarifications. Long discussions are not permitted at this stage since time will be given later during the course.

Each presentation should be written on large sheets, which will be put up on the wall during the presentation. If possible, a secretary should type out the main points and results of the presentations after the session is over, and distribute this information to all the participants.

One problem frequently encountered in this exercise is the tendency to exceed the time allocated. The facilitator must therefore be prepared to warn the participants when their time is nearly over. This responsibility could be shared with one of the participants.

Different presentations often tend to be repetitive as regards the problems or experiences that are described. One way of overcoming this is to organize the presentations by subject, taking all the participants who work on similar projects (e.g. gravity systems, or small piped systems with motorized water lifting, etc.) and grouping them together. Questions will be allowed only after all the participants in the subject area have completed their presentations.

3. Exercise sheet

Form for initial presentations 1. Personal data Name: ________________________________________________________ Nationality: ________________________________________________________ Location of professional activity: ________________________________________________________ Profession and education: ________________________________________________________ Present function: ________________________________________________________ 2. Programme/project Name of programme/project: Main components of the project (point by point and briefly): ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ 3. Main O&M and management problems ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________

Unit 3: Concepts and trends

1. Outline of session

· Objectives

To specify the importance of O&M and management

To analyse O&M in a wider perspective of sustainability. To define the concepts of operation, maintenance and management

To raise awareness on present trends

· Methodology

1. Introductory note
2. Focused discussion on the importance of O&M
3. Interactive presentation of the factors and process dealing with sustainability
4. Group exercise on definition of concepts
5. Exercise on the attributes of good management
6. Focused discussion on what is rural

· Materials

Ö Transparencies on the forms for exercises
Ö Flip chart and masking tape
Ö Overhead projector, screen or white wall

· Handouts

Ö Forms for exercises
Ö Copies of selected parts of background information
Ö Copies of all transparencies

2. Notes for the facilitator

Introductory note

The aim of this session is to clarify and define the key concepts around which the course has been designed. It is important for all participants to understand that the issues relating to O&M are not only technical, but also social, managerial, institutional, financial and environmental. Recent advances in water supply and sanitation projects reflect these concepts, which are the result of trials and experiences during the past 20 years. The session will also serve to introduce the group to a participatory teaching methodology, which does not exclude presentations and lectures. It is recommended that the group should be reminded, from time to time during the course, of these concepts which are the cornerstone of the whole approach.

Focused discussion on the importance of O&M

After reminding the participants that their decision to attend this course was because they believed O&M was an important issue in their profession, the facilitator asks them, “Why is O&M important?” The group’s answers to this question are written on the flip chart or board by the facilitator or one of the participants. If an answer is not clear, the facilitator helps this person and, in addition, may ask the participants to illustrate their answers with an example from personal experience in order to improve comprehension. The facilitator should ensure that the following ideas are mentioned and discussed by the group: proper functioning, user’s satisfaction, sustainability, quality of life, health standards, and credibility of investments. After the session, the results of the discussion may be typed out and distributed. The facilitator should not forget to keep track of time.

Interactive presentation of the factors and process dealing with sustainability

In an interactive presentation the facilitator, from time to time during the presentation, poses questions so that the group can interact, e.g. by explaining the situation in their own words or by experiencing or proposing new ideas. The presentation starts by reminding the participants of the close links between operation and maintenance and sustainability. The first message to be conveyed is that sustainability is a process which starts right from the planning stage, and that O&M is not simply what happens after the system has been constructed. The first overhead sheet, representing a graphic of sustainability, may now be presented. More details are provided below in the section on background information. The second message deals with the factors that influence sustainability. The facilitator can refer to the second overhead sheet and to the content details under background information. Another effective way to help the participants’ comprehension is to explain the drawing with sustainability circles, step by step.

Group exercise on definition of concepts

The facilitator asks the group to define the following terms: 1) sustainability, 2) operation, and 3) maintenance. Key words suggested by the participants are then written on the board, and from these a definition is gradually formulated for each term. At this stage, full phrases may not be required for the definitions.

A set of overhead sheets provides definitions for this course (pages 41-43), which are compared with what the participants proposed. Any difficulties in understanding should be discussed until the whole group reaches a consensus.

Exercise on the attributes of good management

Management is one of the key terms in this course. It is therefore important to have a common understanding about what it entails. There are no right or wrong answers, but the objective is to highlight the participants’ perception of management and to compare this with what the course will provide in terms of management tools.

The facilitator divides the participants into three or four groups and gives them an envelope containing labels, each representing a major attribute generally connected with management (see exercise sheet). Each group must choose five major attributes, which they think are needed for the proper management of projects. Some 15 to 20 minutes are required for this exercise.

Each group puts up their labels on the board and explains briefly (in five minutes) the reasons for their choice. The facilitator then presents the group with a definition of management and highlights some issues on management, which will be worked upon in the course. Time should be set aside for discussion and questions to promote clarification.

Focused discussion on what is rural

To end the session, the facilitator asks the group to reflect on this key term in the title of the course, i.e. what do they understand by “rural”? The participants’ answers may cause some difficulty because countries vary in their rural situations and characteristics. To facilitate consensus it can be proposed that, in the present context, the focus must be on low-cost technologies, including small piped-water supply systems. The aim here is not to give a precise definition of what is rural, but to provide a framework for improving rural water supply and sanitation, and to give an overview of the size and socioeconomic conditions of human settlements in the rural areas. Water supply and sanitation technologies will be reviewed during the session on “O&M requirements” (see Module 2, Unit 1).

3. Overhead and exercise sheets: Sheet 1

Sustainability in the project phases 1 & 2: Development reaches sustainability 3: Unsustainable development · Careful planning and design of O&M must already be completed during the planning and design phase · Sustainability starts at the planning phase · What are the factors that influence sustainability?

Overhead sheet 2

Factors which influence sustainability1 1 From CINARA-IRC course material: Gestion para la sostenibilidad en programas de agua potable y saneamiento (Management of sustainability in drinking-water and sanitation programmes), 1994-98. Institutional and legal framework Support - Adequate legislation - Resource development

Overhead sheet 3

Processes which influence sustainability · Demand from the community · Responsiveness from the supporting institutions · Participation of the community throughout the project phases · Linking technology choice with operation and maintenance · Integrated planning (sanitation, water, hygiene, environment) · Planning with a gender perspective · Decentralization and transfer of responsibilities and resources · Capacity-building at all levels · Communication among stakeholders · Public-private partnership · Co-responsibility between communities and municipalities

Overhead sheet 4

Definitions Sustainability A service is sustainable when: · it functions and is being used · it is able to deliver an appropriate level of benefits (quality, quantity, convenience, comfort, continuity, affordability, efficiency, equity, reliability, health) · it continues over a prolonged period of time (which goes beyond the life-cycle of the equipment) · its management is institutionalized (community management, gender perspective, partnership with local authorities, involvement of formal/informal private sector) · its operation, maintenance, administrative and replacement costs are covered at local level (through user fees, or alternative financial mechanisms) · it can be operated and maintained at local level with limited but feasible external support (technical assistance, training, monitoring) · it does not affect the environment negatively.

Overhead sheet 5

Definitions Operation Operation deals with the actual running of a service (e.g. provision of fuel, starting or handling of pumps, control of water collection points, general mechanical or water treatment procedures, hygienic handling, etc.). Maintenance Maintenance deals with the activities that keep the system in proper working condition, including management, cost recovery, repairs and preventive maintenance. · Crisis maintenance: maintenance undertaken only in response to breakdowns and/or public complaints, leading to poor service level, high O&M costs, faster wear and tear of equipment, and user’ s dissatisfaction. · Preventive maintenance: maintenance activities undertaken in response to prescheduled systematic inspection, repair and replacement, leading to continuity in service level, O&M costs spread over time, extension of life-span of equipment, user’ s satisfaction and willingness to pay.

Overhead sheet 6

Definitions Management Management deals with the control and organization of a service and encompasses the following main functions: · Development of a vision and strategy · Planning · Organization and mobilization of resources · Administration · Accounting · Leadership, motivation of personnel · Supervision, monitoring and evaluation · Promotion of external relationships. This course focuses on the following managerial issues: · Strategy development · Planning skills · Skills in problem-solving · Integration of technical and social issues · Communication (efficient presentation technique) · Monitoring · Human resource development · Planning with communities.

Exercise sheet

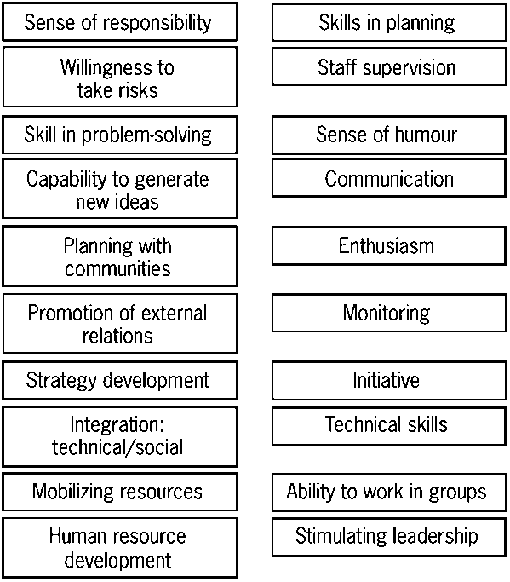

Management attributes1 1 Adapted from: Srinivasan L. Exercise in tools for community participation - A manual for training trainers in participatory techniques (PROWWESS/UNDP Technical Series). PROWWESS/UNDP - World Bank Water and Sanitation Program, New York, 1993. Prepare in advance an envelope containing the following labels which describe a possible management attribute. Each group will have to choose the five most important attributes for managing O&M. Figure

4. Background information

4.1 Operation and maintenance in the context of sustainability

Sustainability depends to a large extent on effective and efficient operation and maintenance. Many factors and processes that contribute to sustainability have a direct influence on operation and maintenance.

Sustainability can be analysed in time, as shown in the Figure on project phases. A service is sustainable when:

a) it is functioning and being used; b) it is able to deliver an appropriate level of benefits (quality, quantity, convenience, comfort, continuity, affordability, efficiency, equity, reliability, health); c) it continues over a prolonged period of time (which goes beyond the life-cycle of the equipment); d) its management is institutionalized (community management, gender perspective, partnership with local authorities, involvement of formal/informal private sector); f) its operation, maintenance, administrative and replacement costs are covered at local level (through user fees, or alternative financial mechanisms); g) it can be operated and maintained at local level with limited but feasible external support (technical assistance, training, monitoring); and h) it does not affect the environment negatively.

Proper operation and maintenance activities will contribute to the sustainability of a service after its construction, depending on a series of factors and processes which will have to be developed during the design and planning phase, and consolidated during the construction phase. In other words, the sustainability of operation and maintenance starts right from the planning stage.

4.2 Factors which contribute to sustainability and to effective operation and maintenance

As described in the chart with circles, sustainability relies on four interrelated factors (adapted from CINARA - IRC course material, 1994 to 1998): a) technical factors, b) community factors, c) environmental factors, and d) the legal and institutional framework.

The technical factors which are likely to influence operation and maintenance as well as sustainability as a whole are: technology selection; complexity of technology; its capacity to respond to a demand and a desired service level; its impact on the environment; the technical skills needed to operate and maintain a system; the availability, accessibility and costs of spare parts; and the cost of maintenance.

The community factors which are likely to influence operation and maintenance as well as sustainability as a whole are: availability of technical skills to operate and maintain a service, and implement preventive maintenance activities and small and big repairs; capacity and willingness to pay; participation of all social groups in the community and both men and women; financial and administrative management carried out by a legitimate and organized community structure; the felt need for an improved service; socio-cultural aspects related to water; and individual, domestic and collective behaviour regarding hygiene and sanitation.

The intersection between the technical circle and the community circle indicates the level of ownership and responsibility of communities towards the service. Ownership and responsibility are the key prerequisites for sustainable operation and maintenance.

The environmental factors which are likely to influence operation and maintenance as well as sustainability as a whole are: the quality of the water source (which will in turn influence the technology choice, and its need for treatment); and its quantity and continuity.

The intersection between the environmental circle and the community circle represents the way the community will manage water resources and especially the impact on the environment of community behaviour in terms of sanitation and management of used waters. Water resources management, pollution control, hygienic behaviour, and proper wastewater management are all crucial components for sustaining a water supply service, to which operation and maintenance must contribute.

All these factors evolve within a legal and institutional framework. At the national level there must be clear policies and strategies towards operation and maintenance, which can be implemented. Support activities, such as technical assistance, training, monitoring, water quality control, and the setting up of alternative financing mechanisms are all likely to influence operation and maintenance activities.

Financial factors are key components inherent in all the above factors (technical, community, environment and institutional).

4.3 Processes which influence sustainable operation and maintenance

Processes differ from factors since they focus on the approach and the methodology of working. In the past, it was thought that the development or consolidation of factors alone could contribute to greater efficiency, effectiveness and sustainability. Now, however, it is realized that processes also have an important role to play. Among the processes can be listed the following: demand from the communities; responsiveness from supporting institutions and agencies; participation of communities (men and women) through the whole project cycle; linking technology choice with operation and maintenance; integration of water, sanitation, health and environment; planning with a gender perspective; effective decentralization; communication among all stakeholders; public/private partnership; co-responsibility between community and municipality; and capacity-building at all levels.

Demand for an improved service by the communities is a prerequisite for sustainability. It is an expression of their commitment, and a way to make communities responsible for their choices and future tasks. However, demand should be promoted because communities must be made aware of the different technology options available, and of their financial consequences. The concrete expression of demand varies from one country to another and from one development agency to another. Demand can be manifested in the form of an initial contribution in cash or in kind to the capital costs, or in the form of a written solicitation from an organized community group to the municipality.

Responsiveness of support institutions and agencies is the capacity of municipalities, nongovernmental organizations (NGOs), and other institutions and agencies to respond adequately to the needs and demand of communities. In many countries, municipalities need to be consolidated in their ability to deal with rural communities.

Participation of communities (men and women) throughout the whole project cycle is essential since it is a way to motivate, make responsible and build the capacities of communities in their new tasks and functions.

Linking technology choice with operation and maintenance at the planning stage is the key in the technology selection process. Indeed, communities must be able and willing to operate, maintain, administrate and finance the new service.

Planning with a gender perspective implies that the roles and functions of both men and women are clearly defined for management, operation and maintenance, since these might also highlight the need for specific capacity-building activities.

The decentralization process, which is underway in most developing countries, has a definite impact on the way institutions deal with the provision of water supply services. The main trend is for municipalities to be responsible, while the private sector (formal and informal) can contribute actively in the maintenance of systems.

Communication from central to local level and vice versa, and between private agencies and development agencies can enhance the coordination of activities and implementation of policies. Furthermore, a proper information and monitoring system relies on effective communication channels.

Public/private partnership can have an important role in the operation and maintenance of improved water supply and sanitation services, where the private sector can operate, maintain, and manage the service under contractual agreements.

Co-responsibility between communities and municipalities implies that the tasks, responsibilities and functions of both parties are clearly defined. This is especially true now that municipalities are increasingly being given the legal and constitutional responsibility for the provision of public services. At the same time, community management is being promoted as a key element of sustainability. Efficient dialogue and a clear definition of roles need to be worked out, developed and consolidated.

Capacity-building at all levels is needed, especially in an environment of changing roles and responsibilities induced by the decentralization process.

Unit 4: Linking water, health, sanitation and environmental protection

1. Outline of session

· Objectives

To raise awareness on the need to link water, health, sanitation and environmental protection

To show that adequate operation and maintenance of water supply and sanitation will contribute to health and environmental protection

· Methodology

1. Introductory note

2. Video presentation followed by a discussion

3. Interactive presentation on the links between major health preventive measures and environmental protection

4. Focused discussion on behavioural change

5. Exercise in plenary using a behavioural change matrix

· Materials

Ö Overhead transparencies
Ö Flip chart and masking tape
Ö Overhead projector, screen or white wall
Ö Video projector
Ö Video: “Prescription for Health”

· Handouts

Ö Copies of all transparencies
Ö Selected extracts from background information

2. Notes for the facilitator

Introductory note

It was mentioned in a previous session that there is a trend to link water supply, health, sanitation and environmental protection activities because an adequate water supply by itself cannot solve all health problems. Proper handling and hygienic use of water, hygienic maintenance of water points and water sources, protection of the environment, safe sanitation disposal and cleaning of hands all contribute to the improvement of health. The facilitator must therefore focus on the importance of linking water supply, health, sanitation and environmental protection, and help all participants to see the need for such integration.

Video presentation followed by a discussion

A 23-minute video film, “Prescription for Health”, was produced by the IDRC (International Development Research Centre), P.O. Box 8500, Ottawa K1G 3H9, Canada, and is suitable for audiences of diverse cultural backgrounds. It was filmed in Bangladesh, Kenya, Philippines, Sri Lanka and Thailand, with extensive animation sequences to illustrate clearly the contamination path. The video promotes personal hygiene and community practices linked to water supply and sanitation, which can help to break the cycle of infection. Produced in collaboration with the World Health Organization and OXFAM, the video is primarily aimed at health care workers and water and sanitation engineers. It is a source of information for planners and policy-makers, and particularly strong in raising awareness.

After viewing the video, the participants are asked by the facilitator to comment on the key messages brought up in the film. Their main ideas are written on the board, together with statements from the video which are added by the facilitator who must be thoroughly familiar with the film. The facilitator then asks the participants how far this type of approach has been or could be utilized in their own working environment, and encourages them to discuss freely based on their personal experiences.

Identification of obstacles that inhibit the link between water supply, health, sanitation and environmental protection is discussed in a plenary session. The aim of this exercise is to show the constraints that must be overcome in order to reach integration. Such issues as no priority, not our mandate, no knowledge about it, poor financial resources, and poor inter-sectoral cooperation might come out during the discussion. The course does not try to solve these problems, but tries to show how O&M activities can contribute to this integration.

Interactive presentation on major preventive measures and environmental protection

Using the overhead sheets provided, the facilitator shows the major preventive measures for reducing the transmission of diseases related to water and sanitation. Some explanations are available in the background information and supporting material.

The topic of environmental protection is dealt with in the same way. In both cases, it is important to show how these issues are related to O&M and its management. After an overhead sheet is presented, the group is asked, “How can a better O&M contribute to this situation?”

Focused discussion on behavioural change

Since hygiene practices and environmental protection activities are linked to specific individual, domestic or collective behaviours, the facilitator initiates a discussion with the group by asking the following questions: “Can you give examples from your professional experience of activities that aimed at changing behaviour, or specific outcomes which depended on behaviour change?” “Were they successful?” “What made them successful or not successful?” The facilitator then discusses with the group some basic aspects which make behavioural change not always successful (see background information).

Exercise in plenary using a behavioural change matrix

Key criteria for activities to promote behavioural change have been developed in a matrix by UNICEF, which can be presented to the whole group as an exercise in a plenary session. The matrix is given in an exercise sheet.

The facilitator asks the group for examples of behavioural change which all participants are familiar with, such as “Use of chlorine tablets to disinfect water at household level”. The facilitator goes through the whole matrix with the participants, analysing the chosen behaviour change, and scores the total number of points. The final result is evaluated according to the ranges given in the exercise.

3. Overhead and exercise sheets: Sheet 1

Prevention of diseases related to water and sanitation Major preventive measures 1. Safe human excreta disposal* 2. Personal hygiene 3. Domestic hygiene 4. Food hygiene 5. Water hygiene* 6. Safe wastewater disposal and drainage* *Link with Operation and Maintenance.

Overhead sheet 2

Relationship between infection and preventive measures1 1 From: Boot M, Cairncross S. Action speaks: the study of hygiene behaviour in water and sanitation projects. The Hague, IRC (and London School of Hygiene and Tropical Medicine), 1993.
Infection	Safe human excreta disposal*	Personal hygiene*	Domestic hygiene	Food hygiene	Water hygiene*	Drainage*
Diarrhoea Dysentry Typhoid Cholera
Roundworm (ascariasis) Whipworm (trichuriasis)
Hookworm
Beef and pork tapeworms
Schistosomiasis (bilharzia)
Guinea worm (dracunculiasis)
Scabies Ringworm Yaws
Trachoma Conjunctivitis
Louse-borne typhus Louse-borne relapsing fever
Malaria Yellow fever Dengue
Bancroftian filariasis
* Can be influenced by adequate operation and maintenance.

Overhead sheet 3

Drinking water source protection1 1 From: Bastemeyer TF, Lee MD. Drinking water source protection. The Hague, IRC, 1991. · Appropriate source selection and intake · Catchment protection* · Sanitary surveying of water point* · Improvement of sanitation practices* · Physical protection of wells and intakes* · Soil and water conservation techniques* · Wastewater treatment* · Wastewater recycling* · Artificial recharge · Reforestation · Community motivation and awareness* · Partnership between communities and authorities · Legislation and enforcement * Can be influenced by adequate operation and maintenance practices.

Exercise sheet

Behavioural change matrix Criteria for evaluating the likelihood of behavioural change (Source: van Wijk C, Murre T, Esrey S. Motivating for better hygiene and behaviour. New York, UNICEF - IRC, 1996)
Health impact of behavioural change	Complexity of behavioural change		Direct consequences of behavioural change
0. No impact on health	0. Unrealistic		0. No consequences
1. Minor impact	1. Involves too many actions		1. Minor consequences
2. Some impact	2. Involves many actions		2. Some consequences
3. Significant impact	3. Involves few actions		3. Significant consequences
4. Very significant impact	4. Involves two actions		4. Major consequences
5. Eliminates the problem	5. Involves one action		5. Consequences guaranteed
Frequency of behaviour	Cost and effort of engaging behavioural change		Persistence needed to induce behavioural change
0. Too cumbersome	0. Unrealistic		0. Unrealistic
1. Must be done hourly	1. Requires important resources and effort		1. Requires compliance for several weeks
2. Must be done once a day	2. Requires significant		2. Compliance for a week
3. May be done every few days	3. Requires some resources and effort		3. Compliance for several days
4. May be done once a week	4. Few resources or effort		4. Compliance for a day
5. May be done occasionally	5. Requires only existing resources		5. Very brief compliance
Compatibility with existing activities	Observability		Similar practices
0. Totally incompatible	0. Cannot be observed by an outsider		0. Nothing like this is done
1. Significantly incompatible	1. Very difficult to observe		1. Slightly similar
2. Some incompatibility	2. Difficult to observe		2. Existing practice similar
3. Little incompatibility	3. Is observable with attention		3. Several similar practices
4. Easy to incorporate in existing activities	4. Observable		4. Many similar practices
5. Type of activity already widely practised	5. Cannot be missed		5. Similar practices widely existing
For each proposed behavioural change, score 0 to 5 for each of the nine boxes. Aggregate the total score for each behavioural change. If the score is less than 20, it is highly unlikely that the audience will make the change. Different goals must be set. If the score is over 36, it is highly likely that the goal will be achieved.

4. Background information

4.1 Why is behaviour not changed by conventional hygiene education?¹

¹ From: van Wijk C, Murre T, Esrey S. Motivating better hygiene behaviour: importance for public health - Mechanisms of change. New York, UNICEF - IRC, 1996.

Planners of hygiene programmes and practitioners often believe that it is possible to give universal hygiene messages to the population. Such messages are based on the assumption that the knowledge of health educators is superior to local insights and practices. The fact that people have adapted their lifestyle to local circumstances and developed their insights and knowledge over years of trial and error is overlooked. General hygiene messages can therefore be irrelevant, incomplete or unrealistic.

The methods used to get the information across are often not suitable to create behavioural change. Many health messages are given in the form of lectures at health clinics, talks in meetings and gatherings, and through the mass media (e.g. posters, radio talks, brochures and booklets). Even if the educators succeed in reaching the intended audiences using the media, the people are only “told what to do”, and often do not get the chance to relate the message to their own experiences. It is important to realize that people can make sense of new information only in the light of their own experiences, perceptions and cultural backgrounds.

Many health education programmes teach people about water and sanitation-related diseases - what they are, how they are caused, and how they are prevented. But education does not, by itself, reduce the risks of transmitting these diseases. Only action can do this; knowledge is useful but not sufficient. Reviews of hygiene programmes show that appropriate settings to promote particular changes are rare.

4.2 What motivates people to improve their hygiene?

If general messages and information on disease transmission do not change people’s behaviour, what is it that can bring people to take action on the risky practices and conditions in their own environment?

An individual will adopt new behaviour when he or she believes that the practice has clear benefits - for health or other reasons - and considers these benefits as important. Change of behaviour is also considerably influenced by convenience, comfort, and status. The individual will then develop a positive attitude to the change. Positive or negative views on the environment from others can also influence a person’s decision to try the new practice. Thus, an individual’s attitude and situation will determine if the practice is taken up, and when this is found to be beneficial, it is continued.

What hygiene education programmes can do is to support water and sanitation projects, which are planning to install new facilities for the community’s use:

a) by assessing if water, sanitation and hygiene have a high priority among the various groups in the community, and by promoting their understanding of the implications of the existing conditions and proposed technical options for both community and family health;

b) by following up people’s use of the newly installed facilities and their hygiene practices in order to provide feedback to planners who will be better prepared to reduce other disease transmission risks, which prevent the realization of health improvements in the communities concerned.

Certain practices cannot produce results by individual change alone, but require concerted action by larger groups and the whole community. Making choices together, assigning responsibilities, and monitoring action will increase the people’s commitment to put into practice the agreed changes. Communal change is only possible when the community members themselves feel there is a problem and jointly undertake action that will permanently improve the conditions and their practices.

When learning, people remember 20% of what they hear, 40% of what they hear and see, and 80% of what they discover for themselves. This calls for a change in the way teaching is carried out - from a didactic to a more participatory and growth-centred education.

Four major factors stimulate people to change their behaviour: 1) facilitation (convenience, making life easier); 2) practical understanding; 3) influence of others; 4) capacity to change.

4.3 Experiences in better water resource management¹

¹ Extracts from: Bastemeyer T. Drinking-water source protection. The Hague, IRC, 1991.

Source selection and siting of intakes

Field experience shows that good source selection and adequate siting of intakes contribute to the reliability of the water supply system. For the selection of groundwater sources, in particular for small point source supplies, procedures could be more systematic, both in terms of locating high-yielding sites and in terms of avoiding sites with a high potential for contamination by seepage from the surface.

For the siting of shallow drilled and hand-dug wells, the risk associated with faecal contamination from on-site sanitation are poorly understood and quantified. Where water supply points are located within or adjacent to settlements, two elements have not been adequately addressed with respect to possible contamination by existing sanitation units and/or waste disposal practices. The first element concerns the risk of contamination of drinking-water sources from waste. The second is the lack of criteria for the establishment of safe distances between water source and possible contamination points.

With increasing population pressures and expansion of human activities into previously undisturbed catchment areas, risk assessment must take into account both current and projected activities within the catchment area.

Catchment protection

More active protection of catchment areas is needed, which involves a systematic appraisal of catchment areas for surface or groundwater sources and the identification of environmental factors related to land use. There is a need for practical experience to develop checklists for small sources to be effectively managed and maintained by local communities.

The groundwater pollution risk is the product of the contaminant load applied to the subsurface by human actions and the natural pollution vulnerability of the aquifer. To protect aquifers, it must be clear which pollutants and pollution sources affect them most. This knowledge forms the basis for delimiting protection zones within which human activities must be regulated.

Protection zones are important for the design, prioritization and distribution of water resources protection measures. The zones can be delimited with respect to the level and nature of the risk, resulting in more coherent and incisive protection strategies. The effectiveness of protection zones depends on the commitment of the local population to observe established protection measures. Protected areas are obviously increasingly vulnerable as population density increases.

Sanitary surveying

Sanitary surveys are a form of risk assessment in which the bacteriological, physical and chemical quality of a water source, the technical quality of the water supply point, the way it will be used by the communities, the surrounding environmental hygiene conditions, and the potential causes for contamination are examined. Their purpose is to minimize the level of risks of on-site contamination by identifying remedial measures which can quickly and easily be undertaken.

Improvement in sanitation

The problem of contamination of the water supply by users through poor sanitation and hygiene is widespread. Use of latrines and other sanitary systems reduces the risk of faecal pollution by excluding contamination of the topsoil or ground surface so that excreta are not washed into the surface water or transported by animals. The design of latrines should in principle ensure that there is no direct sub-surface link between the excreta and the groundwater supply, which involves taking into consideration the site, soil type and depth, and seasonal and daily water levels.

Physical protection of wells and intakes

Users pollute their water sources due to the lack of awareness about ways and means to ensure adequate physical protection of the water supply point. Community water supply projects, which are engaged in groundwater development through construction of wells, recognize the importance of simple site protection against pollution. The addition of well-aprons, soakway drains, covers and handpumps protect the water’s quality by preventing the inflow of contaminated water back into the well.

Soil and water conservation techniques

Soil and water conservation activities can decrease turbidity by preventing sediment transport, increasing groundwater recharge, and decreasing surface flow peaks by increasing infiltration. A full range of erosion control techniques and strategies has been pioneered for developing countries and applied with considerable success.

However, soil erosion has expanded at a faster pace than most national governments have been able to cope with. A large proportion of soil erosion problems resulted from the expansion of shifting cultivation techniques into marginal areas. Additionally, they result from the settling of previously semi-nomadic people who have little history of terrace building or other traditional forms of soil stabilization.

Wastewater treatment

Both industrial effluent and domestic sewage should be treated to minimize pollution risks. For domestic sewage, different on-site and off-site technical options are available, but they are not always applied. In the developing countries, sewage lagoons and oxidation ditches are among the most economical methods. There is little experience in the use of simple and effective, low-cost treatment technologies for small-scale industrial polluters, especially for small rural agro-industries. There are no feasible treatment possibilities to deal with the many toxic elements originating from industries and the misapplication of fertilizers. Preventive measures against contamination from industrial and agricultural activities are therefore crucial.

Wastewater recycling

Wastewater treatment is complementary to wastewater recycling. As such, sewage waste may only need partial treatment in order to be used on farmland for irrigation or in a range of industrial processes where water quality standards are not critical. Wastewater recycling, if carried out correctly, can be a form of water source protection as well as conservation. The risk of contamination of water sources is decreased through proper recycling and increases the efficient use of the water source. In this way, water is treated by less expensive methods, since treatment requires mainly the removal of coliforms and helminths (e.g. wastewater treatment ponds).

Artificial recharge

Ground-water resources can be managed in order to decrease water table recession and saltwater intrusion, by artificial recharge. On the small and medium scale, recharge is predominantly performed from infiltration ditches, ponds and basins, retention of river underflow (using sub-surface dams), and through the retention of river floodwater. Sand storage dams can also be used to increase the dimensions of the shallow ground-water reservoir.

Reforestation

Reforestation programmes coupled with anti-erosion, soil and water conservation techniques are considered essential for the improvement of many water source problems. However, at the present time many more trees are cut down than planted.

Community motivation and awareness

Many water pollution problems are due to a lack of awareness of the causes of health problems among communities. The link between water, hygiene and illness is not strongly perceived since water is assumed to be beneficial and cleansing rather than a potential source of infection.

Partnership between communities and government agencies

A reliable and functioning water supply system may greatly contribute to the protection of water sources, and vice versa. Community-based maintenance and management of water supply systems is a good starting point for a more integrated approach to water source protection and environmental conservation. Although community water management strategies are possible, there must generally be direct links between the community and the water source. Communities must be the users of the water source or derive some other benefit from the protective action such as commercial benefits from tree planting or increased crop production following soil conservation. Conflict of interest between upstream and downstream users is a serious problem worldwide. That is why a sound legal basis for community water supply systems is very important. Government institutions and local authorities should support community efforts to manage and protect their drinking-water sources.

Legislation and enforcement

At the present time, water resource and environmental legislation in most developing countries has evolved over the years in response to specific water management problems, which were associated with economic and demographic growth. The legislation has usually been directed towards controlling the use of water from major rivers or lakes, which are of economic significance, and currently does not provide a good basis for the protection of drinking-water sources.

WHO has listed the following legal issues which require attention:

- regulations are needed to ensure that the source exploited for community water supply is the most favourable in terms of quality, quantity, and access;

- regulations are needed to ensure health and environmental protection for wastewater use since there are obvious public health hazards;

- legal provisions are required to ensure that potential water sources are adequately protected from the harmful effects of wastewater infiltration;

- legislation and regulations are needed to ensure that the costs of community water supply and sanitation are recovered from all water source users.

Module 2: Situation analysis

Unit 1: Operation and maintenance requirements

1. Outline of session

· Objectives

To identify the rural water supply and sanitation technologies which are most frequently used in the participants’ projects

To identify the operation and maintenance requirements of both water supply and sanitation technologies

To review problems in spare parts availability.

· Methodology

1. Introductory note

2. Focused discussion on rural water supply and sanitation technologies most frequently used in the participants’ projects

3. Group assessment of operation and maintenance requirements and problems most frequently encountered

4. Presentation on spare parts availability.

· Materials

Ö Overhead transparencies
Ö Flip chart and masking tape
Ö Overhead projector, screen or white wall

· Handouts

Ö Copies of all transparencies
Ö Selected extracts from background information
Ö Forms for the exercise

2. Notes for the facilitator

Introductory note

Situation analysis starts by reviewing the main technical activities for the operation and maintenance of rural water supply and sanitation services. It allows the participants to understand and be familiar with the various technologies presented in the course.

Focused discussion on rural water supply and sanitation technologies

The facilitator asks the participants what types of technologies are being promoted in their rural water supply and sanitation projects. These are listed on the board and, with the aid of the transparencies (see overhead sheets, pages 65-67), compared with the technologies presented in the course.

The course deals with only human excreta disposal systems, which is the basic sanitation option in many projects. This does not mean that other aspects of sanitation, such as wastewater disposal, solid waste disposal, and drainage of surface (rain) water, are not important because they are all important.

All water supply and sanitation project planners should, as if automatically, be able to integrate their basic and simple wastewater disposal services with water supply services. However, the course does not advocate systems which cannot be sustained by rural communities.

Group assessment of basic O&M requirements

The aim of this exercise is to assess the basic O&M activities in a particular system which will be chosen by the groups, including their frequency, human resources and skills, and requirements for tools, equipment, materials and spare parts. The participants are divided into groups corresponding to the main technologies, including sanitation. All participants are asked to fill in a form (see exercise sheet on “Assessment of basic O&M requirements”). Each group then rapidly presents their work, with an emphasis on the problems encountered which will be considered throughout the course. The present session deals with the problem of spare parts availability.

Interactive presentation on spare parts availability

Problems in the availability of spare parts are often encountered in the operation and maintenance of water supply and sanitation projects. This session reviews the main characteristics of the problem, which must be taken into account in planning for spare parts. The overhead sheets and background information (see below) will be useful in preparing the presentations, in which the participants will describe their experiences. In addition, a spare parts supplier could be invited to share his experience and perceptions during the session.

3. Overhead and exercise sheets: Sheet 1

Water sources for low-cost water supply technologies Rain water Rooftop water harvesting Catchment and storage dams Groundwater Spring water captation Dug well Drilled well Subsurface harvesting Surface water Protected side intake Bottom river intake Floating intake Sump intake

Water-lifting technologies Rope and bucket: loose, through a pulley, or on a windlass Bucket pump Rope pump Suction plunger handpump Direct action pump Deep-well piston pump Deep-well diaphragm pump Centrifugal pump Electrical submersible pump Axial flow pump Hydraulic ram

Overhead sheet 2

Power systems Human power Animal traction Windmill Photovoltaic systems Electric engines Diesel engines

Water treatment devices At the household level Heating Solar disinfection Household slow sand filter Domestic chlorination At the community level Pot chlorination in well Storage and sedimentation Upflow roughing filters Slow sand filtration Chlorination in piped water supply systems

Overhead sheet 3

Low-cost sanitation technologies Dry systems · Basic improved traditional latrine · Ventilated improved pit latrine · Double-vault compost latrine Wet systems · Pour-flush latrine with leaching pits · Aqua-privy · Pour- or full-flush latrine with septic tank Pit-emptying techniques · Vacuum tanker · Vacutug · Manual latrine pit-emptying technology Liquid effluent disposal systems · Soakaway · Drainage field · Small-bore sewerage

Exercise sheet

Assessment of basic Operation and Maintenance requirements
Technology choice (Fill in when applicable)
Type:	Power system	Distribution system	Water treatment
Major O&M activities	Frequency	Tools, materials, spare parts	Skills and human resources
Conclusion
Tools, materials, and spare parts needed:
Skills and human resources needed:
Main problems:

Overhead sheet 4

Sustainable provision of spare parts depends on: 1. The demand for spare parts · Spare parts needs · Spare parts costs · Spare parts accessibility 2. The supply of spare parts · Use of local materials and manufacture · Marketing and sales points · Perspective on profits 3. Strategic issues · Efficient planning · Quality of spare parts · Whether to standardize · Approaches to reduction of spare parts needs · Appropriate pricing policy · Private sector involvement · Capacity-building

4. Background information

4.1 What is sanitation?

Sanitation encompasses the following: 1) human excreta disposal systems, 2) wastewater disposal devices, 3) solid waste disposal, and 4) drainage of surface (rain) water. This course focuses mainly on human excreta disposal, which is considered to be the basic sanitation option. The other three areas are also important and some comments on them are given below.

Wastewater is either sullage (greywater), which is wastewater from kitchens and bathrooms, or sewage (blackwater), which includes sullage and is settled wastewater containing parts of human excreta, and water-borne waste. Problems are mainly encountered in areas with a high density of houses and people, where the wastewater is liable to flooding if there is no proper drainage, or can be a source of smells, rodents and contamination (see Module 1, Unit 4). Wastewater can contaminate drinking-water supplies through broken pipes or the spread of stagnant water, depending on the absorption capacity of the soil. The problem with water-borne disposal is its high rate of water consumption, regular blockage in the drainage system, and high O&M costs.

Plans for simple wastewater disposal and drainage devices should be made during the initial technical design phase. Proper maintenance of small gutters, drainage devices, or areas surrounding water points is essential, and communities should actively participate to prevent blockages and stagnant water forming around the water points.

Solid waste generally includes household refuse, waste from institutions, industrial waste and hospital waste. Rural areas are mainly concerned with the first two of these, but can be contaminated indirectly by pollution from industrial waste. Populations in developing countries produce different wastes from those in industrialized countries; there is a similar difference in wastes between urban and rural areas. Vegetable waste accounts for, on average, 30% of the total waste in industrialized countries and 75% in developing countries; the possibilities for composting and recycling depend on the composition. Improper solid waste disposal can present a public health risk, and is often the cause of drainage blocks and aesthetic problems. Unplanned and uncontrolled dumpsites can generate ground and groundwater pollution, as well as lead to air pollution and proliferation of rodents.

Maintenance activities linked to wastewater and solid waste disposal in rural areas are to a large extent a matter of preventive maintenance by the active involvement of users. Behavioural changes in communities to improve the operation and maintenance of basic sanitation systems can be induced by effective awareness campaigns, together with participatory sanitary problem assessment (see Module 1, Unit 4).

4.2 Water supply and sanitation O&M fact sheets

The fact sheets given below are extracted from: Linking technology choice with operation and maintenance, in the context of low-income water supply and sanitation, by F. Brikké et al. Published by the Operation and Maintenance Network of the Water Supply and Sanitation Collaborative Council, 1997, and available from WHO headquarters (contact Mr J. Hueb) or from IRC.

O&M FACT SHEET

Rooftop water harvesting

a. Brief description of technology

Rooftop catchment systems gather rainwater caught on the roof of a house, school, etc. using gutters and downpipes (made of local wood, bamboo, galvanized iron or PVC) and lead it to one or more storage containers ranging from simple pots to large ferrocement tanks. If properly designed, a foul flush device or detachable downpipe is fitted for exclusion of the first 20 litres of runoff during a rainstorm, which is mostly contaminated with dust, leaves, insects and bird droppings. Sometimes runoff water is led through a small filter consisting of gravel, sand and charcoal before entering the storage tank. Water may be abstracted from the tank by a tap, handpump or a bucket and rope system.

Initial cost:	In Southern Africa, US$ 320 for a system with 11 m galvanized iron gutter, 1.3 m3 galvanized iron tank, downpiping, tap and filters, excluding transport (Erskine, 1991). Where the roof is not suitable for water harvesting, the cost of improving the roof and gutters will have to be added to the cost of the tank. Such costs were found to vary between about US$ 4 (in Kenya, subsidized) and US$ 12 (in Togo) per m2 (Lee & Visscher, 1992). Total capital costs for rooftop rainwater catchment systems are usually higher than for other water supply systems.
Yield:	Potentially almost 1 litre per horizontal square metre per mm rainfall. The quantities usually are only sufficient for drinking purposes.
Area of use:	Most developing countries with one or two rainy seasons (especially in arid and semi-arid zones, with average annual rainfall ranging from 250 to 750 mm) and where other improved water supply systems are difficult to realize.
Construction:	Systems are usually produced locally.

b. Description of O&M activities

In case there is no foul flush device, the user or caretaker has to divert away the first 20 litres or so of every rainstorm. Fully automatic foul flush devices are often not very reliable. Water is taken from the storage tank by tapping, pumping, or using a bucket and rope. For reasons of hygiene, the first two methods are preferred. Just before the start of the rainy season, the complete system has to be checked for holes and broken parts and repaired if necessary. Taps or handpumps have to be serviced. During the rainy season the system is checked regularly, and cleaned when dirty and after every dry period of more than a month. Filters should be cleaned every few months, filter sand should be washed at least every six months, and the outside of metal tanks may be painted about once a year. Leaks have to be repaired throughout the year, especially leaking tanks and taps, as they present health risks. Chlorination of the water may be necessary. All operation and maintenance activities can normally be executed by the users of the system. Major repairs, such as a broken roof or tank, can usually be executed by a local craftsman using locally available tools and materials. Maintenance is simple but should be given ample attention.

Organizational aspects

The organization of O&M of communally shared roof or ground tank supplies is considerably more difficult than for privately owned systems. Rooftop harvesting systems at schools, for instance, may suffer water losses from a tap left dripping, and padlocks are often needed to ensure careful control over the supply. Ideally, one person should be responsible for overseeing the regular cleaning and occasional repair of the system, control of water use, etc. Selling the water is an option to ensure income for O&M and to restrict water use. Where several households have installed a communal system, e.g. where several roofs are connected to one tank, the users may want to establish a water committee to manage O&M activities, which may include collection of fees, control of the caretaker’ s work, and control of water use by each family. External agents can play an important role in monitoring the condition of the system and the water quality, in providing access to credit facilities to buy or replace a system, in training of users/caretakers for management and execution of O&M, and training of local craftsmen for larger repairs.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean the system	1 - 3 times per year	Local	Chlorine	Broom, brush, bucket
Divert foul flush	Every storm	Local
Clean the filters	Twice a year	Local	Sand, charcoal, plastic mesh
Disinfect the reservoir	Occasionally	Local	Chlorine	Bucket
Repair roof, gutters and piping	Occasionally	Local	Tiles, metal sheet, asbestos cement sheet etc., bamboo or PVC pipes, nails, wire	Hammer, saw, pliers, tin cutter
Repair tap or pump	Occasionally	Local or area	Washers, cupseals etc.	Spanner, screwdriver
Paint outside of metal reservoir	Annually	Local	Anticorrosive paint	Steelbrush, paintbrush
Repair ferrocement reservoir	Occasionally	Local	Cement, sand, gravel, metal mesh, wire	Trowel, bucket, pliers

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Close taps after taking water, keep the system clean	No special skills
Caretaker	Check functioning, divert first flush, clean the filters and rest of the system, perform small repairs	Basic skills
Water committee	Supervise caretaker, collect fees	Organizational skills
Local craftsman	Repair roof, piping and tank	Basic plumbing and masonry
External support	Check water quality, stimulate and guide local organization, train the users	Microbial analysis, extension work

e. Recurrent costs

Recurrent costs for materials and spare parts are very low. In most cases these costs are even considered negligible. However, the recurrent costs for personnel - in cash or kind (for caretakers, committee members and craftsmen) will need to be added.

f. Problems, limitations and remarks

Frequent problems. Corrosion of metal roofs, gutters, etc. Failure of functioning of the foul flush devices due to neglect of maintenance. Leaking taps at the reservoir and problems with handpumps. Contamination of uncovered tanks, especially where water is abstracted with a rope and bucket. Tanks may provide a breeding place for mosquitos, which may increase the risk of diseases like malaria.

Limitations. The water may be insufficient to fulfil the drinking-water needs at certain times in the year, making it necessary to develop other sources or go back to traditional sources during these periods. The investment needed for the construction of a tank and suitable roofing is often beyond the financial capacity of households or communities.

Remarks. Tiled or metal roofs give the cleanest water. Thatched roofs yield less water which is more contaminated. The acceptance of rooftop water harvesting as a suitable system may depend on the users’ views on the water’ s taste.

Spring water captation

a. Brief description of technology

Spring water captation systems abduct and protect groundwater flows at the points where these arrive at the surface to facilitate their abstraction. Spring water is usually fed from a sand or gravel water-bearing ground formation (aquifer), or a water flow through fissured rock. Where solid or clay layers block the underground flow of water, it is forced upward and can come to the surface. The water may emerge either in the open as a spring, or invisibly as an outflow into a river, stream, lake or the sea. The main parts of a spring water captation are a drain under the lowest natural water level, a protective structure providing stability and a seal to prevent surface water from leaking in. The drain is usually placed in a gravel pack covered with sand and may lead to a conduit or a reservoir. The protective structure may be made of concrete or masonry and the seal is usually made of puddled clay and sometimes plastic. A screened overflow pipe guarantees that the water can flow freely out of the spring at all times. To prevent contamination infiltrating from the surface, a ditch (known as the interceptor drain) diverts surface water away from the spring box and a fence keeps animals out of the spring area. There are many types of spring captations, ranging from a simple headwall with backfill to more complicated structures like tunnel systems for collecting water from a larger area.

Initial cost:	Capital costs vary considerably and depend on a large number of factors. In Nepal, a relatively large spring box serving 150 households including facilities for clothes washing was constructed for about US$ 1000 (1989 data, Rienstra 1990), including costs for unskilled labour. In Kenya, minor structures for an average of 110 persons were constructed for US$ 200, including a headwall, backfill, fencing, and labour and transportation costs. Major spring structures for an average of 350 persons cost about US$ 400, including a spring box (1986 data, Nyangeri 1986).
Dimensions:	From 0.5 m2 to many square metres.
Yield:	From many litres per second to less than 0.1 l/s.
Area of use:	In areas where groundwater arrives at the surface, usually at hillsides or mountainsides.
Construction:	Spring water captation systems are constructed on-site, often by local craftsmen.

b. Description of O&M activities

Operation

Water should be permitted to flow out freely all the time so that it will not find another way out of the aquifer. Operation may include activities such as opening or closing valves to divert the water to a reservoir, a conduit or a drain. The spring and surroundings must be kept clean.

Maintenance

Prevent contamination (e.g. from open defecation, latrines, cattle-gathering places, use of pesticides, chemicals, etc.) both in the area where the spring water infiltrates into the ground (if possible) and in the immediate surroundings of the spring. Check the surface drains, the animal-proof fence and gate, and repair if necessary. Protect from vegetative growth both in the area where the spring water infiltrates into the ground (if possible) and in the immediate surroundings of the spring (prevent clogging of the aquifer by growth of roots). Check the water flow from the spring box. If there is an increase in turbidity or flow after a rain storm, surface run-off has to be identified and the protection of the spring improved. If the water flow decreases, it has to be suspected that the collection system is clogged. It may then be necessary to take out the gravel and replace with new gravel or, in case a seep collection system is used, to clean the collection pipes. Regular water samples must be taken and analysed to check for evidence of faecal contamination. Annually, open the washout and remove all accumulated silt. Check all screens; if damaged or blocked, replace with non-rusting materials, e.g. copper or plastic screening, and clean if dirty. After cleaning, make sure to close the washout valve thoroughly and replace and seal the manhole cover. Disinfect the spring box every time a person enters to clean or repair it, or when there is bacteriological contamination. Leaks in the protective seal, undermining of the headwall, and damage caused by erosion or settlement of soil must be repaired.

Organizational aspects

In many cases, springs are communally owned. Users may need to establish an association which can effectively deal with issues such as control and supervision of water use, prevention of contamination of water, execution of O&M activities, financing of O&M, monitoring of water quality and the system’ s performance, etc. Proper management may also prevent conflicts over these and other matters. For the execution of O&M tasks at the spring site, a person who lives or farms near the site could be appointed. This person could also be made responsible for water allocation to users at or near the site, and be involved in monitoring activities. His or her authority should be clear and accepted by all users.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean well surroundings	Weekly	Local		Broom, bucket, hoe, machete
Check turbidity	After each flood	Local
Check water quantity	Occasionally	Local		Bucket, watch
Repair fence and clean surface drains	Occasionally	Local	Wood, rope, wire	Machete, axe, knife, hoe, spade, pickaxe
Check water quality	Regularly	Area	Laboratory reagents	Laboratory equipment
Wash and disinfect the spring	Annually	Local	Chlorine	Bucket, wrench, brush
Repair piping and valves	Occasionally	Local or area	Spare pipes and valves, cement, sand, gravel	Bucket, trowel, wrench, flat spanners
Repair cracks	Annually	Local	Cement, sand, gravel, clay	Bucket, trowel, hoe, spade, wheelbarrow

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Use water, report malfunctioning, keep site clean, assist in major repairs	No special skills
Caretaker	Keep site clean, check for damage, perform small repairs	Basic skills
Water committee	Organize bigger repairs, control caretaker’ s work	Organizational skills
Mason	Repair masonry or concrete	Masonry
External support	Check water quality, guide and stimulate local organization	Microbial analysis, extension work

e. Recurrent costs

Recurrent material costs are usually very low. The recurrent personnel costs, in cash or kind (for caretakers, watchmen, labourers, committee members and craftsmen), will need to be added but will also usually be low. Total recurrent costs are usually less than US$ 1 per year per capita, which often includes O&M costs for the water transport system. Several sources report that “ O&M costs are minimal and, for this reason, spring water technology is the technology of choice wherever the sites permit it.” However, problems may arise when a sudden large investment is needed for a large repair or replacement of the system.

f. Problems, limitations and remarks

Frequent problems. Erosion or collapse of the spring box due to wrong design, construction errors, large surface runoff flows, and damage caused by people or animals. Leaks in the box or leaking taps and valves. Contamination of the spring water due to cracks in the seal or to people’ s behaviour. Damaged piping because of faulty construction, abuse or corrosion. Improper drainage of surface runoff, outflow and wastewater. Clogged pipes because of siltation or plant roots. Poor accessibility for water users.

Limitations. Springs may not deliver enough water or become dry during certain seasons of the year. Not all springs produce clean water of acceptable taste. Springs may be sited too far from households or on privately owned land. In some cases, the cost of construction, large repairs or replacements may be beyond the capacity of communities. Some spring water is very corrosive.

Remarks. Usually spring water is of good quality but this should be checked; examples exist where the water was fed from a polluted stream which had gone underground or where the catchment area was contaminated. Unprotected springs are almost always contaminated at the outlet.

Drilled well

a. Brief description of technology

Drilled wells, tubewells or boreholes give access to groundwater in an aquifer and facilitate its abstraction. They differ from dug wells in the small diameter, generally varying between 0.10 m and 0.25 m for the casing, which does not allow a person to enter for cleaning or deepening. The well is usually the most expensive part of a handpump drinking-water supply project. Boreholes can be constructed by machine or by hand-operated equipment and usually consist of three main parts:

· At ground level, a concrete apron around the borehole with an outlet adapted to the water abstraction method prevents surface water from seeping down the sides of the well, provides a hard standing, and directs wastewater away from the well to a drainage channel.

· Below ground but not in the desired aquifer(s), these parts are usually lined with pipe material (mostly PVC and sometimes galvanized iron) to prevent it from collapsing, especially in unconsolidated formations. In consolidated formations, a lining may not be required.

· Below water level in the aquifer sections, the pipe material is slotted to allow groundwater to enter the well. A gravel filter layer surrounding this part facilitates groundwater movement towards the slotted pipes and, at the same time, prevents ground material from entering the well. In consolidated formations this gravel may not be required.

A proper combination of slot size, gravel filter and aquifer material, and extensive sand pumping before the well is brought into production (well development) can considerably improve long-term performance.

Initial cost:	Capital costs vary considerably and depend on a large number of factors. According to Arlosoroff et al. (1987), the initial cost for a 50 m deep hand-drilled well in the alluvial plains in South Asia could be as low as US$ 200. More recent data state that typical costs for a 50 m drilled well in India were US$ 770 and in Mozambique US$ 10 000 (Wurzel & Rooy, 1993).
Range of depth:	From a few metres to over 200 metres.
Yield:	From less than 0.3 litre to over 10 litres per second.
Expected life:	Over 25 years.
Area of use:	In areas with suitable aquifers.
Construction:	In most countries, drilled wells are constructed by public or private sector drilling companies.

b. Description of O&M activities

Operation

Operation of the well itself is usually not required. When the production capacity of the well is lower than the demand, daily monitoring of the water level may be necessary. Abstraction of the water from the well is usually done by the users, often women and children, or by a caretaker.

Maintenance

Apart from cleaning the apron daily and occasionally cleaning the drain and repairing the fence, if there is one, there are hardly any maintenance activities. Rarely, when a well has to be desilted or rehabilitated, all appliances have to be removed and a specialized company will have to come and do the job. There are various rehabilitation techniques such as forced air and water pumping, brushing, and treatment with chemicals. It is very difficult to deepen an existing drilled well.

Organizational aspects

Users may need to establish an organization that can effectively deal with issues such as the control or supervision of water use, prevention of water contamination, execution of O&M activities, financing of O&M, and monitoring of water quality. Although the number of O&M activities required is limited and they usually cost very little, they should be given ample attention, as many wells have been abandoned because they were contaminated or had collapsed as a result of lack of maintenance.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean well site	Daily	Local		Broom, bucket
Clean drain	Occasionally	Local		Hoe, spade, wheel- barrow
Repair fence	Occasionally	Local	Wood, nails, wire etc.	Saw, machete, axe, hammer, pliers, etc.
Repair apron	Annually	Local	Cement, sand, gravel	Trowel, bucket
Rehabilitate well	Very rarely	National	Gravel, pipe material etc.	Various special equipment

d. Actors implied and skills required in O&M

Actor	Role	Skills
Water user	Use water, keep site clean, assist with major maintenance tasks	No special skills
Caretaker	Monitor water use, keep site clean	Basic skills for cleaning and disinfection
Water committee	Supervise caretaker, organize major maintenance, collect fees	Organizational skills
Specialized well company	Rehabilitate the well	Very special skills
External support	Check water quality, stimulate and guide users’ organization	Microbial analysis, extension work

e. Recurrent costs

Recurrent material costs are usually low. The recurrent personnel costs, in cash or kind (for caretakers, watchmen, labourers, committee members and craftsmen), will need to be added but will also usually be low. Occasional large maintenance activities such as rehabilitation of the well may require a high investment, which may pose problems if this has to be financed by the community. The life expectancy of a good well is over twenty years but after a few years the yield may diminish drastically and rehabilitation may be necessary. In Ghana (Baumann, 1993), rehabilitation costs were estimated at US$ 750 once every ten years.

f. Problems, limitations and remarks

Frequent problems. Bad water quality or collapse due to corrosion of the galvanized iron lining, poor water inflow because of inadequately developed well, entrance of ground particles in the well because of wrong screens or wrong development, contamination due to wrong apron design or construction or neglect of maintenance, collapsing of borehole where no lining is applied or where the lining is not strong enough.

Limitations. Well construction depends on geohydrological conditions like presence, depth and yield of aquifers and presence of rock formations above them. Wells constructed at locations which are too far from the users’ households, or which are too difficult to reach, will not be sufficiently used or maintained. Wells should not be drilled near places with latrines or where cattle gather and vice versa. The usually recommended minimum distance is 30 metres, although this is no guarantee that contamination will not occur. The investment in labour, cash or kind needed for the construction of an improved dug well may be beyond the capacity of the community. It may be impossible to transport the heavy equipment and materials needed to the drilling site.

Remarks. In many cases, wells are not only used for drinking-water supply but also for irrigation. When assessing the development potential of wells with the community, it is important to place this in a wider context, including all water uses and their effect on water availability.

Rope and bucket: loose, through a pulley or on a windlass

a. Brief description of technology

Mostly used with hand-dug wells. A bucket on a rope is lowered into the water. When hitting the water, the bucket dips and fills itself and is pulled up with the rope. The rope might be held only with the hands, run through a pulley or be wound on a windlass. Sometimes animal traction is used in combination with a pulley. Improved systems use a rope through a pulley and two buckets, one on each end of the rope. For water depths of less than 10 metres, one can use a windlass with a hose running from the bottom of the bucket to a spout at the side of the well. Even with this system and a protected well, hygiene is poorer than with a bucket pump.

Initial cost:	US$ 6 for a plastic bucket and 5-metre rope to US$ 150 for a windlass, hose and closed superstructure in Liberia (Milkov 1987).
Range of depth:	0 - 15 m (greater depths are possible).
Yield:	0.25 litre per sec at 10 m.
Area of use:	All over the world, mainly in rural areas.
Construction:	Buckets, ropes, pulleys and windlasses are manufactured locally; buckets and ropes also by larger industries.

b. Description of O&M activities

Operation

Lower and raise the bucket by paying out and pulling in the rope or rotating the windlass. One must be careful not to dirty the rope or bucket.

Maintenance

Preventive maintenance consists of greasing the bearings of the windlass or pulley. Small repairs are limited to patching of holes in bucket and hose, reconnecting the bucket hinge and fixing the windlass bearings or handle. All repairs can be done by local people and with tools and materials available in the community or area. Other repairs and replacements mainly consist of replacing a bucket, hose, rope or part or all of the windlass. Woven nylon ropes may last two years, twined nylon or sisal ropes only last a couple of months. A good quality hose may last over two years and buckets, depending on material and quality, may last a year.

Organizational aspects

When people use their own rope and bucket, no extra organization is required. For community wells, usually a committee organizes the maintenance and cleaning of the well, maintenance of the windlass, etc. Most repairs can be paid with ad hoc fund-raising.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Grease axles of windlass or pulley	Every two weeks	Local	Grease or oil	Lubricator
Replace bucket	Each year	Local	Bucket, wire	Knife
Replace rope	Every two years	Local	Rope, wire	Knife
Replace hose	Every two years	Local	Hose, wire, rubber straps from tyres	Knife, tongs

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Lower and lift the bucket Keep site clean Warn in case of malfunctioning	No special skills
Caretaker	Keep site clean, do small repairs	Basic maintenance
Water committee	Organize well cleaning, collect fees	Organizing skills
Local artisan	Repair of bucket, windlass, well cover, etc.	Tinkering, carpentry
Shopkeeper/trader	Sale of rope, bucket, etc.	No special skills
External support	Check water quality, stimulate and guide local organization	Microbial analysis, extension work

e. Recurrent costs

These consist in occasional purchase of rope, bucket, hose, wire, etc. Occasional windlass repair costs are low. Annual per capita costs for rope and bucket in Upper Volta were reported to range from US$ 0.56 to 1.36 (Hofkes, 1983). These costs varied with the depth of the well and family size.

f. Problems and limitations

Frequent problems. Fast deterioration of bad quality rope. Sisal rope only lasts for a few months. Bucket falls into the well. To prevent this, communities can keep a spare bucket available and fit the bucket in a protective cage, for instance like the design described by D. Carty (1990). In windlass with hose systems the hose breaks frequently.

Limitations. Very poor hygiene, especially when the rope and bucket touch the hands or ground. Communal wells often tend to get more contaminated than family-owned wells. Therefore the latter should be aimed for where possible. Only suitable for limited depths, although examples are known of rope and bucket systems exceeding 50 metres.

Direct-action handpump

a. Brief description of technology

Direct-action handpumps are usually made of PVC and other plastics and installed on boreholes of limited depth. The user at the pumpstand directly moves the pump rod in an up-and-down motion, holding a T-bar handle. The plunger at the lower end of the pump rod is located under the groundwater level. On the up-stroke, the plunger lifts water into the rising main and replacement water is drawn into the cylinder through the foot valve.

On the down-stroke, the foot valve closes, and water passes the plunger to be lifted on the next up-stroke. The elimination of the mechanical advantage (which, for example, deep-well handpumps have through a lever or flywheel) restricts the application of direct-action pumps to the depth from which an individual can physically lift the column of water (about 12 m). The mechanical simplicity and the potential for low-cost, lightweight construction makes these pumps well equipped to meet VLOM (Village Level Operation and Maintenance) objectives.

Initial cost:	Varying from about US$ 100 to over US$ 900 (1985 prices, Arlosoroff et al., 1987). Models that are particularly suitable for village level O&M cost less than US$ 150.
Range of depth:	0- 12 metres.
Yield:	0.25- 0.42 litre per sec at 12 m.
Area of use:	Rural and low-income peri-urban areas where groundwater tables are within 12 m from the surface.
Construction:	Blair, Ethiopia BP50, Malawi Mark V, Nira AF85, Tara, Wavin.

b. Description of O&M activities

Operation

The pump is operated by moving the handle up and down. As the plunger is located under water, no priming is needed. Adults and even children can pump, although if the water table is more than 5 metres it may be difficult for children. Pumpstand and site must be kept clean.

Maintenance

Maintenance of direct-action pumps is relatively simple and can be taught to users or caretakers, sometimes within a few hours. For preventive maintenance, usually only one or two persons are needed. Activities consist in checking pump performance and appearance of the water daily (if the water is cloudy with silt, the borehole must be cleaned). The pump should be taken apart and checked annually. Small repairs are the replacement of worn cupseals and washers, straightening of bent pump rods, and replacement of corroded lock nuts. For major repairs (e.g. broken pump rod or rising main, cracks in welding of metal parts), more highly skilled persons may be needed.

Organizational aspects

O&M can very well be organized at community level. As maintenance is relatively simple, good organization will result in a reliable service.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean pump and site	Daily	Local		Broom
Check performance	Daily	Local
Check whole pump	Annually	Local		Spanners, screwdriver
Replace cupseals and washers	Occasionally	Local	Cupseals, washers	Spanners, screwdriver
Replace pump rod and/or pump handle	Occasionally	Local	Pump rod, pump handle	Spanners, wrench
Replace cylinder and/or plunger and/or foot valve	Occasionally	Local or area	Cylinder, plunger, foot valve	Spanners, wrench, screwdriver
Repair rising mains	Occasionally	Local or area	PVC tubing, PVC solvent and sandpaper or galvanized iron tubing, teflon or hemp	Saw and file or two pipe wrenches
Repair pump platform	Annually	Local	Cement, sand, gravel	Bucket, trowel

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Pump water Keep site clean Warn in case of malfunctioning	No special skills required
Caretaker	Keep site clean Do small repairs Check pump annually	Basic maintenance skills
Water committee	Organize maintenance collect fees	Basic organizational skills
Local merchant	Sell spare parts	No special skills
Local or area mechanic	Perform more major repairs	Welding
External support	Check water quality Stimulate and guide local organization	Microbial analysis, extension work

e. Recurrent costs

Apart from personnel costs, recurrent costs mainly consist in expenses for spare parts. In Ghana the annual costs recently were found to be US$ 3.35 per capita per year or US$ 0.61 per m³, based on 15 litres/capita/day, including capital amortization and other costs at an interest rate of 10% (Baumann 1993a). According to Reynolds (1992), a Tara handpump can be sustained for about US$ 0.10 per user per year.

f. Problems, limitations and remarks

Frequent problems. Worn washers, plungers and footvalve parts. Abrasion of the seal on the PVC cylinder and between the pump rod and rising main (nitrile rubber seals have proven substantially better). Broken or damaged handles.

Limitations. The maximum lift is limited to about 12 m. The forces required at the handle to pump the water may be too high for children, especially when the water table is deeper than 5 m.

Remarks. At least a moderate industrial base is recommended for manufacturing these pumps, because good quality PVC is needed. Some designs have a relatively low discharge (Peter. 1990).

Deep-well piston handpump

a. Brief description of technology

In a deep-well piston handpump, the piston is placed in a cylinder below the water level which is usually in the range of 15 to 45 metres below the ground. The pumping motion by the user at the pumpstand is transferred to the piston by means of a series of connected pumping rods inside the rising main. On the up-stroke, the plunger lifts water into the rising main and replacement water is drawn into the cylinder through the footvalve. On the down-stroke, the footvalve closes, and water passes the plunger to be lifted on the next up-stroke. The pumping height is limited only by the effort needed to lift water to the surface. Nowadays most cylinders have an open top, which allows the piston and footvalve to be removed through the rising main for servicing and repairs while the rising main and cylinder can stay in place. The pump rods have special connectors allowing for assembly and dismantling with no or only very simple tools. The joints incorporate pump rod centralizers that prevent wear of the rising main. To a large extent improved models can be maintained at village level.

Initial cost:	For well depths of 25- 35 m, prices vary from about US$ 40 for a cylinder, plunger and footvalve set, to be installed under a locally made pump head, to over US$ 2300 for a complete pump with many stainless steel parts (1985 prices, Arlosoroff et al.). Most good pumps cost US$ 300- 500.
Range of depth:	15- 45 metres, depths up to about 100 m are possible
Yield:	0.25- 0.36 litre per sec at 25 m and 0.18- 0.28 litre per sec at 45 m depth
Useful life:	6 to 12 years
Area of use:	Rural and low-income peri-urban areas where groundwater tables are within 100 m, but preferably within 45 m from the surface
Construction:	Afridev/Aquadev, Bestobell Micro, Bush pump, Blair pump, India Mark II and III, Kardia, Tropic (Duba), UPM, Volanta, etc.

b. Description of O&M activities

Operation

Operation of the pump is done by moving a handle up and down or by rotating the handle of a flywheel. This can be done by adults and even children. Handle forces are usually kept within acceptable limits (depending on brand and lifting heights). Pump and site must be kept clean.

Maintenance

Preventive maintenance usually consists in checking pump functioning and cleaning the pump and site daily, greasing weekly, checking all parts of the pump stand monthly, and taking the whole pump apart for a check, cleaning the parts with clean water and painting the pump stand annually. Pump rods that show bad corrosion must be replaced. Under normal conditions, a galvanized steel pump rod needs replacement every five to six years. Rising mains consisting of galvanized iron have to be removed and checked and pipes with badly corroded threads must be replaced. Small repairs are the replacement of bearings, cupseals and washers, straightening bent pumping rods, etc. Major repairs may involve the replacement of the plunger, footvalve, cylinder, pump rods, rising main, pump handle, fulcrum, etc. With open-top cylinder pumps, all preventive maintenance activities can normally be executed by a village pump caretaker. For major repairs and problems, external support may be needed. Closed-top cylinder pumps often need special lifting equipment to pull up the rising main and cylinder for maintenance of parts down in the hole.

Organizational aspects

Most deep well pumps are too expensive for family use and will have to be used at communal level. The price of these pumps also means extra effort in fund-raising. Communities have to organize themselves in order to maintain the pump in good working condition. Often a caretaker is appointed and a pump committee coordinates activities. External support is often provided by state or nongovernmental organizations but becomes costly. In some cases small private enterprises, paid directly by the communities, are now doing this job very satisfactorily.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean pump and site	Daily	Local		Broom, brush
Grease bearings	Weekly	Local	Grease or oil	Lubricator
Check pump stand parts	Monthly	Local		Spanner
Replace pump stand parts	Occasionally	Local	Nuts and bolts, bearings, pump handle	Spanners, screw- driver
Replace cupseals	Annually or less	Local or area	Cupseals	Spanners, wrench, knife, screwdriver etc.
Redo threads in pump rod or main	Occasionally	Local or area	Oil	Pipe threader, tackle
Replace footvalve, plunger or cylinder	Occasionally	Area	Footvalve, plunger or cylinder	Spanners, wrench
Replace pump rod or main	Occasionally	Area	Pump rods or main tubing	Spanners, wrench, pipe threader
Repair platform	Annually	Local	Gravel sand, cement	Bucket, trowel

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Pump water Keep site clean Warn in case of malfunctioning	No special skills
Caretaker	Keep site clean Regularly check pump Do small repairs	Basic maintenance
Water committee	Supervise caretaker Collect fees	Organizing skills
Area mechanic	Perform more major repairs	Some special skills, depending on brand
External support	Check water quality, stimulate and guide local organization	Microbial analysis, extension work

e. Recurrent costs

The costs for preventive maintenance may range between US$ 12 and US$ 60 per pump per year for spare parts and materials (based on price indications from several brands). The recurrent personnel costs, in cash or kind (for caretakers, committee members, and, in case larger repairs are needed, mechanics or other skilled people), will need to be added.

f. Problems, limitations and remarks

Frequent problems. Replacement of plunger seals is the most common repair needed. Problems with local manufacture, centring mostly around quality control, are often reported, especially in African countries. Hook and eye connections of pump rods tend to break more often than conventional connections. Rods also reportedly get disconnected or bend spontaneously sometimes. Especially where groundwater is corrosive, corrosion has been reported to affect the pump rods (if not made of stainless steel), the rising main (if galvanized iron), the cylinder, and the pump head bearing housing and other pump stand parts. Broken or shaky handles, mainly due to worn-out or otherwise affected bearings.

Limitations. The maximum lift differs by brand, varying between about 45 and 100 metres. The forces required to turn the handle of the pump may be high in certain cases, depending on the brand and on the depth of the well.

Remarks. The quality of the material used for the rising main should be as high as possible to reduce the number of repairs needed on this part. Many of these pumps can be produced in developing countries. Rigorous quality control is needed. Piston pumps may be driven by a windmill but often rotary pumps are preferred because of their lower starting torque.

Diesel engine

a. Brief description of technology

Diesel engines are very often used as a stationary power source. The main parts of the engine are the cylinders, pistons, valves, and crankshaft. The number of cylinders may vary from one to more than six. When air is heavily compressed by a piston inside a cylinder and diesel fuel is injected to it, this mixture comes to a controlled explosion that moves the piston. This movement is transferred to the crankshaft and from there it can be put to use, for example to drive a pump or an electricity generator. Valves in the cylinder regulate the inflow of fuel and air and the outflow of exhaust gasses. A high pressure pump forces the diesel fuel into the cylinder at the right moment. Diesel engines differ from petrol engines in that they use a different fuel, do not have spark ignition plugs and work at much higher pressures. Efficiency of diesel engines is higher and they need less maintenance than petrol engines. Engines can differ in size, speed (revolutions per minute), cycle (two-stroke and four-stroke cycles), cooling system (water or air), etc. Generally, low-speed four-stroke engines last longer and high speed two-stroke engines produce more power per kg of engine weight. Water-cooled engines generally need less maintenance than air-cooled engines.

Initial cost:	From US$ 200 per kW for 25 kW engines to US$ 600 per kW for 2 kW engines (1990 data, McGowan and Hodgkin, 1992); installation and other costs not included.
Range of power:	Commonly starting at 2 kW
Life cycle:	Average 20 000 hours of operation ranging from less than 5000 to 50 000 hours, depending on the quality of the engine, installation and O&M.
Area of use:	All over the world, especially for high-power needs and where no grid electricity is available.
Trademarks:	Kubota, Lister-Petter, Lambardini and many others.

b. Description of O&M activities

Operation

The engine must be operated by a trained caretaker. Every engine has its own typical operating instructions. Before starting it, the levels of fuel, oil and cooling water (if not air-cooled) are checked. If these levels are low, extra fuel, oil or water has to be added. During operation, the fuel level, oil pressure, and engine speed are checked and also the functioning of the pump or generator. Some moving parts may need manual lubrication. When the engine is operated at very low speeds, its efficiency is low and carbon builds up rapidly in the engine, increasing the need for servicing. All data on liquid levels and running hours are written down in a log book.

Maintenance

Every day the outside of the engine must be cleaned, and in dusty conditions the air filter must be checked and cleaned. Some parts may need manual lubrication. In moderately dusty conditions, oil-bath air filters are cleaned once a week, dry-paper air filters a little less frequently. The engine is serviced for preventive maintenance according to the number of hours it has run. Every 50 hours, the clutch (if present) must be greased. Every 250 hours, clean all filters (replace if necessary), change oil, check nuts and bolts and exhaust pipe. Every 1500 hours, major service overhaul with decarbonizing, adjusting valve clearance, etc. If the engine is connected to a pump or generator with a V-belt, this will regularly need replacement. Once a year the engine house must be painted and occasionally repaired. If a generator is present it will have its own maintenance needs. The Table below shows only the most important O&M activities.

Organizational aspects

Diesel engines require a lot of simple maintenance and, if this is done well, they can have a long service life. Therefore training and supervision of the caretaker are important. More complicated maintenance tasks and repairs have to be done by a well-trained mechanic with access to sufficient spare parts. Good organization will guarantee scheduled services at the right times and a quick response in case of breakdown.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Check liquid levels and add if necessary	Daily	Local	Fuel, engine oil, cooling liquid	Funnels, containers for liquids
Start and stop engine	Daily	Local
Keep logbook	Daily	Local	Paper, pen
Check air filter, clean or replace if necessary	Daily or weekly	Local	New dry paper filter, or kerosene and engine oil	Wrench
Check for oil and fuel leaks	Weekly	Local
Tighten nuts and bolts	Weekly	Local		Spanners
Change engine oil	Every 250 hours	Local	Engine oil	Spanners
Clean or replace filters	Regularly	Local	Oil filter, fuel filter	Spanners, special tools
Decarbonize, clean injector nozzles, adjust valves, etc.	Every 500 to 2000 hours	Specialist		Spanners, brass wire brush, special tools
Replace drive belt	Regularly	Local	Drive belt	Spanners
Replace engine parts	Occasionally	Specialist	Nozzles, injectors, gaskets, bearings, fuel pump, etc.	Depending on part to be replaced
Repair engine mounting and housing	Occasionally	Local or area	Cement, sand, gravel, nuts and bolts, nails, galvanized corrugated iron sheets, wood, etc.	Trowel, bucket, hammer, chisel, saw, spanners, etc.

d. Actors implied and skills required in O&M

Actor	Role	Skills
Caretaker	Operate engine, keep logbook, perform minor service, warn in case of irregularities	Special training is needed for basic diesel O&M
Water committee	Supervise caretaker, collect fees, organize major service and repairs	Organizational skills
Area mechanic	Perform major service and repairs	Special training needed
External support	Train caretaker and area mechanics	Training and technical skills

e. Recurrent costs

Where fuel and spare parts are scarce, the costs for these may amount to 50% of the annual system capital cost (McGowan and Hodgkin, 1992).

f. Problems, limitations and remarks

Frequent problems. Excessive wear due to wrong O&M, neglect or misunderstanding. Rapid carbon buildup and low efficiency due to running the engine under full loading. Broken drive belts.

Limitations. Frequent maintenance. High fuel costs and difficulty to get fuel. From time to time a specialist mechanic is needed for service and repairs.

Remarks. Diesel engines are especially suited for high stationary power output. With good maintenance they are dependable energy sources. It is very important to select a brand of good reputation and locally available service and spare parts.

Chlorination in piped water supply systems

a. Brief description of technology

Chlorination is a chemical method for disinfecting water which kills nearly all pathogens and provides a barrier against reinfection. It can be applied as the last stage in a drinking-water treatment process or as the only measure when the water quality is already reasonably good. The most frequently used low technology methods are batch chlorination and flow chlorination.

For batch chlorination a concentrated chlorine solution is added to the water in a reservoir with inlets and outlets closed. The water is stirred and the chlorine is left to react for at least 30 minutes. After that, the outlets can be opened. When the reservoir is empty the outlets are closed, the reservoir is refilled and a new batch is disinfected. This method will not be discussed further in this fact sheet.

Flow chlorinators continuously feed small quantities of weakly concentrated chlorine solution to a flow of fresh water, often at the instream of a clear water reservoir. Usually a small reservoir containing the chlorine solution is placed on top of the water reservoir and the solution is administered close to the point where the fresh water comes in and turbulence guarantees good mixing. A special device like the floating bowl chlorinator enables precise dosage. Sometimes a special electric pump is used for this purpose. For on-site chlorine production, electrical devices can be bought that convert a solution of kitchen salt to a chlorine solution (Oliveira, Tavares and Meyers, 1995).

Chlorine doses must be monitored and adjusted to the water quality and quantity. For this purpose, small test kits are available. Chlorine-producing chemicals must be stored and prepared with care.

Initial cost:	A chlorinator and hoses can cost as little as US$ 15. This excludes the cost of the tank for the concentrated solution and the construction costs of a protective shelter.
Yield:	Generally 350 to 1400 m3 of treated water per kg of 70% chlorine compound.
Area of use:	Where drinking-water needs extra disinfection and chlorine is available.
Trademarks:	Chlorine compounds have many trademarks.

b. Description of O&M activities

Operation

The chlorine tank has to be refilled with a freshly prepared solution once or twice a week. The flow rate has to be checked and adjusted if necessary. Operators must be very careful to avoid contact of chlorine compounds or solutions with eyes or clothes. In some cases, a logbook is kept with data on the amounts of chlorine applied and residual chlorine levels measured. Chlorination can easily be learnt.

Maintenance

Chlorinators regularly have to be adjusted and cleaned of chlorine salts. When hoses get affected by chlorine they have to be replaced. If a steel chlorine tank is used, it must be painted and checked for corrosion annually. Protective gloves and utensils used for the preparation of the chlorine solution occasionally need replacement, and the shelter of the chlorine solution tank needs maintenance.

Organizational aspects

Usually the water committee appoints a caretaker who is trained for the job. The chlorine compound has to be obtained through a merchant or the health department and an adequate supply of chlorine compound must be kept in stock. An external organization like a governmental health or water department will have to provide training for caretakers and monitoring.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Refill chlorine tank	Once or twice a week	Local	Chlorine compound, water	Spoon, scale, bucket, stirring rod
Adjust and clean chlorinator	Regularly	Local	Water	Measuring cup, stopwatch
Replace hose or chlorinator	Occasionally	Local	Hose, small tubes of plastic, glass etc., plug, bowl	Knife, nail
Paint steel tank	Annually	Local	Latex paint	Steel brush, paint brush
Check and adjust doses	Regularly	Area	Test medium, water sample	Test kit

d. Actors implied and skills required in O&M

Actor	Role	Skills
Caretaker	Refill chlorine tank and prepare solution, clean and adjust chlorinator, perform small repairs	Basic skills
Water committee	Supervise caretaker, collect fees	Organizational skills
Local health worker, shopkeeper or merchant	Provide or sell chlorine compound	No special skills
External support	Check residual chlorine in water and adjust doses, train caretaker	Basic testing and calculation, training skills

e. Recurrent costs

Recurrent costs for chlorine-producing chemicals in the USA are about US$ 7 per kg of available chlorine. In other countries this figure may differ substantially. One kg of available chlorine (1.4 to 4 kg of compound) is needed for disinfection of 500- 2000 m³ of water. Cost of rubber gloves, hoses and other spare parts is generally low. Apart from this, there will be recurrent costs for the caretaker’ s fee, monitoring and training.

f. Problems, limitations and remarks

Frequent problems. Bad quality hoses wear quickly. Some chlorine compounds are very sensitive to storage conditions and rapidly lose strength. If the chlorinator gets clogged or residual chlorine is not monitored, disinfection may not be sufficient.

Limitations. Chlorination does not kill all pathogenic organisms but is generally very effective. In alkaline water, pH above 8, chlorination is less effective. When the water contains a lot of organic matter or suspended material, pretreatment will be needed. High cost and unavailability of the chlorine compound can be serious limitations.

Remarks. Chlorination affects the taste of water and for that reason may be rejected by consumers. On the other hand, sometimes a chlorine taste is appreciated. The taste of chlorine in water is no proof of proper disinfection. Often a chlorine taste is caused by the application of too little chlorine.

Slow sand filtration

a. Brief description of technology

Slow sand filter water purification is a combination of biological, chemical and physical processes occurring when water slowly passes downwards through a bed of sand. Fine particles are filtered out, and in the sand and on top of the filterbed a population of micro-organisms develops which feed on bacteria, viruses and organic matter in the water. The filter reservoirs have drains on the bottom, covered with gravel and the filter sand. An inlet provides for smooth entrance of the raw water and an outlet structure leads the clean water from the drains to the clean water mains. During operation the filter sand is covered with a water layer of 0.3 to 1.0 m. For good functioning there must be a continuous flow in the range of 0.1 to 0.3 m/hour. For community use, filter reservoirs can be made of concrete, bricks, ferrocement etc. At least two filters are needed to provide continuous operation.

It is recommended to combine slow sand filters with a dynamic roughing filter pretreatment unit. When raw water quality is low, adding upflow roughing filters is recommended. Sometimes the water is chlorinated afterwards to prevent recontamination. For small-scale application, see also the fact sheet on household slow sand filter. With good operation and maintenance a slow sand filter produces water virtually free from harmful organisms.

Initial cost:	Data from rural India, in 1983, indicated US$ 60- 130 per m2 of filter area. In Colombia, this was US$ 105 215 per m2 in 1987.
Yield:	0.1- 0.3 m/hour or 0.028- 0.083 litres per sec per m2.
Area of use:	All over the world.
Manufacturers:	Slow sand filters can be built by experienced building contractors or even by communities, with external technical assistance.

b. Description of O&M activities

Operation

Operation of a slow sand filter is crucial to its effectiveness. The flow of water must be maintained in the range of 0.1 0.3 m per hour to provide the organisms in the filter with a stable flow of nutrients and oxygen and give them time to purify the water. After several weeks to a few months the population of micro-organisms gets too dense and starts to clog the filter. Depending on the filter design, flow rates may have to be adjusted accordingly or the layer of supernatant water on the filter will get too high. The caretaker of a slow sand filter keeps a logbook with flow rates and operation and maintenance activities. Slow sand filters can be operated and even monitored by communities, provided caretakers are trained well. It takes less than one hour a day for a caretaker to check the functioning and adjust the flow rates. Cleaning the site and other activities may take more time.

Maintenance

When flow velocities get too low the filter is drained and the top layer of the sand is scraped off, washed, dried in the sun and stored. After several scrapings the sand is restored, together with new sand to make up for losses during washing. It takes one day for several people to clean a filter unit. Hygienic measures must be taken every time someone enters a filter unit for maintenance or inspection. Valves must be opened and closed every two months to keep them from getting stuck. Any leaks must be repaired immediately. If well-designed and constructed, hardly any repairs of the filter tanks and drainage system will be needed, although valves and metal tubing may need occasional attention. Test kits are available which only require some basic training to monitor water quality.

Organizational aspects

A slow sand filter for community use requires some organization in order to have enough workers for scraping and resanding the filter units. A local caretaker will have to be trained and some other people may need training for water quality testing and to be able to replace the caretaker. It may take some time for people to get to trust that a green and slimy filter is capable of producing safe water. Apart from extra sand, some chlorine and test materials very few external inputs are needed. With proper external assistance, water organizations can become very independent in managing their water treatment.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Check inflow	Daily	Local
Regulate flow	Daily	Local
Keep logbook	Daily	Local	Logbook, pen
Clean site	Daily	Local	Broom
Scrape off sand, wash, dry and store	About every six weeks	Local	Water, disinfectant for tools, boots or feet	Wheelbarrow, hoe, rake, spade, rope, bucket, ladder, planks, broom, wash basin
Resand filter	About every 18 months	Local	Recycled and new sand, water, disinfectant for tools, boots or feet	Sieve, wheelbarrow, hoe, rake, spade, rope, bucket, ladder, planks
Repair valve	Occasionally	Local	Washers, spare valve	Spanners, screwdriver, wrench
Replace metal tubing	Occasionally	Local or area	Nipples and accessories, plumbing sealant or teflon, cement, sand	Steel saw, wrench, pipe threader, hammer, chisel, trowel, bucket
Disinfect filter outlets	Occasionally	Local	Chlorine	Bucket, brush
Analyse water quality	Regularly	Local or area	Water sample, test media	Test kit

d. Actors implied and skills required in O&M

Actor	Role	Skills
Local caretaker	Regulate flow, keep site clean, scraping and resanding	Fair understanding of filter process and hygiene, organizational skills
Water user or paid worker	Assist in scraping and resanding of filter units	No special skills
Water committee	Supervise caretaker, monitor water quality, collect fees, organize scraping and resanding	Organizational skills, basic water quality testing
Local plumber	Repair valves and piping	Basic plumbing
External support	Train caretaker, monitor water quality	Training and microbial testing skills

e. Recurrent costs

The caretaker’ s fee and the cost of additional sand are the main recurrent costs, assuming that the users occasionally do some of the work free of charge.

f. Problems, limitations and remarks

Frequent problems. If flow rates through the filter are too high, water quality drops. Excessive turbidity (>30 NTU) in the raw water can cause the filter to clog rapidly; in this case a prefilter may be needed. When water quality is very bad, may be formed in the lower layers of the filter. If water flow is harmful and badly tasting products like NH₃ and H₂NO₃ interrupted for more than a few hours, beneficial micro-organisms in the filter may die and filter action is disturbed. Smooth vertical surfaces can cause short circuits in the water flow, producing poor quality water.

Limitations. In some regions, sand is expensive or difficult to get. Slow sand filters require a substantial initial investment and dedicated operation and maintenance.

Remarks. After re-sanding a filter it takes a few days to ripen; in this period water quality is lower.

Public standpost

a. Brief description of technology

At a public standpost or tapstand people from several households can take water from one or more taps. Because they are used by many people and are often not so well taken care of, their design and construction must be sturdy compared with domestic connections. The standpost includes a service connection to the supplying water conduit, a supporting column or wall, and one or more 0.5-inch (or 1.25-cm) taps protruding far enough from this column or wall to enable easy filling of the water containers.

The taps can be a globe or a self-closing type. The column or wall may be of wood, brickwork, dry stone masonry, concrete, etc. Some standposts have a regulating valve in the connection to the mains, which can be set and locked to limit maximum flow. A water meter may also be included. A solid stone or concrete slab or apron under the tap and a drainage system must lead spilled water away and prevent the formation of muddy pools. A fence may be needed to keep cattle away. The residual pressure head of the water at the tapstand should preferably be between 10 and 30 metres and should never be under 7 or over 56 metres. The location and design of public standposts have to be determined in close collaboration with the future users.

Initial cost:	In 1995, the cost of a self-closing tap for 0.5 to 1-inch pipes was US$ 12 (UNDP/APSO, 1995). Cheaper taps can be found. Other costs depend largely on the standpost design.
Number of taps:	Usually 1 to 3, or more.
Users per tap:	Maximum 200 people.
Yield:	0.2- 0.4 litres per sec per tap.
Area of use:	Piped public water systems.

b. Description of O&M activities

Operation

Users clean and fill their containers at the tap. Bathing and washing of clothes is usually not permitted at the standpost itself. The tap site has to be cleaned daily and the drain inspected.

Maintenance

The drain must be cleaned at least once a month. Formation of pools must be prevented at all times. Occasionally, a rubber washer or other part of a tap may have to be replaced. The fence may need repair too. Serious cracks in the structure must also be repaired, and when wood rots it must be treated or replaced. Occasionally the tubing may leak or need replacement.

Organizational aspects

A caretaker or tap committee may be appointed to keep the tap functioning and the surroundings clean, and to regulate the amounts of water used. The committee may also collect the fees for water use. Sometimes water vendors fill their tanks at public tapstands at special rates for resale to people living far away.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Tap water	Daily	Local		Jar, bucket, can, etc.
Clean site	Daily	Local		Broom or brush
Inspect and clean drain	Daily	Local		Hoe, spade
Repair or replace valve	Occasionally	Local	Rubber or leather washer, gland seal, Teflon, flax, spare valve	Spanners, screwdriver, pipe wrench
Repair fence	Occasionally	Local	Wood, steel wire, nails	Machete, pliers, hammer
Repair valve stand, apron or drain	Occasionally	Local	Wood, nails, cement, sand, water, etc.	Hammer, saw, trowel, bucket, etc.
Repair piping	Occasionally	Local	Pipe nipples, connectors, elbows etc., oil, Teflon, flax or plumbing putty	Pipe wrench, pipe cutter, saw, file, pipe threader

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Tap water, keep site clean	No special skills
Caretaker or tap committee	Clean site, perform small repairs, collect fees	Basic skills
Communal water committee	Organize more major repairs, collect fees	Organizing and bookkeeping skills
Mason	Repair tapstand and apron	Masonry
Plumber	Repair piping and taps	Basic plumbing
External support	Monitor hygiene, train committee members	Training skills and microbial testing

e. Recurrent costs

Recurrent costs for a tapstand comprise a few minor repairs to the taps every year and occasional repairs to the pipes, column, wall, apron or drain.

f. Problems, limitations and remarks

Frequent problems. Tampering, insufficient maintenance, and conflicts over use due to bad location of tapstand or unsolved social problems. Poor drainage. Often taps are not closed after use and even left open on purpose to irrigate a nearby plot. Tapstands at the tail end of a piped system often have insufficient water pressure.

Limitations. If people are willing to organize communal use and maintenance, the only limitation is the cost.

Remarks. Special attention should be given to how the water is handled after collection at the tapstand in order to prevent subsequent contamination.

O&M FACT SHEET

Ventilated improved pit latrine

a. Brief description of technology

Ventilated improved pit (VIP) latrines are designed to reduce two problems frequently encountered by traditional latrine systems - smells and flies or other insects. A VIP latrine differs from a traditional latrine in having a vent pipe covered with a fly screen. Wind blowing across the top of the vent pipe creates a flow of air which sucks out the foul-smelling gases from the pit. As a result, fresh air is drawn into the pit through the drop hole and the superstructure is kept free from smells. The vent pipe also has an important role to play in fly control. Flies are attracted to light and if the latrine is suitably dark inside, they will fly up the vent pipe to the light. They cannot escape because of the fly screen, so they are trapped at the top of the pipe until they dehydrate and die. Female flies, searching for an egg-laying site, are attracted by the odours from the vent pipe but are prevented from flying down the pipe by the fly screen at its top.

VIP latrines can also be constructed with a double pit. The latrine has two shallow pits, each with its own vent pipe but only one superstructure. The cover slab has two drop holes, one over each pit. Only one pit is used at a time. When this becomes full, its drop hole is covered and the second pit is used. After a period of at least one year, the contents of the first pit can be removed safely and used as soil conditioner. The pit can be used again when the second pit has filled up. This alternating cycle can be repeated indefinitely.

Initial cost:	Single-pit VIP family latrine: about US$ 70- 400. Double-pit VIP family latrine: about US$ 200- 600. Prices include the cost of materials (60 80%), transport (5- 30%), and local labour (10- 25%). Prices depend on the pit volume; quality of the lining, slab and superstructure; extent to which locally available materials are used; and the country or region.
Area of use:	Rural or peri-urban areas, household and public use.

b. Description of O&M activities

Operation

Operation of pit latrines is quite simple and consists in regularly cleaning the slab with water (and a little disinfectant if available) to remove any excreta and urine. The door must always be closed so the superstructure remains dark inside. The drop hole should never be covered as this would impede the airflow. Appropriate anal cleaning materials should be available in or near the latrine. Stones, glass, plastic, rags, and other non-biodegradable materials should not be thrown in the pit as they reduce the effective volume of the pit and hinder mechanical emptying.

Maintenance

Every month the floor slab has to be checked for cracks and the vent pipe and fly screen must be inspected to ensure they are not corroded or damaged. Rainwater should drain away from the latrine. Any damage should be repaired. Repair of the superstructure (especially light leaks) may be necessary too. When the contents of the pit reach the level of 0.5 metre below the slab, a new pit has to be dug and the old pit covered with soil. Another possibility is to empty the pit mechanically. With double-pit systems, the second pit is used when the first is full. The full pit can be emptied safely by hand after a period of a year or longer and is then ready for use again.

Organizational aspects

Where latrines are used by a single household, O&M tasks are implemented by the household itself or by hired workers. If two or more households use the latrine, arrangements for rotation of cleaning tasks have to be made and agreed upon to avoid conflict. Pits can only be emptied manually if their contents have been left to decompose for at least a year. In all other cases, either new pits have to be dug when a pit is full or the pit has to be emptied mechanically. If double-pit latrines are used, the users must fully understand the concept of the system in order to be able to operate it properly. User education has to cover aspects such as the reasons for switching after using only one pit at a time, use of excreta as manure, and the need to leave the full pit for at least a year before emptying. The users also need to know how to switch pits and how to empty the pit, even when they do not do these tasks themselves. Where these tasks are carried out by privately hired labourers, the latter must also be educated in the operational requirements of the system.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean drop hole, seat and superstructure	Daily	Household	Water, soap	Brush, bucket
Inspect floor slab, vent pipe and fly screen	Monthly	Household
Clean fly screen and vent inside	Every one to six months	Household	Water	Twig or long bendable brush
Repair slab, seat, vent pipe, fly screen or superstructure	Occasionally	Household or local workers	Cement, sand, water, nails local building materials	Bucket or bowl, trowel, saw, hammer, knife
Dig new pit and transfer latrine slab and superstructure (if applicable)	Depending on size and number of users	Household or local workers	Sand, possibly cement, bricks, nails and other local building materials	Shovels, picks, buckets, hammer, saw, etc.
Switch to other pit when pit is full	Depending on size and number of users	Household or local workers		Shovels, buckets, wheelbarrow, etc.
Empty pit (if applicable)	Depending on size and number of users	By hand: household or local workers (not recommended)	By hand: water	By hand: shovel, bucket
		By mechanical means: specialized service	By mechanical means: water, spare parts for machinery	By mechanical means: pit- emptying equipment

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Use latrine, keep clean, inspect and perform small repairs, empty full pit and switch over, dig new pit and replace latrine	Understanding of hygiene
Local unskilled workers (sweepers/scavengers)	Dig pits, transfer structures, empty full pits in double-pit systems, small repairs, solving small problems	Knowledge about the concept of a double-pit system (when working with such systems), knowing how to solve simple problems.
Local mason	Build and repair or transfer latrines	Basic masonry, latrine building
Health department	Monitor latrines and hygienic behaviour of users, train users	Training skills and knowledge on sanitation

e. Recurrent costs

These costs are usually very low, maximum about US$ 1 to 2 per capita per year, as normally maintenance activities are few (mainly cleaning) and can be done by the households themselves. Even if local labour has to be hired for digging a new pit, the recurrent costs per time unit and user are low although paying in full may pose a problem. The same applies to the cost of mechanical emptying of the pit. Emptying a double VIP latrine can be done by hand, either by the household itself or by hired workers. Sometimes the humus can be sold to farmers.

f. Problems, limitations and remarks

Frequent problems. Bad quality of the floor slab due to inappropriate materials or improper curing of concrete. Inferior quality fly screens get damaged easily by the effects of solar radiation and foul gases. Improperly sited latrines can get flooded or undermined. Children may be afraid to use the latrine because of the dark or because of fear of falling into the pit. If the superstructure allows too much light to come in, flies will be attracted by the light coming through the squat hole and may fly out into the superstructure; this may jeopardize the whole VIP concept. Odour problems may occur during the night and early morning hours in latrines relying more on solar radiation for the air flow in the vent pipe than on wind speed. Leakages between pits can occur because the dividing wall is not impermeable or the soil is too permeable.

Limitations. In hard soils it may be impossible to dig a proper pit. Pits should preferably not reach groundwater level and latrines must be 15 to 30 metres away from ground and surface water sources. VIP latrines cannot prevent mosquitos from breeding in the pits. Families may not be able to bear the much higher costs for construction of a VIP latrine in comparison to a simple pit latrine.

Remarks. Cultural resistance to handling human waste may prevent some households from emptying their double pits themselves. Usually local workers can be hired to do the job.

Double-vault compost latrine

a. Brief description of technology

The double-vault compost latrine consists of two watertight chambers (vaults) to collect faeces. Urine is collected separately as the contents of the vault have to be kept relatively dry. Initially, a layer of absorbent organic material is put in the vault and after each use, the faeces is covered with ash (or sawdust, shredded leaves or vegetable matter) to deodorize the faeces, soak up excessive moisture and improve the C/N ratio, which ensures that sufficient nitrogen is retained to make a good fertilizer. When the first vault is three-quarters full, it is completely filled with dry powdered earth and sealed so that the contents can decompose anaerobically. The second vault is used until it is three-quarters full and the first vault is emptied by hand, the contents being used as fertilizer. The vaults have to be large enough to keep faeces for at least a year in order to become pathogen-free. A superstructure is built over both vaults with a squat hole over each vault which can be sealed off. The latrine can be built in any place as there is no risk of pollution from the watertight chambers to the surroundings. Where there is rock or a high watertable, the vaults can be placed above the ground.

Initial cost:	US$ 35- 70 (in 1978 US$) in Guatemala (Winblad & Kilama, 1985). Prices include the cost of materials and local labour, construction with vaults of 0.3 m3 each above the ground and a movable raised seat.
Area of use:	Areas where people are motivated to handle and use humus or human excreta as a fertilizer and where no water is used for anal cleansing.

b. Description of O&M activities

Operation

Initially some absorbent organic material is put in the empty vault after each use and, whenever available, wood ash and organic material are added. When urine is collected separately it is often diluted with 3 6 parts of water and utilized as fertilizer. This may cause a health hazard and should be avoided. Adding lime or ash may help, but there is no guarantee that the urine will then be safe. Water used for cleaning should not be allowed to go into the latrine as it will make the contents too wet.

Maintenance

When the vault is three-quarters full, the contents are levelled with a stick, after which dry powdered earth is added till the vault is full. The squat hole is then sealed and the other vault emptied with a spade and bucket, after which it is ready for use. The removed contents can be used safely as a fertilizer. Householders may grow insect-repelling plants like citronella around the latrine.

Organizational aspects

Extensive investigation among potential users is needed to find out if the system is culturally acceptable and if they are motivated and capable of operating and maintaining the system properly. Prolonged support by the agency is needed to ensure that users understand the system and operate it properly.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean toilet and super structure, empty urine collection pot	Daily	Household	Water, lime, ashes	Brush, water container
Add ashes or other organic material	After each defecation and whenever available	Household	Wood ashes and organic material,	Pot to contain the material, small shovel
Inspect floor, superstructure and vaults	Monthly	Household
Repair floor, superstructure or vaults	When necessary	Household or local	Cement, sand, water, nails, local building materials	Bucket or bowl, trowel, saw, hammer, knife
Close full vault after levelling and adding soil, empty other vault, open its squat hole and add absorbent organic material before starting to use, store humus (or use directly)	Depending on size and number of users	Household or local pit emptier	Water, absorbent organic material	Shovel and bucket
Use humus as fertilizer	When needed	Household or other users	Humus	Shovel, bucket, wheelbarrow

d. Actors implied and skills required in O&M

Actor	Role	Skills
User, householder	Use latrine, remove urine, keep clean, inspect and perform small repairs, empty pit and switch	Understanding of hygiene, understanding of system and its O&M
Local mason	Build and repair latrines	Basic masonry, latrine building skills
Local pit emptier	Empty pit and switch, check system and perform small repairs	Understanding of hygiene, understanding of system and its O&M
External support organization	Investigate applicability, monitor users’ O&M and hygienic behaviour and provide feedback, train users and local artisans	Research and surveying skills, training skills, knowledge of the system, organizational skills, communicative skills

e. Recurrent costs

When the system is well designed and constructed and O&M is done properly, the recurrent costs will be limited to the costs of small repairs and emptying of a vault when full. Sometimes the humus can be sold to farmers.

f. Problems, limitations and remarks

Frequent problems. Proper operation needs full understanding of the concept. This is often lacking and, as a result, the contents are left too wet, making the vault malodorous and difficult to empty. Where people are eager to use the contents as fertilizer, they may not allow sufficient time for the excreta to become pathogen-free.

Limitations. Only to be used where people are motivated to use human excreta as a fertilizer. The system is not appropriate where water is used for anal cleansing.

Remarks. Double-vault latrines have been successfully used in Vietnam and Central America (Guatemala, Honduras, Nicaragua, El Salvador). When tried elsewhere they have usually been unsatisfactory.

Septic tank and aqua-privy

a. Brief description of technology

Septic tanks and aqua-privies have a water-tight settling tank with one or two compartments, to which waste is carried by water flushing down a pipe connected to the toilet. If there is a tank immediately under the latrine, excreta drop directly into the tank through a pipe submerged in the liquid layer (aqua-privy). If the tank is located away from the latrine (septic tank) the toilet usually has a U-trap. The systems do not dispose of wastes; they only help to separate the solid matter from the liquid. Some of the solids float on the surface, where they are known as scum, while others sink to the bottom where they are broken down by bacteria to form a deposit called sludge. The liquid effluent flowing out of the tank is, from a health point of view, as dangerous as raw sewage and remains to be disposed of, normally by soaking into the ground through a soakaway or with a connection to small-bore sewers. The sludge accumulating in the tank must be removed regularly, usually once every 1- 5 years, depending on size, number of users and kind of use. When sullage disposal is also in the tank, a larger capacity is required for both the tank and the liquid effluent disposal system. Connection to small-bore sewers may then be needed. Where high groundwater tables or rocky or impermeable undergrounds occur, this may also be the case. Every tank must have a ventilation system to allow escape of explosive methane and malodorous gases (generated when bacteria decompose some of the sewage constituents) from the tank. Septic tanks are more expensive than other on-site sanitation systems and require sufficient piped water. Aqua-privies are slightly less expensive and need less water for flushing.

Initial cost: S$ 90- 375, including cost of labour and materials

Area of use: Rural or peri-urban areas where water is available.

Amount of water needed per toilet flushing: About 2 to 5 litres if a pour-flush pan or aqua-privy system is used.

b. Description of O&M activities

Operation

Regular cleaning of the toilet with soap in normal amounts is unlikely to be harmful, but the use of large amounts of detergents or chemicals may disturb the biochemical process in a tank. In aqua-privies the amount of liquid in the tank should be kept high enough to keep the bottom of the drop pipe at least 75 mm below the liquid level. A bucket of water should be poured down the drop pipe daily in order to clear scum (in which flies may breed) from the bottom of the drop pipe and to maintain the water seal. When starting with a new tank, adding some sludge from another tank will ensure the presence of micro-organisms so that the anaerobic digestion process can start directly and more completely.

Maintenance

Routine inspection is necessary to check whether desludging is needed and to ensure that there are no blockages at the inlet or outlet. The tank should be emptied when solids occupy between one-half and two-thirds of the total depth between the water level and the bottom of the tank.

Organizational aspects

Organizational aspects revolve around the reliability of the emptying services, the availability of skilled contractors for construction and repair, and the control of sludge disposal.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean squatting pan or seat and shelter	Daily	Household	Water	Brush, water container
Unblock U-trap when blocked	Occasionally	Household	Water	Flexible brush or other flexible material
Inspect if entry pipe is still submerged (for aqua-privies)	Regularly	Household	Water	Stick
Inspect floor, squatting pan or seat and U-trap	Monthly	Household
Repair squatting pan or seat, U-trap or shelter	Occasionally	Household or local artisan	Cement, sand, water, nails, local building materials	Bucket or bowl, trowel, saw, hammer, knife
Control vents	Annually	Household	Rope or wire, screen material, pipe parts	Scissors or wire- cutting tool, pliers, saw
Empty tank	Every 1- 5 years	Service crew	Water, fuel, lubricants, etc.	Vacuum tanker (large or mini) or MAPET equipment, if possible

d. Actors implied and skills required in O&M

Actor	Role	Skills
User	Flush, keep clean, inspect vents, keep record of emptying dates, control contents in tank and contact municipality or other organization for emptying when necessary	Understanding of hygiene, basic bookkeeping, measuring skills
Sanitation service	Empty tank, control tank and vents, repair if needed	Skills to work with vacuum tanker or MAPET, basic masonry
Agency	Monitor tank performance, and tank emptying by emptying teams, train emptying teams	Training skills, monitoring skills, organizational skills and technical knowledge

e. Recurrent costs

The main cost involved is the emptying of the tank. The frequency of emptying depends on the amount of solids and liquids entering into the tank. The average annual O&M cost per capita measured over 39 countries was US$ 3.09, while in Brazil this cost was only US$ 0.67 (World Bank studies, quoted in Wilson H., 1988 (in 1987 US$).

f. Problems, limitations and remarks

Frequent problems. Many problems are due to inadequate consideration being given to liquid effluent disposal. Large surges of flow entering the tank may cause a temporarily high concentration of suspended solids in the effluent owing to disturbance of the solids which have already settled out. Leaking tanks may cause insect and odour problems in aqua-privies because the water seal is not maintained.

Limitations. Unsuitable for areas where water is scarce, where financial resources are insufficient for construction of the system, or where safe tank emptying cannot be done or afforded. Where not enough space is available for soakaways or drainage fields, small-bore sewers will have to be installed. Aqua-privies only function properly when they are very well designed and constructed and operated.

Remarks. Septic tank additives - such as yeast, bacteria, and enzymes - which are often sold for digesting scum and sludge” and “ avoiding expensive pumping” have not proved to be effective.

Drainage field

a. Brief description of technology

Drainage fields consist of gravel-filled underground trenches called leachlines or drainage trenches, into which the liquid effluents coming from a septic tank are led through open-jointed (stoneware) or perforated (PVC) pipes, allowing the effluents to infiltrate into the ground. Initially the infiltration into the ground may be high, but after several years the soil clogs and an equilibrium infiltration rate is reached. If the sewage flow exceeds the equilibrium rate of the soil, eventually the sewage will surface over the drainage field..

Trenches are usually 0.3- 0.5 m wide with a depth of 0.6- 1.0 m below the top of the pipes. They are laid with a 0.2 0.3% gradient and contain 20- 50 mm diameter gravel with 0.3- 0.5 m of soil on top, with a barrier of straw or plastic sheets to prevent soil from washing down. They should be laid in series so that as each trench fills, it overflows to the next one. This ensures that each trench is used either fully or not at all. Trenches should be 2 m apart, or twice the trench depth if this is greater than 1 m. The bottom of a trench should be at least 0.5- 1 m above groundwater, bedrock or impermeable soil, and land slope should not exceed 10%. An equal area of land should be kept in reserve for possible extension or replacement of the drain field if it becomes clogged.

Compared to soakaways, drainage fields are often used where larger quantities of liquid effluents are produced.

Initial cost: No data found.

Area of use: Rural or peri-urban areas where sufficient water and space are available and the soil is permeable.

b. Description of O&M activities

Operation

Hardly any activities for operation are required, except observing if there are overflows and switching to a second drainage field every 6 to 12 months and fixing the dates of switching (if applicable).

Maintenance

Clean the tank outflow and check if it is still in order (if not, it should be cleaned or repaired). Deblocking of the delivery pipe may be necessary occasionally. Diversion boxes have to be cleaned from time to time. Control plant growth to prevent the roots from entering the pipes or trenches.

Organizational aspects

Minor O&M and bookkeeping are organized and executed by households, groups of households or a community organization. The government department needs to monitor the performance of drainage fields and train users (and their organizations), artisans and caretakers on the technical aspects of O&M.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Control plant growth	Regularly	Household or caretaker		Shovel, bucket, panga, etc.
Switch to other drainage field	Once every 6- 12 months	Household or caretaker	Bricks or other material to block pipes	Tools to open diversion box
Deblock delivery pipe	Occasionally	Household, caretaker or local artisan	Water, piece of pipe, glue	Brush, shovel, long stick or flexible brush, knife, saw
Clean diversion boxes	Every month	Household or caretaker	Water	Shovel, brush
Check outflow of tank and clean	Once a month	Household or caretaker	Water	Brush, tools to open access hole

d. Actors implied and skills required in O&M

Actor	Role	Skills
Household user or local caretaker	Check outflow tank and performance of drainage field and control plant growth	Understanding of hygiene, some technical knowledge of tank and field
Local artisan	Repair parts if broken, remove obstructions in delivery pipes	Basic masonry, piping techniques, knowledge of system techniques and functioning
Agency	Monitor performance of systems, train users, caretakers and local artisans, provide assistance with big problems	Training skills, technical skills for repair and maintenance of drainage fields, monitoring skills

e. Recurrent costs

If the system is well designed, repairs are needed only very occasionally and the recurrent costs are therefore low.

f. Problems, limitations and remarks

Frequent problems. Overflowing leachlines, unpleasant odour, groundwater contamination, and social conflict (over siting of the drainage fields, odour, etc.).

Limitations. Unsuitable where the available space, water or financial resources for construction are insufficient, where the permeability of the soil is poor, or where bedrock or groundwater are at a shallow depth.

Remarks. Pressure can be taken off drainage fields by reducing the amount of water and solids flowing into the solids interceptor tank, e.g. by improved design of toilets which use less water or by preventing sullage from entering the tank.

Small-bore or settled sewerage

a. Brief description of technology

Small-bore sewerage (or settled sewerage) is a sewerage system that is designed to receive only the liquid fraction of household wastewater. The solid components of the waste, which settle, are kept in an interceptor tank (basically a single-compartment septic tank) which needs periodic desludging. Because the sewers only receive the liquid sewage, they are designed differently from conventional sewers and have the following advantages:

· the system needs less water because solids are not transported;

· excavation costs are reduced because the pipes can be laid at shallow depths and do not need to maintain self-cleansing velocity;

· material costs are reduced because the diameter of the pipes can be small (peak flow is attenuated by the interceptor tanks) and there is no need for large manholes;

· treatment requirements are reduced because the solids are kept in the interceptor tanks.

The small-bore sewer system consists of a house connection, an interceptor tank, sewers, cleanouts/manholes, vents, sewage treatment plant, and lift stations (if there is no gravity flow). The system is most appropriate in areas that already have septic tanks but where the soil cannot (or can no longer) absorb the effluent or where densities are such that there is no room for soakaways. It also provides an economical way to upgrade existing sanitation facilities to a level more comparable to conventional sewers.

Initial cost: No recent data available, but the cost of the system in Brotas (Brazil) was calculated to be 78% cheaper than conventional sewerage; in Australia and the USA there were 25- 35% savings on the construction cost, but this excluded the cost of the interceptor tanks.

Area of use: Areas where individual soakaways are not appropriate (soil conditions or densities), or areas where pour-flush latrines with soakpits can be upgraded to a small-bore sewer system.

b. Description of O&M activities

Operation

The main operational requirement is for the household to ensure that no solids can enter the system and that the interceptor tank functions properly.

Maintenance

Regular removal of the sludge in the interceptor tank. This has to be checked by the local sewerage authority because the system will be at risk if solids can enter. Also, removal of blockages, regular control of sewage pipes, and periodic flushing. The performance of accessories in the pipeline system such as cleanouts, manholes, (possible) lift stations, and ventilation points should be regularly checked and maintained.

Organizational aspects

These are mainly the organization of desludging services for the interceptor tanks. The principal problems related to desludging revolve around responsibility. Normally this lies with the property owners since the interceptor tank is on their property. Residents who are not owners have no incentive to desludge regularly. Desludging costs money and is inconvenient; sludge overflowing in the sewerage system will not directly affect the resident but will affect the communal sewer system downstream. If the sewer system is to work effectively, the responsibility for tank desludging must fall on the organization which is responsible for maintenance of communal sewers. This organization must therefore bear the responsibility for treatment of the liquid from the sewers and the sludge from the interceptor tanks.

c. O&M requirements

Activity	Frequency	Human resources	Materials and spare parts	Tools and equipment
Clean grease trap	Daily/weekly	Household	Water
Repairs and removal of blockages	When needed	Local workers or mechanic	Water, specialized materials and spare parts	Rodding tool, mechanic’ s tool set
Check inspection chambers, appurtenances such as pumps and controls, vacuum and surge chambers, check valves	At least annually	Household or mechanic	Water	Basic tool set
Inspect street sewers	Regularly	Staff sewerage department	Specialized spare parts and materials	Specialized tools and equipment

d. Actors implied and skills required in O&M

Actor	Role	Skills
Householder	Check appurtenances within plot, assist community organization in maintenance of inspection chambers and common block sewer line	Understanding of system, some technical skills to check appurtenances
Local workers/mechanic	Check on-site appurtenances, perform small repairs, removal of blocks	Mechanical skills
Community organization	Organize regular checking of block sewer, notify agency of problems that cannot be solved, collect sewer charges	Understanding of system and bookkeeping skills, organizational skills, monitoring skills, communicative skills
Agency	Monitor system’ s performance; keep regular contacts with community organizations and monitor their performance; train teams, mechanics, organization staff and community organization members, operate and maintain collector sewer, pumping station and treatment plant	Technical skills, administrative skills, organizational skills, monitoring skills, communicative skills, training skills

e. Recurrent costs

The main recurrent cost is the emptying of the interceptor tanks, which varies by country and city. Other recurrent costs are for occasional flushing of the system, and repairs to maintain the system.

f. Problems, limitations and remarks

Frequent problems. Overflowing interceptor tanks because they have not been desludged in time. Blockages due to illegal connections bypassing the interceptor tank.

Limitations. Basically only suitable where septic tanks or other on-site systems are already in existence. If a new system needs to be installed, the shallow sewer system is more appropriate as it does not need an interceptor tank. The need for regular desludging of the interceptor tank calls for a well-organized sewerage department.

Remarks. The small-bore sewerage system needs a regular lay-out along back lanes or streets and a regular (even if limited) water supply system. These are absent in many low-income urban areas so that this system is not appropriate. So far, positive experiences with the system have all been in developed countries.

4.3 Spare parts provision in general

Instead of being one of the principal items on a check-list for sustainability, spare parts are often considered long after the technical and operational designs of a water supply or sanitation project have been decided. Spare parts provision should therefore be one of the deciding factors in technology selection, and not merely an unplanned consequence.

Spare parts can be defined as all the materials and items needed for the efficient and sustainable operation and maintenance of a water supply or sanitation system. They include:

· Mechanical, hydraulic, electrical and electronic parts
· Tools
· Seals and washers
· Fuel, lubricants
· Paint
· Chemicals and other consumables
· Parts for essential transport and communication equipment
· Stationery

4.4 Towards sustainable spare parts provision

Spare parts provision should be viewed as much from the demand side as from the supply side. Furthermore, sustainable spare parts provision depends also on strategic issues.

Such elements as the need for spare parts, their cost, and accessibility to spare parts are likely to influence the demand for spare parts. The following items should be considered in analysing this demand.

Need for spare parts

· Assessment of the spare parts needed for a particular technical option, based on the technical characteristics and experience;

· Identification and inventory of the spare parts required, based on an accurate diagnosis of the problems most likely to occur, and their periodicity;

· Estimate of the spare parts needed for emergency repairs, accidents, or scheduled replacement;

· Variations in the frequency of this need, which communities should be aware of;

· Determination of proper timing for initiating repairs or replacement, in addition to the activities needed for simple maintenance of the system;

· Proper operation and maintenance, including effective preventive maintenance, in order to decrease the need for spare parts and their frequency;

· Interchangeability of some spare parts with other brands or technologies.

Cost of spare parts

· Can the cost of spare parts be met according to the tariff in place?

· Are the transport costs to obtain the spare parts included in the tariff? If not, how may these be met?

· What financial mechanisms are available in case the budget cannot cover the cost of spare parts?

· How does the cost of imported spare parts compare with similar parts produced locally or in neighbouring countries?

· How significant are exchange rate fluctuations on the cost of spare parts?

Accessibility to spare parts

· The distance between the village and the location of the shop which is selling the spare parts could be a factor influencing the demand for spare parts;

· This demand can be divided into three categories: 1) frequently needed spare parts, for which the sales outlet or mechanic should be in the village or as close as possible to it; 2) occasionally needed spare parts (every six months to a year), for which the distance should not be too far; 3) spare parts for major repairs or replacement, which may be ordered only from the regional or state capital.

Factors likely to have an influence on the supply side are the availability and use of local materials and locally manufactured parts, location of marketing and sales points, and the profit perspective. The following items should be reviewed.

Use of local materials and locally manufactured parts

· Making better use of materials from sustainable local sources;

· Having options for recycling and re-use or restoration of worn-out parts;

· Improving the reliability of the products (quality control) and the guarantees;

· Improving compliance with delivery deadlines through bonuses or other mechanisms, including penalties for delay;

· Encouraging local entrepreneurs or cooperatives to undertake the manufacture of spare parts;

· Making sure that the parts are guaranteed to remain available over a period of time;

· Learning from the experience of local manufacturers in other sectors;

· Balancing the proportion of imported spare parts with those manufactured locally;

· Offering incentives to local entrepreneurs (e.g. tax breaks, subsidies, preferential consideration against foreign suppliers, etc.).

Quality of spare parts

· Type of material used;
· Quality of manufacture, quality control;
· Interchangeability.

Marketing and sales points

· Encouraging local entrepreneurs, mechanics and shops to undertake the distribution and supply of spare parts, making them aware of the market potential and of the three categories of spare parts, as described above under “accessibility”;

· Installing, where possible, a revolving fund for spare parts which is managed by a cooperative of users or mechanics;

· Making sure that the provision of spare parts through donor assistance or government channels is only temporary, and promoting the development of the private sector;

· Creating better links between the supplier and the user;

· Ensuring stock control, warehousing and sustainable outlet options.

Perspective on profits

· Involving local manufacturers, entrepreneurs, mechanics and shops by offering them some kind of benefits or profit (e.g. a defined profit margin, percentage of sales as own income, free stock for first sales, etc.);

· Making sure that donor-assisted or heavily subsidized prices do not “kill” the market, which means that market prices should be realistic right from the start in order to keep the system sustainable.

Strategic issues for improving spare parts provision include efficient planning, whether to standardize or not, approaches to reducing the need for spare parts, appropriate pricing policy, private sector involvement, and capacity-building.

Efficient planning

· Planning for spare parts provision should start as early as possible in the project cycle.

· During a feasibility study, the project should assess the following: types of spare parts currently available locally or in neighbouring countries; the distribution network; type of equipment used in other projects and regions; the possibility of interchangeability; the possibility of local manufacture (in steel works and plastic works); the cost of spare parts to the customer; the level of import taxes; and national policy regarding spare parts provision.

· Implementation of the project should ensure the sustainability of spare parts provision on a long-term basis.

· After the construction phase, regular monitoring and evaluation of the equipment will help to determine the right time for repairs and rehabilitation within the economic life-span of the scheme; feed-back to the manufacturers on any weakness in the manufacturing of the equipment can help them.

Whether to standardize

Several countries have chosen to standardize their choice of technology. There are positive as well as negative aspects which should be carefully considered (see Table below) before making a decision. Whatever the choice, it could be for a certain number of years only.

FOR STANDARDIZATION

AGAINST STANDARDIZATION

· Wide use of the same item of equipment encourages agents and shopkeepers to store and supply these spare parts because of the “guaranteed demand” · Proliferation of brands and technology makes it difficult to organize spare parts availability · Prices and markets can be more easily researched · Users become familiar with one type of product or technology · Training of personnel can be standardized.

· The chosen technology does not respond totally to the needs and preference of the users · The market is closed for new, innovative and cheaper technologies · Poor incentive for involvement of the private and research sectors · Possible conflict with donor policies on technology choice · Competition between different brands can bring down prices and lead to improvements.

Approaches to reducing the need for spare parts

· Better design of equipment to make them last longer.

· Better engineering to reduce operation and maintenance requirements.

· Better use and operation, by instructing the users on how to reduce wear and tear in the equipment.

· Introduction of a maintenance “culture” that promotes prevention rather than cure.

Appropriate pricing policy

· At the outset, donor assistance often includes subsidized prices for spare parts, which can have a negative effect later on. While this type of pricing by donors may be an incentive to local distributors initially, it raises false expectations and does not help to stabilize the market.

· Highly subsidized prices may not be sustainable over a long period.

· Pricing policy could include an agreed margin of benefits for the intermediaries up to the final outlet point, with prices which the users can afford and are willing to pay.

· Free price policies could open up the market for spare parts and their distribution, but will result in higher prices for consumers initially; however, competition between various brands could lead to a fall in prices.

· High taxes on imported foreign equipment for water supply could be reduced.

· Appropriate pricing of spare parts should be one of the key elements in the technology selection process.

Private sector involvement

· Is there a policy towards private sector incentives and promotion?

· Are there manufacturers of spare parts in other sectors, from whom lessons can be learnt and with whom resources and experiences can be shared?

· What are the opportunities for interregional cooperation in terms of shared markets, marketing, agreements on prices, or division of specialization?

· What are the possibilities for joint ventures with firms and manufacturers in developed countries, which will provide technical, entrepreneurial and managerial training?

· Can the links between manufacturers be strengthened?

· How can the informal private sector at local level contribute to the manufacture and provision of spare parts?

Capacity-building

· Assessment of training needs in the private sector for stock management, as well as manufacture, distribution, supply and use of spare parts.

· Opportunities for learning from the experiences in neighbouring countries and from partners.

Unit 2: Analysis of participation

1. Outline of session

· Objectives

To identify all the actors involved in the operation, maintenance and management of rural water supply and sanitation systems

To identify their roles, interest, problems and degree of participation

· Methodology

1. Introductory note
2. Interactive group exercise
3. Concluding remark

· Materials

Ö Overhead transparencies
Ö Flip chart and masking tape
Ö Overhead projector, screen or white wall

· Handouts

Ö Background information

2. Notes for the facilitator

Introductory note

The object of operation and maintenance is to deal with people and institutions on technical issues. This session aims to identify all the actors who are directly and indirectly involved in the operation and maintenance of water systems, their roles and interests (interests can be contradictory or complementary between different actors), and their major problems.

The work in this session and the next will involve the whole group. Different seating arrangements should be made, because the participants will not have to take down notes or carry out any special exercises. Tables are not required, and the chairs should be placed in a semi-circle facing a wall. The results of the two sessions, when completed, should be distributed to the participants.

Analysis by participation is an integral part of the OOPP (Objective Oriented Project Planning) analytical method. A full explanation of the methodology is given in the supporting material below. Some elements have been adapted especially for this course.

Before the session, the facilitator puts up sheets of paper (craft paper or flip chart sheets) on the wall and draws the framework of a Table for the participation analysis. Participants will only need their marker pens.

Group exercise on analysis of participation

Once the framework has been explained, the facilitator will proceed in three steps:

Step 1: Ask the group what actors are involved in the operation, maintenance and management of rural water supply and sanitation systems. The analysis can be carried out for either water supply or sanitation services, or both. The choice depends on the previously identified demand and needs of the group. All contributions are made on cards, on which the name of an actor is written down, and these are placed within the Table on the wall. The participants may assist the facilitator in writing down the names of the actors. Some of the cards can be grouped if necessary.

Step 2: The group is asked to give the main roles of each major actor and follows the same procedure as in Step 1. See background information (below) for further details.

Step 3: The participants are divided into groups corresponding to the major groups of actors (national level, provincial/district level, local level, etc.) that have been identified. They then describe the interests and problems of each group. All the results are written down on the cards which are placed within the Table. Each group then presents its cards and explains the meaning behind each one. Some rules about how to write the statements on the cards are given below:

Rule 1:	CARDS SHOULD BE WRITTEN WITH CAPITAL LETTERS
Rule 2:	CARDS SHOULD BE WRITTEN IN A LEGIBLE WAY
Rule 3:	CARDS SHOULD DESCRIBE ONLY ONE IDEA
Rule 4:	CARDS SHOULD HAVE NOT MORE THAN THREE LINES

The next session will describe how to present the statement of problems in an appropriate way. The facilitator should accept the statements given on the cards; however, if their formulation should be unclear, he could ask for clarification or reformulation.

Concluding remark

The facilitator goes over the whole Table, highlighting the main roles, interests and problems that have arisen. The last column (“Present degree of involvement”) can be filled in at the same time, following discussions with the group.

The facilitator will point out that this analysis has shown that O&M is concerned with a large number of actors and that it is important to see how all of them can cooperate in an optimal and effective way. The initial identification of problems is the starting point for the next session, which deals with the analysis of constraints.

3. Overhead sheets

There are no overhead sheets because the Table for the analysis of participation should be prepared on a large sheet of paper which is put up on a wall. For details, see below.

4. Background information

An analysis of participation can rapidly show that various actors are involved in the operation and maintenance of rural water supply and sanitation systems. The analysis consists in listing all the actors involved at various levels, highlighting their roles in operation, maintenance and management, their interests, the main constraints each actor is facing, and their degree of involvement, as shown in the Table below.

Actors/group	Role in O&M of actors	Interest	Problems	Degree of involvement*
				Present	Future
National level
Provincial/district level
Local and community level

* Three degrees: 1, little involvement; 2, medium involvement; 3, major involvement. Future involvement should be filled in after the decentralization policies have been reviewed.

Roles usually include policy-making for maintenance; sector planning and programming for maintenance; coordination; budget allocations; follow-up and monitoring; normative control; regulation; training; technical assistance; tariff setting; payment of services; day-to-day operation of the system; preventive maintenance; small repairs; major repairs; rehabilitation; manufacture of spare parts; provision of spare parts.

This analysis can be summarized in the Table below, which gives an overview of the degree of involvement of the major actors in the operation and maintenance of water supply and sanitation systems.

	Degree of involvement
Major actors	Little	Medium	Major
National institutions
Provincial institutions
Local authorities
Community organizations
Users
Private sector and NGOs
External support agencies

The above analysis can also be done in a more detailed way by analysing the degree of involvement of each actor for each role, as identified in the first Table.

Unit 3: Analysis of constraints

1. Outline of session

· Objectives

To further identify problems linked to O&M
To analyse these problems in a logical way
To draw a problem tree

· Methodology

1. Introductory note
2. Focused discussion
3. Interactive group exercise

· Materials

Ö Overhead transparencies
Ö Flip chart and masking tape
Ö Overhead projector, screen or white wall
Ö Large sheet of paper (craft paper), hung on the wall for the problem tree exercise
Ö Cards of various colours (code is important: for example, yellow for problems)

· Handouts

Ö Copies of transparencies, background information

2. Notes for the facilitator

Introductory note

The present session is directly linked to the previous one. The OOPP (Objective Oriented Project Planning) methodology will now be introduced for application in this course (see below, background information and overhead sheets). This adaptation of the original methodology provides a flexible management and analytical tool. The session deals with problem analysis in the context of operation and maintenance of water supply and sanitation systems; other activities will be developed later in the course. It should be noted that the full use of the methodology is not essential, especially in a training session to work on a situation analysis. OOPP is not an end in itself, it is just a tool.

Focused discussion

Before starting with the OOPP methodology, the participants will be asked to indicate the planning tools which are being used in their professional setting. This list of tools will be written on the board by the facilitator, who will ask for comments from the participants.

Interactive group exercise

The group should have the same informal seating arrangements as in the last session. The facilitator will proceed in the following way:

· Problems which are linked to operation and maintenance of water supply and sanitation systems are formulated. For this exercise, a large group can be divided into smaller subgroups, who will have to prioritize the problems and produce a maximum of seven cards; some of these problems could come from the analysis in the previous session, with others added.

· All the subgroups should clearly understand each problem; the facilitator may have to rewrite some of the cards.

· All the identified problems are put up on one side of the sheet on the wall in order to leave enough space for the actual analysis.

· The analysis starts by asking the participants which of the problems could be direct causes of the main problem for “poor O&M”, until all the problems have been examined and linked to form a tree.

· The analysis also examines the effects of poor O&M; if some problems have not been highlighted, the group can do so now.

· The whole logic of the tree can be checked in terms of cause-effect relationships.

· At the end of the analysis, lines should be drawn linking the cards in order to visualize the relationship between problems, thereby building an objective tree.

This session is highly participatory and the facilitator should be careful to keep good track of the time. The aim is not unanimous agreement on a hypothetical situation, but an acceptable compromise by the group. At this stage, the object is to examine the main problems in order to see how they are interrelated. The participants will have the opportunity to develop this in more detail during their individual assignments later in the course.

3. Overhead sheets: Sheet 1

OOPP Objective Oriented Project Planning 1. Analytical phase 2. Planning phase

Overhead sheet 2 1. Analytical phase a. Analysis of participation b. Analysis of problems c. Analysis of objectives d. Analysis of alternatives 2. Planning phase a. Development of planning matrix b. Identification of assumptions c. Identification of activities d. Formulation of indicators e. Estimation of costs and human resources needs f. Time planning

Overhead sheet 3

Problem analysis 1 Identification and formulation of problems 2 Selection of an essential” problem 3 Identification of the direct causes of this problem 4 Identification of the direct effects of this problem 5 Continuation of the identification of cause-effect relationships 6 Control of global coherence 7 Drawing of lines to create a problem tree

Overhead sheet 4

Cause-effect relationships Figure

4. Background information

4.1 The importance of problem analysis

One of the first tasks for a manager or a group of persons is to understand and assess the present situation. There are many different ways to go about this - reading reports and studies which have been written on a particular project; holding a series of interviews and meetings, and asking staff about their perceptions on the situation; making field visits in order to visualize the situation; deciding to analyse successes and focus on them only.

Experience has shown that good plans are based on an appropriate understanding of a situation, which is based not only on an analysis of successes, but also of constraints and problems. However, many managers will limit themselves only to the identification of problems, and omit their analysis. Furthermore, there are often as many interpretations of a problem as there are professionals.

Without denying the positive aspects of other working methodologies, this methodology proposes to assess a situation on the basis of a common understanding of the problems. It is simple, participatory, democratic and motivating. It allows a group of professionals at different levels, from different departments or sectors, to reach consensus on the situation, which is vital for the effective implementation of a plan. The logical sequential analysis shows that problems are interrelated and cannot be isolated.

4.2 What is a problem?

According to the Collins Cobuild English Language Dictionary, a problem is a situation or a state of affairs that causes difficulties for people, so that they try to think of a way to deal with it.

People do not always have the same perceptions and vision of a problem, since they belong to different cultures and have different priorities in their working or living environments. However, the above definition helps to focus our vision on what is a problem.

It causes difficulties for people, so that they try to think of a way to deal with it. A problem is based on a real, existing situation, which becomes troublesome in a way that one has to react to it. Therefore, a problem is not an interpretation of a situation, it is a fact, a reality. Furthermore, it is significant enough that people do want to react to it, thus avoiding minor troubles which life is usually filled with anyway.

Many people will identify a problem in terms of a desired situation which they do not have, visualizing a problem as an absent solution. For example, some will say that “no equipment”, “no vehicle” or “no money” are problems while analysing a situation of long delays for repairs. This could be hiding the fact that there is poor planning, that villages are far away, that tools and equipment are obsolete, that the project is understaffed, that spare parts are not available, etc. However, lack of equipment or poor budget allocations could also be a reality.

In this course, we will consider problems with a negative formulation, since this helps to raise an issue, a challenge to be met. A formulation just stating “spare parts” does not raise an issue, and does not say what is wrong, although spare parts can be a problem. This could be formulated as “poor availability of spare parts”, or “high cost of spare parts”, etc., depending the situation.

In summary, we will define a problem as:

1. A real, existing situation
2. Significant
3. Preferably not an absent solution
4. A negative formulation

4.3 The OOPP methodology

This methodology was first developed in 1983 by the German Organization for Development Cooperation (GTZ). It combines the logical framework tool with new communication techniques (Metaplan) into an analytical and planning tool called Objective Oriented Project Planning (OOPP, or ZOPP in German). This is now being used as a major planning tool by the great majority of agencies involved in development cooperation. Other planning tools are also proposed in this course.

OOPP is based on a logical sequence of reflection, and the team work approach is its essential feature. It uses a strong visualization tool, i.e. cards, in order to see what would otherwise be abstract. The result of the thinking process is accepted by the group. The analytical method is based on the analysis of a logical sequence of cause-effect relationships between various problems as will be exposed later.

OOPP is composed of two phases: an analytical phase and a planning phase.

The analytical phase comprises participation analysis, problem analysis, objective analysis, and an analysis of alternatives.

The planning phase consists in the development of a planning matrix, determination of assumptions and conditions, determination of activities, formulation of indicators, estimation of financial and human resources needed, and the development of a chronogram (for timing of activities).

What are the advantages of the methodology?

· Reaches a common understanding of problems

· Clarifies cause-effect relationships

· Provides clear planning documents

· Allows the participation of various staff and professionals, as well as beneficiaries of the project

· Establishes a consensus

· Easier to implement because of broad acceptance.

What are the limitations of the methodology?

· Truth is not only rational and logical; the methodology puts aside all intuition, contradictions and feelings.

· Can lead to a simplified “linear” representation of reality.

· The whole planning depends on an adequate and accurate problem analysis.

· Creative thinking only done for the problem analysis, but gets lost in the mechanical sequences afterwards.

· The emphasis on problems can put a shadow on the perception of existing potentials and successes.

· Certain groups are not familiar with an abstract and logical analytical sequence of thinking, which can create problems in its application.

· Needs a good and experienced facilitator.

4.4 How to analyse problems

After the problems have been identified and listed by all the participants, the group is asked to select one problem as essential, which will be used to start the analysis. Criteria of selection can be: most pressing problem, or most frequently occurring problem. As an example for illustration, we have chosen the problem of “insufficient financial resources”.

From the listed problems, the group then identifies those that are the main causes for this essential problem, and are directly linked to it. It is possible to formulate additional problems if they are not all present yet. It is also possible to reformulate some cards, which appear to be too vague. It is also possible to eliminate cards that appear to be totally out of context. The question to be asked in order to find the direct causes, is WHY?

In a second step, it is now proposed to select from among the list of identified problems, those that can be the effects of the essential problem, and are directly linked to it. Problems can be added, or eliminated as shown above. The question to be asked in order to find the direct effects, is WHAT are the direct consequences of this essential problem? What will it lead to? This process is then repeated for each cause. What are the causes of this problem? Same applies for the effects, until all the cards have been placed. Lines are then drawn showing the relationship between each card. The final result is a problem tree. There is no perfect problem tree. All problem trees are different, since all groups are different. It just represents the consensus and understanding of a particular situation for a given group, at a given time, in a given context.

Unit 4: Analysis of objectives

1. Outline of session

· Objectives

To identify objectives linked to O&M
To analyse these objectives in a logical way
To draw a problem tree

· Methodology

1. Introductory note
2. Interactive group exercise
3. Concluding remark

· Materials

Ö Overhead transparencies
Ö Flip chart and masking tape
Ö Overhead projector, screen or white wall
Ö Large sheet of paper (craft paper), hung on the wall for the problem tree exercise
Ö Cards of various colours (code is important: for example, green for problems)

· Handouts

Ö Copies of transparencies and background information

2. Notes for the facilitator

Introduction

This session is the immediate follow-up of the problem analysis. It looks into the future on the basis of an analysis of the present situation, the problem analysis.

Interactive group exercise

The group exercise is in two parts: 1) construction of the objective tree; 2) selection of a strategy.

1) Using the problem tree, the facilitator asks the participants to restate the negatively formulated problems into objectives which are positive and achievable. Avoid statements of objectives with an ultimate or long-term improvement, but indicate, on the basis of the problem analysis, an improved situation. For example, do not indicate the problem of lack of funds as plenty of funds, but rather as improved financial situation, etc.

It may be that some problems cannot be changed into objectives, because the project will not be able to solve them, e.g. “corruption”. These cards in the exercise will remain as problems, even in the objective tree.

It is important to use cards of two different colours for objectives and problems.

The facilitator, with the help of the participants, can rebuild an objective tree, similar to the structure of the problem tree. However, they will have to look at the means-end relationship (as opposed to cause-effect for problems). It can very well be that the logic is not always the same and that some analyses need to be examined again; also, other objectives may have to be added in order to complete the analysis.

The end product is an objective tree, in which the facilitator can circle the various entities that appear, such as “community”, “technical aspects”, “institutional support”, etc.

2) The selection of a strategy consists in the selection of objectives. It would be impossible for a project to tackle all the objectives which are formulated in the objective tree, mainly for the following reasons:

· All the objectives are not within the mandate and responsibility of a project.
· There are not enough financial and human resources to work on all objectives.
· The project has to respond to some priority or urgent issues first.

The management and staff will therefore have to choose and prioritize in a participatory way. The selection process can be performed in the following way:

· Identify those objectives which are not within the mandate and the responsibility of the project (in this case, it might be difficult because the project is hypothetical).

· Identify key objectives (maximum seven) which can greatly influence the main objective, i.e. “Improved O&M”. These objectives should generate a maximum impact for a minimum input of resources, which are limited; it could be that the main objective is not completely resolved, but the chosen objectives will greatly contribute to it.

Procedure. The facilitator asks the participants to form small groups of three persons. Each group will have the task of identifying a maximum of seven objectives which will contribute to the main objective. They will also have to give a priority to each objective.

After the objectives have been chosen, the facilitator draws the following Table on the board:

Selected objectives	Number of groups who selected this objective	Priority given by the group
1.
2.
3.
4.
5.
6.
7.

This Table, when filled in, will allow a participatory decision to be made on which objectives to choose. The final selection will correspond to the objectives which obtained the best score, taking into account the priority as well.

Conclusion

The project has now selected precise objectives to work on, which are based on an analysis of a real situation.

3. Overhead sheets: Sheet 1

How to do an objective tree

Step 1: Reformulate all negative conditions into positive attainable conditions

Step 2: Check whether rewording has led to unrealistic or ethically questionable statements

Step 3: Examine the means ends” relationships, thus derived to assure the validity and completeness of the tree; add cards if necessary

Step 4: Draw lines between all objectives showing relationships and finalize the objective tree

Step 5: Circle different groups or entities which appear within the objective tree and give them a name

Overhead sheet 2

Example of an objective tree

4. Background information

4.1 Discussion on alternatives: identifying potential alternative solutions

The chief criterion when evaluating and selecting alternatives is whether the project is realistic and more beneficial than problematic. The following aspects can be significant:

· Priorities in policy development

· Specific conditions in the country

· Suitability of the chosen project to the donor agency and the national departments which support it

· Availability of funding

· Project’s experience in the region or sector

· Available manpower

· Complementary or competitive activities of other projects.

The choice between alternatives will be determined by cost-benefit analyses, additional analysis of various interest groups, and management discussions and decisions.

Module 3: Towards sustainable operation and maintenance

Unit 1: Linking technology choice with operation and maintenance

1. Outline of session

· Objectives

To raise awareness on operation and maintenance criteria that influence technology choice

To become familiar with the processes that influence technology choice for community water supply and sanitation facilities

· Methodology

1. Introductory note
2. Plenary discussion on criteria
3. Group exercise on technology selection process
4. Conclusion

· Materials

Ö Overhead transparencies
Ö Overhead projector, screen or white wall
Ö Flip chart and markers

· Handouts

Ö Copies of transparencies
Ö Exercise sheet
Ö Extracts from background information

2. Notes for the facilitator

Introductory note

Module 3 deals with the main issues that influence effective operation and maintenance of water supply and sanitation services, including technology choice. The latter is the first determining factor for effective operation and maintenance. Indeed, the type of technology and its selection are likely to have an impact on future operation and maintenance activities. This session highlights the criteria as well as processes that link technology choice with operation and maintenance.

Plenary discussion on criteria

The facilitator draws 10 columns on the board, five for water supply and five for sanitation, which correspond to the following sustainability factors: 1) technical aspects; 2) community aspects; 3) environmental aspects; 4) institutional and legal aspects; 5) other aspects. Past experience has shown that participants like to add financial factors to this list, even though financial factors are implicit in all the other factors. The facilitator asks the participants with respect to each column, “What are the important O&M criteria to consider during the planning stage?”, and writes down their answers. If needed, the facilitator can add the information given below (see background information).

Group exercise on technology selection process

The facilitator divides the participants into two groups for 1) water supply technology choice, and 2) sanitation technology choice. Each group receives a set of prepared cards (A4 size, divided into three), describing typical activities involved in the process of technology selection. The cards should be arranged in a logical way. This exercise shows how technical and social factors should be integrated. Each group discusses the best way to arrive at a choice, and presents the results in a plenary session. The facilitator can use the model given under background information to propose some feasible and realistic alternatives. The cards can be made using the text in the exercise sheets. As participants usually find it useful to keep a record of all the exercises, it is recommended to have secretarial support to record these exercises and distribute a copy to all the participants.

Conclusion

Linking technology choice with operation and maintenance is a key factor for sustainability; the resulting choice depends on the use of appropriate criteria and the selection process.

3. Exercise sheets: Sheet 1

Process of water supply technology choice The facilitator should prepare beforehand a set of cards as described below, leaving some blank ones for additional activities if needed, and distribute a complete set to the group. The group will have to organize the cards in a logical sequence (some activities can be done in parallel with others). All these activities have a definite direct or indirect impact on future O&M activities. Figure

Exercise sheet 2

Process of sanitation technology choice The facilitator should prepare beforehand a set of cards as described below, leaving some blank ones for additional activities if needed, and distribute a complete set to the group. The group will have to organize the cards in a logical sequence (some activities can be done in parallel with others). All these activities have a definite direct or indirect impact on future O&M activities. Figure

4. Background information

4.1 Operation and maintenance specific criteria affecting water supply technology choice

Technical criteria	· Technical standards; quality and longevity of equipment; spare parts needs, costs, availability and accessibility · Dependence on fuel, power, chemicals; cost of O&M activities; cost of fuel and chemicals · Complexity of operation and maintenance procedures: necessity of skilled personnel · Potential for local manufacture, and for standardization · Use of local materials and equipment · Dependence on imported parts · Technical options available on the market · Water demand
Environmental criteria	· Quality of water source · Requirements for water treatment · Necessity for water source protection and wastewater management
Institutional and legal criteria	· Legal framework and national strategy for O&M · Training capacity and follow-up support · Availability of technical assistance to the communities · Capacity of municipalities to dialogue and assist communities · Involvement of the formal (informal) private sector and NGOs · Monitoring capacity · National or local budget allocations for O&M activities · Availability of financial mechanisms to cover replacement and rehabilitation costs
Community criteria	· Responsibility and ownership feeling · Desired service level · Demand for improved service level · Perception of benefits, culture, habits, beliefs · Organized and elected community structure to be responsible for O&M · Managerial capacity · Gender perspective in O&M activities · Technical skills available in the community or within reach of the community · Maintenance culture within the community · Tariff structure · Cost-recovery mechanisms to put in place · Financial management capacity · Ability and willingness to pay

4.2 Operation and maintenance specific criteria affecting sanitation technology selection

Experience has shown that many sanitation projects adopted interventions and technologies that were selected with poor assessment of the demand for sanitation. In these instances, there was hardly any communication between the future users and the project planners, and the social, gender, cultural and religious aspects were not taken into sufficient consideration.

In some cases, environmental factors were not considered in the design, which led to unsafe situations and even the collapse of pit walls. Hygiene education to change sanitation behaviour was hardly mentioned in the adopted project approaches. Planning for sanitation interventions therefore requires a comprehensive approach covering many aspects. The Table below presents four groups of general and specific criteria which influence sanitation technology choice.

	General criteria	Specific O&M criteria
1. Technical	· Technical standards · Availability of construction materials · Estimated lifetime · Cost of construction · Design preference (substructure, floor slab, squatting or raised seat, superstructure)	· O&M requirements · Ease of access · Use for the decomposed waste
2. Environmental	· Soil texture, stability, permeability · Groundwater level · Control of environmental pollution · Availability of water	· O&M implications for environmental protection · Groundwater contamination
3. Institutional	· Existing national/local strategies · Roles and responsibilities of actors · Training capacity · Availability of subsidies and loans · Availability of masons, carpenters, plumbers, sanitary workers, diggers and persons to empty the pit · Monitoring	· Pit-emptying services (municipal/private) · Sewerage maintenance capacity · Potential involvement of the private sector · National budget allocations for sanitation · Training and sensitization
4. Community	· Sociocultural aspects: Taboos, traditional customs, religious rules and regulations, cleansing material, preferred posture, attitude to human faeces, gender-specific requirements · Motivational aspects: Convenience, comfort, accessibility, privacy, status and prestige, health, environmental cleanliness, ownership · Discouraging factors: Darkness, fear of falling in the hole or the pit collapsing, fear of being seen from the outside, smells, insect nuisance · Social organization factors: Traditional role of community leaders, religious leaders, school teachers, community-based health workers · Other factors: Population densities, limited space for latrines, acceptance of communal latrines	· O&M costs · Training and sensitization · Health awareness and perception of benefits · Presence of environmental sanitation committee · Women’s groups · Social mobilization on hygiene and sanitation behaviour

Upgrading an existing sanitation facility can be the first option for improving the sanitation conditions if it matches the social and cultural preferences of the community, as well as the local economic and technical capacities. If the existing facilities do not meet basic hygiene requirements, then upgrading must be considered. If no sanitation facilities are present, the simplest technology option is to be considered, taking into account the factors mentioned above.

4.3 Technology selection process

The technology selection process will depend on the strategies adopted by the planners and on basic principles which are emerging in the water and sanitation sector. One principle is the need to involve communities right from the start of the selection process. The agencies, the communities and users should therefore work together as partners, and plan their activities based on mutual agreement. The latter is particularly important in contexts where both men and women in the community and among the users are increasingly taking on the responsibilities of operating, maintaining and managing their water supply systems.

Various formulations of the word “technology” can be found in the literature, such as: appropriate technology, progressive technology, alternative technology, intermediate technology, village technology, low-cost technology, labour-intensive technology, self-help technology, and technology with a human face. In this course, we advocate a sustainable technology, i.e. a technology that should, as much as possible, match the people’s needs, expectations, preferences and cultural habits. It should be convenient, manageable, maintainable and affordable.

Linking operation and maintenance with technology selection covers several aspects, such as technical, environmental, financial, institutional and social aspects, and requires the testing and feasibility study of the O&M system to be put in place. The O&M framework defines all the actors and their roles and organization in O&M, as well as their interrelationships with one another.

Experience shows that the effectiveness of O&M is determined to a considerable extent by non-technical issues. Therefore, the persons involved in assessing and developing O&M should come from a wide range of disciplines - social development, economics, health, management, and engineering. It is important that all of them should function in partnership with the operators and users of the relevant services.

Rehabilitation of defective schemes is an economic alternative to investing in a new project, but that decision should not be made lightly. The rehabilitation option has to be evaluated, as one would a new scheme, by taking into consideration the community’s needs, preferences and capacities to sustain whatever is undertaken, as well as the support potential of the water agency. In assessing the scope for rehabilitation, community members and the agency should review the reasons for which the system needs to be rehabilitated, by means of problem analysis, and carefully examine various feasible technologies. Furthermore, rehabilitation should not simply be a matter of replacing defective equipment or repairing damaged infrastructure because the most common cause of failure is organizational. Finally, a word of caution: the community might in some cases get the feeling that O&M does not concern them - believing that when the system is out of order someone will come and put it right!

If a risk analysis is carried out for each water supply option, then an attempt can be made to anticipate factors which may change and affect O&M. This will not be easy, especially in unstable economies, e.g. with high inflation rates and restrictions on imports, where equipment and spare parts are not easily available. However, a comparison of technologies can indicate the degree of risk attached to each option.

4.4 The process of community water supply technology choice

The following steps are proposed:

1. The community requests the agency for support to improve its water supply (demand-driven approach); this could be preceded by promotion and mobilization campaigns. The expectations and preferences of the users (both men and women) and their motivation should be assessed.

2. Initial service-level assessment - what service level is responsible for dealing with environmental issues and the preferences of users (both men and women)? What are the comparative advantages between various options (e.g. standposts and yard connections)? The validity of hydrological, technical and institutional data collected by agencies must be confirmed by local resource persons.

3. Participatory baseline survey, including needs and problem analysis with the community.

· What reliable water source is available?

· Can this source provide the required quantity and quality of water?

· What is the treatment needed?

· What materials, spares and skills are needed to sustain the desired service level?

· What is the most appropriate structure to sustain the desired service level which corresponds to the management capacity of the communities?

· What is the capacity of present community organization to manage, operate and maintain an improved water supply system?

· What is the involvement of women and men in community activities?

· What are the costs (capital and recurrent) of the options considered?

· What are the financial resources available and the willingness to pay?

· What is the present approach to the application of O&M within the programme or country area?

· What are the causes and effects of poor O&M within the area?

· Should technology match the available O&M system and capacity (including spare parts distribution), or should the O&M system be adjusted to match the most suitable technology?

· What type of support can the communities receive, in terms of technical, financial and capacity-building assistance?

· What is the overall impact of the option selected?

4. Analysis of data by the agency, leading to the possible selection of the most suitable technologies and service levels, including a review and appreciation of all specific O&M criteria.

5. Presentation and discussions with the community of the most sustainable technologies, considering all O&M implications and commitment to long-term management of O&M. Clarifications should be made at the same time on all necessary adjustments of the existing O&M system, with a definition of the responsibilities of the actors involved in the development of the project. Communities should be given enough time to consider the options and the future implications of each one.

6. Formal agreement on technology selection between the community and all partners, once the community has made its informed choice. This agreement can be formalized with a contract, and include a financial contribution (in cash or kind) from the communities.

7. Finalization of planning for implementation.

4.5 The process of low-cost sanitation technology choice

It is assumed that the technology selection process is based on a participatory needs assessment, which is carried out following an expressed demand for improved sanitation facilities. Hygiene awareness and promotion campaigns can result in an increase in the demand for improved facilities. The process of choosing sanitation technology should include at least the following steps:

1. Participatory assessment of problems in the existing human excreta disposal system, as well as in hygiene behaviour, environmental hygiene and human excreta-related diseases. Participatory assessment of the cultural, social and religious influences on the disposal of human excreta and choice of sanitation technology. Participatory assessment of local conditions, convenience, capacities and resources (material resources, human resources and finance).

2. Initial awareness-raising of the community on hygiene and sanitary matters - about the benefits of safe human excreta disposal and appropriate human behaviours linked to sanitation and personal hygiene.

3. Identification of local preferences and capacities for sanitation facilities and possible variations. Matching these preferences with local capacities and environmental conditions including contamination risks, and determining the O&M requirements and other implications of the technology options.

4. Discussions with the community about implementing different sanitation technology options and their implications in terms of operation and maintenance.

5. Selection of one technology option by the community.

Improvement of sanitation facilities should be accompanied by activities in Information-Education-Communication (IEC) to promote safe sanitation behaviour and proper hygiene. These activities have a longer time horizon than the time required for improvement of physical structures. Schools and other institutions, churches, and social and community groups have an important role to promote proper hygiene and sanitation behaviour. Attention must be paid to selecting the most appropriate technology, design, and site in order to prevent environmental pollution, particularly of water resources and the living environment. Control measures must be carried out to minimize these risks.

Unit 2: Institutional set-up

1. Outline of session

· Objectives

To raise awareness about the importance of a proper institutional set-up for operation and maintenance

To review the consequences of institutional changes, like those induced by decentralization and privatization

To review possible management options at the local level

To raise awareness on the importance of communication

· Methodology

1. Introductory note
2. Review of analysis of participation exercise
3. Presentation and discussion on decentralization using a graphic
4. Document analysis on management options
5. Short presentation on various management models
6. Conclusion on the importance of communication

· Materials

Ö Overhead sheets
Ö Overhead projector, screen or white wall
Ö Flip chart

· Handouts

Ö Exercise sheet
Ö Copies of transparencies
Ö Copies of selected parts of background information

2. Notes for the facilitator

Introductory note

The analysis of participation has shown that many actors are involved in different ways and degrees in the operation, maintenance and management of rural water supply and sanitation services. This session reviews how the organization of all these actors provides an effective maintenance system. Most developing countries today are undergoing structural and institutional reforms, which have a far-reaching impact on the way maintenance will be organized and on who will be responsible. The session analyses the framework in which the actors evolve, which has links with the next session on community management.

Review of analysis of participation exercise

If the participation analysis exercise proposed in Module 2 has not yet been carried out, it should be done now by referring to the directions given. The review of this exercise consists in determining the degree of involvement and what could happen at this stage, given the problems that have been identified. This review by the whole group can be summarized in the following Table (the shading given below is an example).

	Degree of involvement in O&M
Major actors	Slight	Medium	Major
National institutions
Provincial institutions
Local authorities
Community organizations
Users
Private sector and NGOs
External support agencies

Some conclusions can be drawn by the facilitator from this Table, e.g. that some sectors are greatly involved, that the process is still very much “donor-driven”, that the small role of the private sector and NGOs could be enhanced in the future, that the users appear not to be sufficiently involved, etc.

Presentation and discussion on decentralization

The various trends affecting the sector especially on sustainability, decentralization, private sector involvement, and new approaches are presented and discussed. The facilitator can first recall the main points of sustainability, which have been stated in Module 1, Unit 3.

Document analysis on management options

The exercise sheets include descriptions of various forms of management options for piped water supply projects. The management of handpumps systems will be reviewed in the next session on community management. The participants will be divided into three groups, corresponding to, for example, the management options proposed in the exercise sheets: 1) Concession to a community association; 2) Direct municipal management; 3) Cooperative association of public administration. Each group will review its management option, and highlight the strengths and weaknesses. The groups will briefly present the results of their work in a plenary session.

Short presentation on various management models for a piped rural water supply system

The facilitator will review the Table which summarizes these management models (see background information, below).

Final conclusion on the importance of communication between all stakeholders

The facilitator starts a short game. He says to the group: “I will count to three and ask you to clap your hands.... One... two...” (while speaking, the facilitator imitates the clapping of the hands without really clapping). The result is that everyone claps. The facilitator says: “I asked you to clap at three, and everyone claps at two!... Where is the communication? Is this type of situation frequent in our workplace?” Allow time for discussion. The facilitator then uses some of the information contained in the background information to make a concluding presentation on the importance of communication, and on how to set a communication strategy.

3. Overhead and exercise sheets: Sheet 1

After having reviewed the situation analysis done previously, mark the squares with a cross accordingly
	Degree of involvement in O&M
Major actors	Slight	Medium	Major
National institutions
Provincial institutions
Local authorities
Community organizations
Users
Private sector and NGOs
External support agencies

Overhead sheet 2

Substitution of responsibilities between government and community in a context of decentralization, with necessary accompanying measures Accompanying measures: a. Building the capacity of communities b. Reinforcing the role of the local authority c. Promoting NGO/private sector participation d. Changing the role of government Figure

Overhead sheet 3

Who constitutes the private sector?

Actors in the private sector	O&M support role
International and national manufacturers and suppliers	· design and manufacture pumps and other equipment for operation and maintenance at the village level · supply spare parts and consumables
International and national consultants	· design schemes for community management · develop community/agency-managed O&M systems · provide O&M training
International and national contractors	· rehabilitate and extend schemes for community O&M · on-the-job training of O&M staff during construction
Local contractors	· service and maintenance contracts · major repair work
Small-scale industries	· local manufacture of spare parts and tools
Nongovernmental organizations (NGOs)	· training, raising community awareness · technical assistance
Self-employed artisans in the formal and informal sectors	· local skills for preventive and corrective maintenance and repair work: mechanics, plumbers, builders, masons, blacksmiths, electricians, etc. · operation of facilities
Local shops	· provision of spare parts
Administrators and accountants	· billing, rate collection, auditing of accounts
Banks	· banking facilities for O&M funds · credit facilities for irregular high-cost items and for the expansion or modification of facilities

Overhead sheet 4

Approaches to development Figure

Overhead sheet 5

A communication planning sequence includes: · Identification and formulation of key issues to be communicated · Identification of target audiences · Research on current knowledge, attitude and practice of each target group around the required future change in behaviour · Development of messages based on current knowledge and behaviour · Pre-test messages · Identification of appropriate communication channels · Preparation of communication materials · Pre-test of materials · Training of communicators · Development of indicators to assess the impact · Implementation of communication programme · Assessment of impact and adjustment of programme design

DOCUMENT ANALYSIS 1

Concession to community associations

Briefly highlight the strong and weak points of this management option for rural piped water supply systems

Communities can already count on existing associations, which sometimes have been organized in an informal way. It is important in this case that associations are organized in a formal way, and obtain legal status. They will be established as non-profit-making associations with the aim of providing a public service, which could give access not only to community resources but also resources coming from the municipality, the province or the central government. The mayor can be a member of the association but has to promote community participation and facilitate access to municipal, provincial and national funding. The community association is organized in the following way:

Figure

The General Assembly adopts decisions and elects the members of the Management Committee of the Association. The Management Committee is composed of a President, a Vice-President, a Treasurer or Administrator, a Secretary, representatives from the users, a representative from the local administration (if decided by the General Assembly, and if the local conditions allow it). The General Assembly has the responsibility to supervise and control all managerial, technical and financial aspects of the service. The caretaker and operator are responsible for the operation, maintenance and conservation of the whole system; they participate in tariff collection as well. The Association has to be created by a decision of the General Assembly which passes an Act constituting the Committee. The General Assembly must study and approve the Rules and Regulations for the functioning of the organization. The Constituting Act and the Rules, together with a written application, are registered with the Chamber of Commerce. The creation of such an Association will be authorized through an official document of the Municipal Council.

DOCUMENT ANALYSIS 2

Direct municipal management

Briefly highlight the strong and weak points of this management option for rural piped water supply systems

In this management option, the municipality is directly responsible for the administration of the water supply service, through a department or unit which has been created for that purpose. However, several conditions are applicable:

· direct municipal management will be possible only if the municipality has made a public call for firms to operate, manage and maintain the system, and if no one has proposed its services;

· direct municipal management will be possible even if a private or public firm is available, only after a study has shown that the operating cost of direct municipal management will be lower than that of the private firm, and the quality of the service to the users will be higher.

It is stipulated that the accounts for the running of the service must be separated from the general accounts of the municipality, and must distinguish between incomes through tariffs and income through subsidies. Direct municipal management is organized in the following way:

Figure

DOCUMENT ANALYSIS 3

Cooperative association of public administration

Briefly highlight the strong and weak points of this management option for rural piped water supply systems

The cooperative association is an organization in private law, which aims at solving a social need through the production and provision of a service. It is composed of associates including: users of the service, representatives of local authorities, representatives of other associations or public/private firms.

How is a cooperative association created? After an authorization obtained from the Municipal Council, a General Assembly composed of all the associates elects the members of the Governing Board, approves the charter and regulations, establishes policies and programmes, and gives the general orientation. The Governing Board is the permanent body for the management and administration of the cooperative association. It will nominate or remove the manager, determine the profile for the staff, propose the budget for control (which will have to be approved by the General Assembly), and convene the General Assembly. It is composed of a President, Vice-President, a Secretary, and a Controller who are elected for a period of one year. The cooperative association is organized in the following way:

Figure

DOCUMENT ANALYSIS 4

Private management

Figure

The municipality, after constant dialogue with the rural communities, contracts the services of a private firm to manage, operate and maintain the water supply system, with the understanding that the communities will be consulted over all matters that have a financial implication for them. The actual operation is done by an operator who is employed by the private firm. The community, in turn, ensures basic preventive maintenance and the payment of a fee. The firm will have to recover the costs through a tariff system, agreed with the community and the municipality.

The contract with the private firm is renewable, and only concerns management, operation and maintenance. All other activities, such as decisions for extension, rehabilitation and replacements, are the responsibility of the municipality, in consultation with the community.

4. Background information

4.1 Institutions are evolving

The concept of sustainability implies making some institutional changes as it highlights the importance of community and user involvement, working in coordination with the local authorities, in the demand, design, management, operation and maintenance of the system. Sustainability also encourages the use of local resources, e.g. artisans and shops, as well as NGO assistance to help develop the local economy.

Several countries are now implementing decentralization policies which have a direct or indirect impact on the water and sanitation sector. The institutional implications, however, vary from one country to another. The main aim for implementing a decentralization process is greater efficiency, effectiveness and sustainability of public services. It is based on the assumption that local institutions can better respond to the needs of the population, and therefore adapt strategies and policies to the local context. Central-level institutions must change their role from provider of services to that of coordinator, facilitator and support. This can be done by: 1) transfer of responsibilities from national to provincial/communal level; 2) “deconcentration” of activities from national to local levels; 3) transfer of various activities to other actors such as NGOs and the private sector.

The graphic describes this decentralization process and its consequences.

Figure

In , the government is responsible for everything and the communities have no legal authority in such a centralized system. This system has proved to be very inefficient, especially with regard to O&M of rural water supply and sanitation systems.

In·, the communities have a certain degree of responsibility ranging from participation in labour to payment of services. The government still keeps an important role in the management of the system. This situation, which is now commonly accepted and implemented in many projects around the world, corresponds to community participation but not community management.

In , communities manage their system, but still rely on technical assistance and support. This situation corresponds to community management.

In , communities are autonomous; very few communities in the world have been able to sustain their activities in a completely autonomous way.

The main consequence of this process from government to community level is that it increases the financial, operational, technical, and managerial burden at the local level, which communities do not have the capacity to carry. This process must therefore rely on accompanying measures such as:

· Building the capacity of communities in technical, financial and managerial terms, with awareness of gender questions.

· Reinforcing the role of local authorities in coordination with communities, and giving the technical and financial means to do so.

· Promoting the participation of local nongovernmental organizations and small private firms (formal and informal) in the provision of services (technical assistance, training, repairs, spare parts provision).

· Changing the role of government institutions from provider of services to coordinator and facilitator.

Accompanying measures:

a. Building the capacity of communities
b. Reinforcing the role of the local authority
c. Promoting NGO/private sector participation
d. Changing the role of government

4.2 Changes in the approach

Water supply and sanitation improvements may also be characterized by being either a supply-driven or a demand-driven approach. In the present case, we shall be promoting a demand-responsive approach.

The supply-driven approach (top-down) is based on pre-selection of the intervention area, with village and technology selection criteria based on policies of replication of successful experiences in other countries or projects. This approach can have serious implications for the sustainability of projects, particularly in terms of community acceptance, functioning, use and O&M costs - the community not being involved in any phase of the project cycle.

In the case of a demand-driven project (bottom-up), the problems and needs are identified with and by the communities. This may be preceded by some awareness-raising by extension workers. The advantages are that the motivation of the community to participate in the planning, implementation and O&M phases will be high, and that community-based management will be better accepted and implemented.

A demand-responsive approach (sharing responsibilities) puts the accent on two sides - the need to elaborate projects around a demand emerging from the communities, but also on the capacity of the public and private, formal and informal organizations to respond to this demand. As we have seen in the participation analysis, many actors are involved in the operation, maintenance and management of water supply and sanitation systems.

4.3 Summary of various management options

MANAGEMENT OPTIONS	MAIN CHARACTERISTICS
Direct municipal management
Direct administration	Administration by the municipal service or department, with no autonomous budget. Controlled by the mayor.
Autonomous administration	Administration by the municipal service or department, with autonomous budget and separate services.
Semi-direct municipal management
Inter-municipal administration	Administration agreements between several municipalities, with a coordination unit controlled by the municipalities, for managing the system.
Direct or autonomous administration with some activities delegated to other firms	Administration by the municipal service, with activities delegated under a contractual service agreement to other firms for a specific task, and a limited period of time.
Delegated management
Management contract to a firm or individual	While the municipality remains responsible for the service in investment and tariff setting, it delegates their management to a firm or an individual, under a remuneration contract.
Special management contract to a firm or an individual	Same as management contract described above, but with a remuneration based on a fixed agreement with the municipality and a percentage of the collected tariffs.
Leasing/renting contractual arrangements with a firm	The municipality establishes a contract with a firm, which will not be responsible for the investments, but only for the operation and maintenance of the system, whose remuneration comes through collected tariffs.
Public administration (cooperative association)	Distinct legal status, and financial autonomy. Controlled by the Assembly of Associates (where the municipality is a member among others), with the authorization of the Municipal Council.
Concession to community associations	Associations created by a General Assembly of users, with the authorization of the Municipal Council. It manages and operates the system.
Concession to a private firm or society	Under a contractual agreement between the firm and the Municipal Council, the firm will fully manage, operate and maintain the system, with complete financial autonomy. The firm will invest with its own resources, at its own risks, but the municipality must approve them.
Private management
BOOT contractual agreement (Build-Own-Operate-Transfer). Also possible: BOT (Build-Operate-Transfer); BOO (Build-Own-Operate); Inverse BOOT.	Under a contractual agreement, a private firm is totally responsible for the construction, operation and management of a system, but will transfer it to the municipality at the end of the contract, which is usually long term. For the inverse BOOT, the public authority builds, but the system becomes private at the end of the contract.
Private management with public/private capital	Private company whose shares are public and private; some control is kept at the shareholders’ assembly.
Private management	Private company owns the system and is totally responsible.

As described above, the management options consist in a blend of ownership and responsibilities between the public sector and the private or social sector (social sector = associations). This can be graphically represented in the following way:

Towards more ownership or responsibility of the public sector

1. Direct/autonomous administration 2. Inter-municipality administration 3. Direct/autonomous administration with service contracts 4. Administration with (special) management contracts 5. Leasing/renting contract 6. Cooperative associations 7. Concession to a community association 8. Concession to a private firm 9. BOT (Build-Operate-Transfer) contracts 10. BOOT (Build-Own-Operate-Transfer) contracts 11. BOO (Build-Own-Operate) contracts 12. Inverse BOOT contracts 13. Private company with public/private capital 14. Private company

Towards more ownership and responsibility of the private or social sector

4.4 Issues affecting the choice of management models for the operation and maintenance of rural water supply and sanitation systems¹

¹ Extracts from: Management models for the operation and maintenance of rural water supply and sanitation systems, by Phil Roark. Arlington, VA, WASH Project of the U.S. Agency for International Development, 1993 (WASH Technical Paper No. 71).

The choice of an O&M management model is influenced by several key issues that are listed below and are discussed in detail: capacity of traditional community organizations; key community skills; health education and community participation; gender-balanced development; complexity of technology; availability of spare parts; standardization and local manufacture of equipment; requirements shared with other sectors; capacity of the private sector; cost recovery mechanisms; ability and willingness to pay; national and regional economies; logistics and transportation; government leadership; strength of government agencies and staff; regional autonomy; policies and legislation; communication and information sharing.

Capacity of traditional community organizations

The community is a focal point in the management of rural WSS (water supply and sanitation) systems because it has a vested interest in efficient operation and maintenance. By their very nature, communities are structured to provide leadership, conduct social and religious activities, and attend to legal, property, and economic matters affecting their members. The control of traditional water supply sources and waste disposal sites is part of this structure, since all communities have some type of WSS facilities, however primitive these might be.

Some communities have a highly sophisticated set of rules and responsibilities for managing their WSS facilities. For instance, communities located near rivers may not have a rigorous management system, since water is readily available, but communities with limited water supplies usually have strict rules governing individual rights and responsibilities and impose penalties for violations. Similarly, densely populated communities usually have a tighter management system for sanitation facilities than those more sparsely settled.

While the physical environment dictates the need for certain levels of management, so does the character of the society. There are significant differences between societies and their view of management needs for WSS. Some societies have a strong communal approach to meeting their needs; others prefer an individualistic approach. Some are hierarchical while others are more diffuse in structure. These differences must be considered, and, whenever possible, the traditional management system should be empowered. However, certain technologies may require skills which the traditional management system does not have, and new management models may need to be introduced.

Key community skills

Among the key community skills that must be considered in assessing local management capacities are leadership, accounting, and mechanical aptitude. Leadership is required to organize, motivate, and educate the community. Many decisions require a consensus after the issues and alternatives have been clearly explained. For example, the siting of a well or standpipe could be controversial, since one location will be more convenient to some users only. The level of service and fee structures are questions that deserve wide discussion. Many WSS projects rely upon community participation for the construction of facilities. To marshal this work force requires leadership skills. Often communities can draw on their experience in sectors unrelated to WSS, such as building a school.

Accounting and record-keeping skills are necessary for the proper collection and disbursement of funds. Typically, families in a community pay a flat fee or one that is based on the service received. In some cases, fund-raising such as the sale of crops from a communal field is organized for the WSS facility. Community confidence must be ensured by public disclosure of collections and spending and scrupulous accounting. Further, decisions reached at meetings should be placed on record. In some developing countries where literacy levels in rural areas are low, this is not always possible.

Some mechanical skills within the community are necessary. Depending on the technology involved, these can range from simple caretaker skills to repair skills for sophisticated machinery. Deep wells, for example, may be the only option for supplying potable water to a community, but the pumping requirements may be beyond local repair capability. In such cases, the community will provide only caretaker and operational labour and call upon outside assistance for repairs.

Training is one way of upgrading community skills. Of course, there are limits to training adults with a low level of literacy, but for most areas of community need, instruction within these limits can achieve adequate results. Many projects provide WSS management committee members with training in the maintenance and repair of pumping equipment.

Health education and community participation

In addition to technical and management training, the community’s understanding of health, hygiene and community participation is important. This understanding may vary considerably from region to region. For a WSS facility to be effective it must not only be functional but also be used. Many properly designed WSS facilities have not been utilized sufficiently or correctly due to ignorance of their health benefits. When poor quality water is more easily available, good quality facilities are often allowed to fall into disrepair. Sometimes clean water at the distribution point is polluted by the user through improper transportation and storage.

Other areas of health awareness, particularly child survival activities, are also important. Widely disseminated information on the benefits of immunization, oral rehydration therapy, breastfeeding, and nutrition will reinforce understanding of the causes and effects of disease and lead to effective use of WSS facilities. Female literacy is a particularly important determinant of community health, since women are the key implementers of health practices. Since WSS projects usually are cited as a priority need among potential beneficiaries, they often serve as a catalyst for the introduction of other health interventions.

Gender-balanced development

Women are primarily responsible for obtaining and using water, but generally have not been given much say in decision-making. The result has been facility designs and management structures that hamper effective use. A gender balance of roles and responsibilities between men and women is therefore important in the design, construction, management, and utilization of WSS systems.

The role of women as decision-makers varies among societies. While there is general progress in increasing their participation, some societies maintain barriers that must be respected in designing management systems.

Complexity of technology

Technologies for rural or periurban water systems range from capped springs that feed gravity distribution systems, to deep wells equipped with electric pumps and a distribution system consisting of a storage tank and pipelines, to household connections. Sanitation systems in rural or periurban areas range from simple latrines to flush toilets with cesspools. Many of these technologies have been in use for decades with only minor changes. However, research has produced many new improvements adapted to the needs of developing countries. For example, handpumps are now designed to be more robust and easier to repair. Drilling rigs for shallow wells have been reduced in size and cost. Pumping systems relying on wind and solar energy have been developed. Low-cost latrines that are sanitary and well ventilated are now easily available.

Given this range of technological choice, the fundamental maxim is that the technology should be compatible with the beneficiaries’ ability to handle it. If repairs are too complex for them, the next tier up must assume this responsibility. Some communities may be able to repair part of a system, such as a pipeline, but not an electrical generator. In this case the responsibility would have to be shared. Generally, it is preferable for the beneficiaries to be primarily responsible for managing the system even if they require outside mechanical assistance.

Availability of spare parts

The availability of spare parts has been a recurring problem for many WSS projects. Some have installed hundreds of handpumps and presumed that market mechanisms would impel local hardware dealers to provide the needed parts. In certain countries government agencies retain this responsibility, in others they import spare parts and rely on a commercial system for distribution. In any case, the laws of supply and demand do not always work as expected. Too often the systems fail because spare parts are simply inaccessible.

Standardization and local manufacture of equipment

The installation of pumps made by several foreign manufacturers has led to a chaotic situation in many countries. Spare parts are often not available and repairers are not familiar with certain pump designs. This situation is largely the result of bilateral aid which restricts procurement to pumps manufactured in the donor country. Some developing countries, in response, have insisted on specifying which pumps they will accept.

Many of these countries are now developing an indigenous capacity for the manufacture of plastics for pipes and well casing. Local manufacture also eliminates the need for hard currency, which is always in short supply.

Requirements shared with other sectors

Procurement problems often can be eased by considering the requirements that the WSS sector shares with other sectors. The irrigation sector, for example, uses considerable quantities of pumping equipment, pipes, and related materials. The housing sector uses faucets, toilets, pipes, and building materials. The market for equipment in one sector can influence decisions in another sector. Thus, a new irrigation project could determine the type of pump the WSS sector would select for a project in the same region.

Capacity of private sector

The private sector may have a role in the design, construction, maintenance, and repair of WSS facilities. In urban areas there is seldom a question of its capacity; in rural areas its presence may be limited or nonexistent. Some projects have trained repairers to maintain several facilities in a region. Others have presumed that a sufficiently large market will in itself attract repairers to the target area. This generally is true of WSS facilities near urban centres.

If the profits to be made are reasonable, private sector participation is usually assured. Some projects have established prices for services and parts to protect the communities from being cheated. But prices must be fixed with due regard to adequate financial returns in the context of the local economy. Tasks such as well drilling and the construction of storage reservoirs are best contracted to the private sector. Many projects arrange franchised regional repairers for the equipment installed.

Cost recovery mechanisms

Government policies requiring cost recovery in WSS projects have two objectives: to make the beneficiaries pay for the benefits they enjoy; and to ensure that the beneficiaries gain a sense of ownership and thereby a concern for preserving the facilities. The costs of many rural WSS projects are beyond the means of the communities they serve, and the government or a donor subsidizes all or part of these costs. The philosophy behind this is that state revenues are to be distributed for the national good, and that rural health and living standards are entitled to special attention if this goal is pursued. However, if a project is to be sustainable, the beneficiaries must be able to fully cover all operation and maintenance and replacement costs.

Among the cost recovery mechanisms employed in WSS projects, perhaps the most common is a flat monthly fee levied on each family or household. In arid zones, where water is at a premium and conservation is essential, water typically is sold by the unit volume. When water is pumped by a fuel-driven engine, volume sales are the norm. In areas where cash is not in general use, communal sales of agricultural products are earmarked for the WSS system. Some communities insist on payment from every consumer, while others may provide free water to the very poor. In some notable instances, communities receive funds from richer members who have moved to the city or to foreign countries.

Ability and willingness to pay

The ability to pay is a function of disposable income and depends on the absolute wealth of the wage earners in a household. WSS interventions must be scaled to a level compatible with the ability to pay.

Willingness to pay is a different matter, influencing all expenditures including that for WSS service. Where there is no alternative water choice, the willingness to pay may be quite high, resulting in vastly inflated prices. Thus, water vendors in peri-urban areas often charge several times the price that is paid in the adjacent urban zone. In contrast, improved water supplies may not be used if there are streams nearby and the cost of water from the improved source is considered high. Water quality is often ignored if water can be obtained free from an unimproved source. In societies where women control money, they are often more willing to pay for water than men are, realizing the benefit of a clean and convenient source. For sanitation facilities, convenience and privacy are paramount. Dwellers in dense housing neighbourhoods appear more willing than their rural counterparts to pay for latrines or toilets.

Because of difficulties with payment, many projects require funds to be collected in advance for O&M, and sometimes for construction, as evidence of the community’s willingness to participate. In other cases, potential participants are surveyed to determine their willingness to pay. These surveys require the use of appropriate sampling techniques to ensure accurate answers to delicate questions related to personal financial preferences.

National and regional economies

Many developing countries have high rates of inflation, cost of living, and unemployment, all of which have a significant effect on O&M management. High inflation requires careful attention to budget planning. Many meticulous plans have crumbled because of the loss of buying power by local currencies. Rapidly rising prices of basic commodities also plague certain countries. Fuel prices are often critical for WSS projects that use engines for well drilling or pumping.

Unemployment can create a large labour pool for labour-intensive tasks such as the digging of a pipeline. This lessens the need for expensive machinery and places responsibility in the hands of the beneficiaries. Some communities carry out such tasks without remuneration as their contribution to the project. These tasks should be arranged to coincide with seasonal levels of unemployment, so that they do not interfere with the regular agricultural cycles for planting and harvesting, when everyone is busy.

Some countries have regional pockets with distinctive characteristics that set them apart from the national economy. These may be areas of high poverty which lack natural resources, or they may border a country that has a more developed economy and thus be in a more favourable position to support development projects.

Logistics and transportation

Isolated areas are difficult to reach because of long distances, and bad roads will add to project costs and increase the uncertainties in planning. These matters will require special attention in the logistics of communication and transport of supplies.

Government leadership

The strength of government leadership in the WSS sector is an important factor in selecting a management model. However, it should be noted that most countries are now going through a process of decentralization, which gives a new perspective to the role of the government. This role is changing from a supplier of services to that of sector coordinator and facilitator. Some prudence is necessary, however, in evaluating public pronouncements. It is not uncommon for politicians to develop platforms that call for improvements in the WSS sector. Some governments take a paternalistic attitude to providing for the people’s welfare.

Visible and active leadership is needed to bring issues relating to WSS to the forefront. Where government leadership is lacking, more emphasis must necessarily be placed on management approaches adapted to fit local conditions.

Strength of government agencies and staff

Institutional effectiveness is a critical factor in the sector and is influenced particularly by the organizational framework and the quality of the staff. The organizational framework should encompass all the components of the sector from planning and design to operation and maintenance, with support for programmes of health education and community participation. There should be clear lines of authority and responsibility, and when several government agencies are involved, coordinating mechanisms are essential. Often the Ministry of Public Works and the Ministry of Health are each assigned special tasks: the former is responsible for constructing the systems, while the latter is responsible for health education and community surveys. Coordination is crucial but difficult unless there is a formal organizational agreement and framework. Extension agents are the vital link between the agency and the community. There must be enough of them to cover vast rural areas, and they must have adequate transportation and be skilled in community outreach techniques. Another important requirement for a successful agency is a budget large enough to carry out the mandate, including budget lines for staff salaries, administration, equipment, transportation, and training. Attractive salaries and benefits are necessary for retaining good workers since the private sector often competes for their skills.

Regional autonomy

Many countries have wide regional differences in climate, topography, land use, social and religious customs, economy, and access to services and materials. Climates may range from tropical to arid, requiring significant differences in the approach to WSS projects. Mountainous regions may offer abundant spring development, while flat lands may require deep drilling. Local cultures can differ considerably and can be separated by their beliefs and geographical distances. Some regions may have a relative abundance of natural resources. In large countries travel to outlying areas may be arduous. All these differences are conducive to the creation or strengthening of regional administrations. Decentralization brings power nearer to the beneficiaries. Central control of the WSS sector in countries with significant regional autonomy can be detrimental to development.

Policies and legislation

Without sound policies and legislation, there is little chance for significant WSS development. Policies must express government goals and objectives, and issues must be clearly defined. Policies governing the following issues are particularly important:

· the responsibilities of the communities and their ownership of the WSS systems;
· technology choices affecting equipment standardization and the procurement of spare parts;
· the role of the private sector;
· cost recovery mechanisms and fee structures;
· the role of government agencies and the scope of their support.

The application and enforcement of government policies and legislation must be judged by the results. Comparisons between stated goals and actual outputs offer useful insights.

Communication and information sharing

Communication and information sharing spring from a commitment to the process. Objectives can be met only if adequate information is available at all levels from the communities to the central government. All players within the sector should be fully aware of policies, legislation, decrees, administrative decisions, and any other pertinent matters. While the lack of technological hardware sometimes impedes communication with distant points, more often it is a lack of will that is the cause.

Mass communication techniques such as radio messages in local languages have been successfully used to inform dispersed populations in rural areas. Frequent visits by extension agents to the communities are also an important means of communication, as are audiovisual aids such as posters, bulletins, and videos.

4.5 The importance of communication¹

¹ Extracts from: Study of the institutional arrangements for the provision of rural water supply and sanitation services in Mozambique. Toronto (Canada), Cowater International Inc. (with the National Directorate of Water of Mozambique in Maputo), 1993.

One area often overlooked in planning a water and sanitation programme is the need for a clearly articulated and systematic communication strategy. The inclusion of a planned communication strategy not only recognizes the necessity of communicating with people, it articulates the needs of each stakeholder and helps find a way to bridge the gap between planners, government agencies, the private sector and communities.

Communication can also both complement and, in some cases, substitute for the regulatory work. It can complement because the design and successful implementation of a rural water policy requires a level of dialogue between those who design or implement the policy and those who are addressed by it. It substitutes for other instruments when it motivates people to change their behaviour voluntarily.

Communication is not the same as “telling”; to “communicate” implies a two-way process. A communication strategy must include the opportunity for feedback from the audience to the sender and back again. When people are allowed to participate in the process of defining and implementing the rules for their own water strategy, the potential for sustainability is accelerated. A corollary to this is the need to “listen”, and therefore communication requires “listening”. If the messages coming back across the feedback loop are not listened to (and acted upon where appropriate), communication is not taking place.

In order to be effective, a communication strategy must be deliberately and systematically planned. While most programme planners assume that some level of communication will take place, whenever it does, it does so on an ad-hoc basis without necessarily reflecting the communication needs of different groups of people, nor does it facilitate a two-way dialogue between planners and people.

A communication planning sequence can include the following activities:

· Identification and formulation of key issues to be communicated

· Identification of target audiences

· Research on current knowledge, attitude and practice of each target group which will help to promote the required future change in behaviour

· Development of messages based on current knowledge and behaviour

· Pre-test messages Identification of appropriate communication channels

· Preparation of communication materials

· Pre-test of materials

· Training of communicators

· Development of indicators to assess impact

· Implementation of communication programme

· Assessment of impact and adjustment of programme design.

Unit 3: Community management

1. Outline of session

· Objectives

Participants understand the concepts of community participation and community management

Participants are familiar with the pros and cons of degrees of community involvement in management

Participants are aware of the resistance to change and how to deal with this when working with communities

Participants have identified ways to approach the community and facilitate community management

· Methodology

1. Introduction
2. Discussion on: “What is a community?” and “What is management?”
3. Role-play on resistance to change and ways to deal with it
4. Participatory lecture on community management
5. Concluding exercise on the prerequisites for community management

· Materials

Ö Overhead transparencies
Ö Overhead projector, screen or white wall
Ö Flip chart and markers

· Handouts

Ö Copies of transparencies
Ö Exercise sheet
Ö Extracts from background information

2. Notes for the facilitator

Introduction

One major element of the concept of sustainability is community management. This session highlights this element, which will be followed by a session on gender issues and another on how to approach and work with communities.

Discussion on “What is a community?” and “What is community management?”

It is important first to assess the participants’ familiarity with community management approaches by having a discussion. The concept of community management contains the word “community”. Too often the community is taken for granted. Support and development agencies just assume that the people they support form some kind of a ‘common-unity’, that is a group of people sharing common values and interests. Too often it is assumed that people living in a specific geographic unit or administrative service area (e.g. a district, a subdistrict or ward, a village, a village quarter, or a group of households sharing a water point) form a homogeneous group. Is this true?

Participants should reflect on this by asking themselves questions like: “Are you a member of a community? Which one? Are you a member of other communities? Which ones?”

Similarly a rural community does not necessarily consist of a homogeneous group of people. Participants can identify typical subgroups within a community (e.g. rich/poor, peasants/cattle owners, women/men, groups using water for different purposes, polluters/nonpolluters, people living in the centre/in the periphery, and highly/poorly educated people).

Support agents should be aware of this and take into account these differences within a ‘community’ when promoting community-based management.

In the term community management is also the word “management”. It is important to make some clear distinction on what is meant by management in “community management”. The facilitator therefore asks the participants the question, “What does management mean in community management?”, and highlights the difference between community participation and community management. The overhead sheets and background information provide more information on this matter.

Role-play on resistance to change and ways to deal with it

This exercise has several objectives: a) the receptivity of a community to a water project can be very different; b) as communities are not all the same, it would be wrong to apply only one type of approach to all communities; c) there are appropriate responses to each type of community.

The role-play should be prepared beforehand. It is in fact both a role-play and a presentation, and basically involves two persons: 1) an “engineer”, who represents the project assistance, and 2) a “peasant” (preferably a woman), who represents the community. The latter can wear traditional clothing or the traditional headgear of a peasant.

The facilitator prepares in advance some cards, which correspond to the various steps of the role-play/presentation, similar to that shown in the overhead sheet (Resistance to change continuum). On a board should be drawn only the “climbing” steps. The seven steps will be filled in gradually.

Step 1: The community does not see the need for any improvement; there are no problems!

· Cards needed:

No!

and

Awareness-raising

· Role-play: The engineer arrives in the community very happy to have something to propose to them. He briefly presents to the “peasant” (who looks quite surprised!) his water supply improvement project. But soon, the peasant manifests her opposition, and says there is no problem with the water they drink, that they have been drinking this water for generations, and that they don’t need this project. She throws the engineer out!

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “No!” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in this situation is to organize “awareness-raising” activities, puts up the “Awareness-raising” card and briefly tells them what this means.

Step 2: The community sees the problem but it feels that it is not their responsibility

· Cards needed:

Maybe!

and

Mobilization

· Role-play: The engineer arrives in the community and explains briefly what the project is about. This time, the peasant says that the project looks interesting but it is not their responsibility; they pay enough taxes to the government and it is up to the government and the project staff to take this responsibility. Again the peasant throws the engineer out!

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “Maybe!” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in this case is to organize mobilization activities, puts up the “Mobilization” card and briefly tells them what this means.

Step 3: The community sees that there is a problem but has doubts about the proposed project

· Cards needed:

Doubts!

and

Information

· Role-play: The engineer again arrives in the community. The peasant recognizes him and says that they now see that there is a problem in their community concerning safe water supply, and that they accept that they will have to take some part of the responsibility. But they have strong doubts about the proposed solution, and they don’t understand why this is proposed.

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “Doubts!” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in such cases is to organize participatory information activities, puts up the “Information” card and briefly describes what this means.

Step 4: The community sees that there is a problem but is afraid of the changes that it might bring

· Cards needed:

Afraid

and

Demonstration

· Role-play: The engineer arrives in the community, and the peasant seems somewhat reluctant to accept the project, because they are afraid of all the implications that it will have, especially the changes in the community’s present habits. The peasant thanks the engineer, and says that sometime in the future they will accept it.

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “Afraid” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in such a case is to organize demonstration activities, puts up the “Demonstration” card and briefly explains what this means.

Step 5: The community sees the problem and is willing to take responsibility, and feels somehow that the option is appropriate to their situation, but they don’t know enough about it yet

· Cards needed:

What?

and

Training

· Role-play: This time, when the engineer enters the community the peasant is much more welcoming and tells him that they like the project but feel that they need to know more. The engineer then sits down with the peasant in order to organize the timing of the training events.

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “What?” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in this case is to organize training activities, puts up the “Training” card and explains briefly what this means.

Step 6: The community is ready for a change, accepts the responsibility, and requests that the project be implemented

· Cards needed:

Yes!

and

Implementation

· Role-play: The community warmly welcomes the engineer with simulation of a party, and is ready to move ahead with the project. Some mention should be made about the contribution the community has agreed to make, in terms of cash or labour, as well as in terms of responsibilities.

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “Yes!” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in this case is to organize the implementation of the project, puts up the “Implementation” card and briefly explains what this means.

Step 7: The community has been involved in the implementation of the project and is willing to demonstrate to other communities the benefits of such a project

· Cards needed:

Yes, and...

and

Duplication

· Role-play: The engineer and the peasant are seen discussing how successful the project has been. The peasant says that if other communities around them have the same problem, she would be willing to collaborate with the engineer to demonstrate to them the positive benefits of the project.

· Question to the participants: “Is this a common situation?”; “Can you give an example?”

· Presentation: The “Yes, and...” card is put on the board at the level of the corresponding step of the drawing. The facilitator explains that the best way to approach the community in this case is to organize the duplication of the project, puts up the “Duplication” card and briefly explains what this means.

Participatory lecture on community management

The facilitator then proceeds with an interactive presentation, using the following overhead sheets:

· Why involve communities in the management, operation and maintenance of rural water supply and sanitation?

· Goals of community management
· Characteristics of community management
· Forms of community management
· Typical tasks of a water committee
· Composition and legal status of a water committee.

Concluding exercise on the prerequisites for community management

The facilitator asks the group, “What are the main elements which should be looked at in order to reach sustainable community management?” The facilitator writes down their answers on the board, using as a reference the list provided in the overhead sheet.

3. Overhead sheets: Sheet 1

What is a community? · Is a community a group of people sharing common values and interests? · A community can be heterogeneous in various aspects · A community does not necessarily live in one contiguous geographic area · People can be a member of a number of communities · A ‘community’ can also consist of groups of people with divergent values and interests: rich/poor peasants/cattle-raisers women/men people using water for different purposes polluters/nonpolluters people living in the centre/in the periphery highly educated/low educated

Overhead sheet 2

What is management? · Planning Development of a strategy, objectives, and results to be reached - with what resources and in what time? · Organization Distribution of responsibilities and tasks · Decision-making Taking decisions on regular activities, as mandated · Coordination Harmonization of contacts between various actors, and communication · Control Supervision and enforcement · Monitoring Regular check and problem-solving

Overhead sheet 3

What is community management? Social management (all aspects linked to the organization of the community) Technical management (all aspects linked to O&M technical activities) Financial management (accounting, tariff setting and all aspects of O&M cost recovery)

Overhead sheet 4

(adapted from Community Water Supply and Sanitation Conference material, May 1998, Washington, DC, World Bank-UNDP)

What is the difference between community participation and community management?
Participation as a form of 'cheap labour'	Participation as 'cost-sharing'	Participation done as a 'contractual arrangement'	Responsibility in 'decision-making'
Community's contribution · Free construction labour · Free local raw materials	Community's contribution · Token contribution in cash or in kind towards maintenance	Community's contribution · Volunteers in committee · Volunteer as caretaker · Commitment by leaders · Contributions	Community's contribution · Community fully in charge with possible subsidies for capital investments; part of running costs/support
Community's involvement Only carrying out work	Community's involvement Only some community members	Community's involvement Not all community members; contract can be commented on	Community's involvement All community members, including women
Role of "outsiders" Idea, planning and design	Role of "outsiders" Decide on contribution level	Role of "outsiders" Develop ideas and contract	Role of "outsiders" Facilitation, advice
Aim/Benefit Lower cost	Aim/Benefit Lower cost Cost recovery	Aim/Benefit Minimal local management infrastructure (local leadership, local committee, local maintenance volunteer)	Aim/Benefit Genuine commitment and support from whole community through participatory community education and involvement in decision-making from the start
Assumption Pride will lead to maintenance	Assumption Contribution indicates service is valued and shows commitment	Assumption Legitimizes the project; local management; technology transfer through contract	Assumption Long-term benefits and increased use and sustainability justify high investment (staff, time, costs)
Limitation Not a community priority Contribution not voluntary Use and maintenance may vanish	Limitation Commitment only from some Not all involved, e.g. women, the users; system rejected if major breakdowns occur	Limitation Not all villagers may be involved in the decision. Contract not fully understood. Selection of committee and caretaker too hasty; willingness to pay can be poor after some time	Limitation Requires highly trained and motivated staff; Difficult, time-consuming, expensive

Overhead sheet 5

Ways to approach a community Adapted from SARAR: Resistance to change continuum

Overhead sheet 6

Why involve communities in the management, operation and maintenance of RWSS? · Building on existing local knowledge and management capacities · All social groups feel concerned and can participate · Addressing the true needs of community members · Solutions acceptable to community members · Solutions adapted to community capacities · Increased community commitment to improve the situation · Better understanding of the causes and effects of problems · Empowering the community and reducing dependency · Increased sense of ownership and responsibility · Increased self-consciousness and confidence in own capacities · Direct interest to have a system well maintained · Possible improvement of willingness to pay · Reduced overall and government costs · Improved reliability and sustainability of systems

Overhead sheet 7

Goals of community management · Improved reliability and sustainability of the system · More appropriate choice of technology and service levels · Reducing investment and operation costs for both the support agencies (government) and the communities · Increased confidence and problem-solving capacities for further development activities · Promoting gender-sensitive solutions · Contributing to democratization and equity in the development process · Increased health and socioeconomic well-being

Overhead sheet 8

Characteristics of community management Community is responsible for: · Maintenance and repair · Local management and organization · Financing Community decides on: · Technology choice · Service level · Form of local organization · Local rules and regulations on use · Financing mechanisms · Sanctions Community controls: · Ownership of the system · Outcome of decisions · Quality of work done and functioning of the system

Overhead sheet 9

Forms of community management The forms of community management vary according to the size of the community, the technology used, the local context, and national legislation. Basically, community management operates through a Committee whose members are elected by a General Assembly of users. The following forms can be found: · Tap or Neighbourhood Committee Responsible for operating and maintaining a specific water point. · Water Committee Responsible for all activities (managerial, operational, technical and financial) of a particular scheme, which covers a larger area than a neighborhood and possibly the whole community. · Village Association · Responsible for all development activities concerning the village, and includes overseeing water and sanitation. · “Coordinating” Water Committee Responsible for managerial and financial matters and coordination of several smaller committees (tap/standpost or neighbourhood committees), which retain responsibility for operation, maintenance and collection of fees. · Water Committee contracting a private body Responsible for general management and control, but contracts a private body (an individual, a mechanic, a group of artisans, or a firm) to operate and maintain the system. · Delegated responsibility by local authority Ownership and decision-making are held by the local authority, while the water committee operates and manages the system. · Inter-community Federation of Committees When several communities share the same pipe source or water source, each community has a water committee to operate and maintain its own water point and collect fees, part of which goes to an Association or Federation of Committees for maintenance of the whole system (pipes, source).

Overhead sheet 10

Typical tasks of a Water Committee 1. Represents the community in contacts with support agencies 2. Coordinates with other community institutions and decision-making bodies 3. Ensures efficient and effective overall management of systems: · takes up assigned roles and tasks · ensures equity · organizes contributions · organizes effective O&M · ensures accurate financial management · promotes hygienic and effective use of facilities · holds regular committee meetings · ensures good communication at all levels · provides information and feedback · collects information.

Overhead sheet 11

Composition and legal status of a Water Committee The composition of a Water Committee will vary according to its management and operational mandate. Generally it is composed of a President, Vice-President, Treasurer and several representatives of the users, with a balance between posts occupied by men and by women. If the community is directly responsible for the technical operation and maintenance of the system, the Committee also includes the operator and/or caretaker. In many countries, the Water Committee does not have proper legal status. This makes it vulnerable in situations with material, financial, contractual or legal problems. The following types of legal status are found: · The Municipality officially registers the Water Committee If it has been elected by a General Assembly of users, a “constituting” Act must be produced by the Assembly · The Water Committee is registered with the Chamber of Commerce as a non-profit-making Association · The Water Committee is registered with the Chamber of Commerce as an Association with an economic interest It can then operate as a concession or under contractual arrangements with local authorities · The Water Committee operates under the legal mandate of a Development Association

Overhead sheet 12

Prerequisites for community management · Demand to improve the system · Policy and legal framework for promoting community management · Effective external support, if required · Information on system options, as well as on cost and technical implications of each system, must be available to the community · Technology options must be selected with the communities, and adapted to the community’s capacities and needs · The community understands the implications of choice in terms of responsibilities and tasks The community is willing to pay · The community has decision-making power · The community has access to required capacity-building support · There should be a policy framework to permit and support community management

4. Background information¹

¹ Most of this background information has been extracted from: “Putting Community Management in Place” - Four years of experience with improving water management in rural communities - Community Managers for Tomorrow. Document N.1, IRC, 1998.

4.1 The concept of community management

Community management has different connotations in the literature. This was also the case with community participation, the definition of which already in 1982 ranged from the provision of free community labour inputs in government projects, to autonomous self-reliant development. Despite or perhaps because of the unclear definition, community management of water supply and sanitation systems has increasingly been seen as a fundamental option for sustainable development. Community management of services, backed by measures to strengthen local institutions in implementing and sustaining water and sanitation programmes, was one of the guiding principles adopted in the New Delhi Consultation in 1990 and reconfirmed in Agenda 21.

Why is it believed that community management of water supply and sanitation systems will be any more successful in achieving sustainable coverage than the top-down approaches from the past? Experience in many developing countries shows that even very good water agencies cannot successfully operate and maintain a network of widely dispersed water systems without the full involvement and commitment of the users. Despite the best endeavours of central agencies, the overstretching of staff, transport and budgets has led to breakdowns in the system, dissatisfied consumers and demoralized agency personnel. Many governments are becoming convinced that centralized systems cannot deliver the required services for the sector. This resulted in a strong push towards decentralization which started in the late 1980s.

Hopes are now high with respect to community management, because it is believed that this approach seeks to make the best use of the available resources in the community with some support from government agencies. It puts the people in charge of their own water systems in a flexible partnership with the supporting agencies. Communities take on more tasks and responsibilities, and relieve the agencies of all routine management and maintenance duties. This frees the agency’s resources, which can be used to reach more people. Successful community management is claimed to build community confidence and stimulate wider development efforts. It is also stressed that there is still a lot to learn.

Much of this learning is at the level of the agencies and institutions, which often hold the purse strings and so can dictate the course of development. Increasingly, governments and institutions are trying to adopt a more integrated and demand-responsive approach. This is stimulated by the growing pressure to focus on sustainable functioning and effective use of water supply and sanitation systems. Another reason why government agencies are searching for alternatives and are amenable to participatory approaches is that, over the past two decades, blueprints of development strategies have been shown to be ineffective in meeting the basic needs of large numbers of marginalized, vulnerable people. Thus public sector agencies are showing a growing interest in participatory approaches that involve the community in their attempt to do more with fewer financial resources. They are developing, for example, links with NGOs that used similar types of approaches.

In this context, it is surprising that agencies do not have internal mechanisms to learn from their experience with communities, to learn how to work with them, and to share this among their staff. What is needed is an approach to learning that allows the development of new methodologies and promotes change in the prevailing attitudes, behaviours, norms, skills and procedures within the agencies.

Not only do the agency staff have to learn to work with the communities and overcome the top-down approach from the past, but the communities also must come to grips with working with the agency staff in a horizontal relationship. In the future, the push for change will be more radical, with increasing decentralization and with communities who will bear a larger share of the cost. Then the paradigm shift from communities participating in agency projects to agencies participating in community projects will become even more important.

According to Franz Gahwiller of SKAT (Swiss Centre for Development Cooperation in Technology and Management), “... we usually do not allow for the required time to initiate a process of change. Such a process may take years and years, but we want the communities to manage their systems as soon as possible. Moreover, the societal environment for such processes of change needs to be democratic.”

4.2 Some findings from the field

In 1995 a participatory action research (PAR) project on community management for rural water supply was initiated by IRC together with partner organizations in six countries (Cameroon, Colombia, Guatemala, Kenya, Nepal and Pakistan). Local research teams worked closely with community members in 24 communities to better understand community management and to explore possible improvements. The essence of this project is to help communities to gain a better understanding of the problems they face and to let them become a key factor in problem-solving. “The knowledge we gain from this ‘research’ is much more valuable than gifts. It is something we keep for life” (villager from Nkoundja, Cameroon). Community members thus become catalysts and in beginning to understand and discuss their problems, they create the space to allow a range of actors to participate and express their views.

A first assessment of the situation in the six countries indicates that:

· In each country, community management of completed rural water supply systems is the accepted national policy, but implementation is not universal and each agency has its own procedures.

· None of the governments so far treats communities as future managers in the sense that they can make their own choices from a range of options, each with their own pros and cons. Nor do they train communities for all community management aspects. Training is focused on technical tasks and book-keeping, and is mostly given to men.

· Experience with existing community managed water supply systems varies. In Cameroon, 438 projects that were built and managed by the community showed a breakdown rate of 9%, whereas many others built without community involvement are no longer operational. Other reports indicate that a number of community managed systems do not function well, partly for technical and ecological reasons, and partly because of poor administration and lack of management training and back-up support.

· A considerable number of community members are not served because of poor water distribution and poor network management. Several of these persons contributed to the construction of the system in cash or kind, but do not obtain the benefits.

· Although existing systems have technical, managerial and socioeconomic problems, the communities only mention the technical problems. The other problems are revealed only after further probing and discussion.

· Record-keeping of finances and of agreements made in meetings is very limited and erodes the confidence of the community members. There is a similar weakness in communication and information-sharing which are mainly in the hands of the local leadership.

· Many ESAs (external support agencies) stipulate preconditions for future management, usually the formation of a water committee with some women represented. However, little is done in developing management tools or management training.

Another participatory evaluation of 40 community managed water systems in Ecuador revealed that the systems do provide water but are in need of both technical improvements and better management.

On the positive side, the above-mentioned PAR project already shows that working in a horizontal way with the communities and helping them to clarify their problems is a very powerful tool for change. Communities in Kenya, for example, were initially timid but are now enthusiastic about the management of the water system, and are undertaking tasks in a transparent way. An overall picture is emerging that communities are capable of managing their water supply systems, but they need back-up support. The agencies also clearly need support. Strategies and tools for enhancing management capacity in communities are developed and tested in the project, which now offers a flexible support approach, called Participatory Action Development for community management. This approach aims at responding to the concrete needs of communities related to the management tasks and skills in their public services, and at finding solutions to problems and conflicts in the management of rural water supply by communities.

4.3 “Revisiting” community management

Instead of trying to refine the existing definitions of community management or add another version, there seems to be an easier way to increase our understanding of what it encompasses. Community management deals with two dimensions: communities and management, and the relation between them.

Communities are groups of people with common but also conflicting interests and ideas and different socioeconomic and cultural backgrounds. The identity of the people in the communities is shaped by their history and their socioeconomic and environmental conditions. Some of them, often the economically better off, may be better informed and know more about the world, but on the other hand, may have certain interests in keeping the status quo and therefore may not be willing to solve certain problems. Women may have different interests from men and their views may not have been heard in the past, or their position may make it difficult to achieve changes on their own. Men, women and children have different needs, different access to resources, and different areas in which they can take decisions. Yet, all of them have equal rights to contribute to and benefit from development activities, thus making it necessary to strike a gender balance in programme activities, problem identification, conflict resolution, and joint management of common interests.

The water supply system may be one such common interest, but at the same time can be a major source of conflict. This brings us to the dimension of management. Management is a concept which is very much being developed and is changing to entail sharing of responsibilities in new ways. It is becoming more focused on learning, creating an enabling environment, and building trust, and places strong emphasis on communication and holistic approaches. A collective learning process starts with dialogue, or an open exchange of ideas in the group. This permits the participants to discover their potential and perspectives. This dialogue differs from the more common discussion, which has its roots with ‘percussion’ and ‘concussion’, literally a heaving of ideas back and forth in a winner-takes-all competition. Team learning develops the skills of groups of people to look beyond individual perspectives. It requires a positive learning environment. This is not easy, particularly in a politicized environment such as the water and sanitation sector. Not only are good facilitation and a variety of techniques required, but also leadership training for group members and a review of the historical developments with the community. Equally important is the need to review, with the sector staff, the social missions of their institutions and their own aspirations. This requires building confidence and trust, helping them to become self-confident and gain self-esteem. A guide to this process was already provided in ancient China (c. 700 BC):

“Go to the people, live among them, learn from them, love them, start with what they know, build on what they have. But of the best leaders when their task is accomplished, their work is done, the people will remark: We have done it ourselves!”

The community is not the only actor, but can benefit from partnerships with water sector institutions and the private sector. There is no blueprint on what the inputs of different actors can be in the different project stages, but what may be expected is that the role of the government or NGOs who were initially the project leaders will reduce over time, and the role of the community water enterprise (water committee, users’ association, private enterprise, etc.) will increase. The different actors or their representatives thus have to come to an agreement on what the specific contributions and responsibilities will be over a period of time. This they can only do on the basis of informed decision-making which particularly addresses the expected service level, and the long-term management of the system which is still the weakest issue today. The discussion may include possible future extensions of the system, not in great detail, but the basic concept should be clear.

4.4 Some concluding remarks about community management

Although a paradigm shift seems to be emerging, the principal challenges to put community management into mainstream practice are still huge. Currently in most countries, community management of rural water supply systems is the accepted national policy. However, there is still a considerable gap between policy and practice. In fact, communities are not treated as future managers in the sense that they can make their own choices from a range of options. Nor do they get the opportunity to learn the required management skills.

This and the lack of back-up support for problems going beyond the community level are important reasons for the sub-standard performance of many systems. This will continue to be the case unless the managerial aspects are better taken in hand and practical management tools are developed together with communities. Management skills also include handling of conflicts because communities consist of people who do not necessarily share the same interests and values. Often conflicting interests exist both within the community and between the community and outsiders.

Gradually we see agencies starting to participate in the development endeavour of the communities instead of the community participating in the agency’s projects. This paradigm shift, however, will only materialize if new learning approaches and participatory methods are adopted in challenging institutional settings where community knowledge and institutional knowledge are equally valued and people start to respect each other’s views.

The partnership approach, for agencies, means that new coherent strategies and methods are needed to further build management capacity in the communities, and through dialogues with them. This also implies that agencies need to make the necessary adjustments and strengthen their own capacity to provide effective support to the communities.

Also institutional change is needed which allows for harnessing the partnership between communities, governments, NGOs and the private sector. The relationship should be transparent, based on mutual understanding and appreciation of the different ‘social’ missions of the institutions.

For a community to share management responsibilities to a greater degree, stake-holders should be allowed to learn about the system in all its aspects. Support strategies should create sufficient learning opportunities and start a process of dialogue for all involved. The challenge is how to make possible this continuous process, knowing that ‘each place, each culture, each experience requires its own approach’.

Unit 4: Gender awareness

1. Outline of session

· Objectives

To clarify the concept of gender and its importance in water supply and sanitation projects

To raise awareness on how to develop and apply a gender approach for operation and maintenance

· Methodology

1. Introduction
2. Exercise on the concept of gender
3. Focused discussion on the relevance of a gender approach
4. Interactive presentation on developing an O&M project with a gender approach
5. Group exercise on development of a gender approach

· Materials

Ö Overhead transparencies
Ö Overhead projector, screen or white wall
Ö Cards (thick paper)
Ö Flip chart

· Handouts

Ö Exercise sheets
Ö Copies of transparencies and background information

2. Notes for the facilitator

Introduction

The purpose of this session is to bring into the open the differences between women and men, and to find solutions to problems of inequality based on mutual understanding. It involves identifying gender differences and seeing how they led to inequalities of power, which created obstacles for women’s full participation in the management of water supply and sanitation programmes.

Some participants may be a little resistant in accepting gender equality because it goes against their own attitudes towards men or women. One suggestion for overcoming this resistance is to highlight examples in our daily lives where this issue has evolved within the last decade or two.

Exercise on the concept of gender

The facilitator distributes one red card (representing men) and one blue card (representing women) to each participant, and asks a series of questions relating to O&M activities (see overhead sheet). For each activity, the group should indicate with the cards whether they think men or women are more likely to be involved in this activity.

At the end of the exercise, the facilitator asks the group to reflect on the issues and to comment on any differences between men and women they observed (e.g. difference in access to and control of resources, decision-making, working, etc.). The facilitator will then help the group to make a definition of what gender is.

Focused discussion on the relevance of a gender approach

The facilitator asks the group, “Why is a gender approach relevant?” Their answers will be written on the board. Disagreements may arise during the discussion, and the facilitator should try to let the participants express their views, while keeping control of the time. See overhead sheet for some suggestions on this matter.

Interactive presentation on developing an O&M project with a gender approach

The facilitator can use the information contained in the overhead sheets or in the background information (see below) for an interactive presentation, but may find it opportune to invite a gender specialist to present his or her experiences in developing a project with a gender perspective.

Group exercise on development of a gender approach

The participants should be divided into three small groups to deal with: a) a sanitation project; b) a handpump project; c) a small piped system (or other project). Each subgroup is asked to develop the main points which are critical for the project, with the aim of having sustainable operation and maintenance within the gender perspective. The results are shared and discussed in a plenary session. Experience has shown that the participants like to keep a record of the work they have been doing, so it is important to organize secretarial support to help with this.

3. Overhead sheets: Sheet 1

Exercise: Gender specificity For each question, the participants respond by raising a red card (men) or a blue card (women). If important differences arise within the group, the facilitator should discuss the matter and ask for comments. · Who makes the rules and regulations concerning the use of the water point? · Who ensures that these rules are observed by all users? · Who keeps the water point and the surrounding area, including the drain, in a good and clean condition? · Who carries out immediate repairs to any small damage or leaks to prevent major failures and more costly repairs? · Who is responsible for regular maintenance (lubrication, cleaning of mechanical parts)? · Who reports any major failures immediately to those who are responsible for big repairs? · Who collects and keeps the money safely, while recording all income and expenditures? · Who makes the necessary payments for maintenance and upkeep of the water point? · Who reports to the community on how the money has been spent? · Who takes decisions within the Water Committee? · Who contributes to the construction of the water supply system? · Who contributes to the construction of a latrine? · Who maintains the latrines? · Who transports and stores the water? · Who educates the children on proper hygiene behaviour?

Overhead sheet 2

What is gender? Figure · Sex relates to the biological difference between a man and a woman · Gender relates to the social difference between a man and a woman · Gender does not relate only to women, but to both women and men · The gender approach optimizes the roles and responsibilities of both men and women

Overhead sheet 3

What is the relevance of a gender approach? · Users form an heterogeneous group · Women have a keen and direct interest in water supply, sanitation and hygiene · Women stay in the community · Men and women, by sharing the responsibilities, decision-making and problem-solving, contribute to a higher efficiency of the system · Women transfer behaviour patterns to their children · The gender approach generates wider and more specific participation of the community in the project cycle · The gender approach contributes to the development of women · The gender approach contributes to sustainability.

Overhead sheet 4

Planning with a gender perspective 1. Participatory diagnosis of: · the existing water supply and sanitation services within the community · health status by gender · work division in households · accessibility, use and control of water · problems and constraints · technical expertise among men and women · the cultural elements and beliefs linked to water and sanitation · social participation in decision-making. 2. Consolidation of community organizations · constitution of mixed committees · active promotion of women in the committee · discussion with the committee on problems relating to participation and decision-making in a gender perspective · revision of the election process of community members in the committee. 3. Appropriate selection of technology · technology adapted to the needs of men and women (washing, etc.) · technology using the knowledge and skills of both men and women · technology that can be maintained by men and women. 4. Operation and maintenance · training for both men and women · active and organized role in preventive maintenance.

4. Background information¹

¹ Most of this background information has been extracted from: Gender in water resources management, water supply and sanitation - Roles and realities revisited, by Christine van Wijk-Sijbesma. The Hague, IRC, 1998 (Technical Paper Series No. 33-E).

4.1 Definitions

What is gender and what is a gender balance? Contrary to what is still stated in the literature, gender does not relate only to women, but to both women and men. As the Institute of Development Studies of the University of Sussex puts it, “The gender-based approach is distinct in that it focuses on women and men, rather than considering women in isolation.” In particular, a gender approach pays attention to:

· differences between women’s and men’s interests, even within the same household, and how they are manifested;

· the conventions and traditions determining men’s and women’s position in the family, community and society at large, whereby women are usually dominated by men;

· differences among women and among men, based on age, wealth, ethnic background and other factors;

· the way gender roles and relations change, often quite rapidly, as a result of economic forces, migration for work, and other social trends.

4.2 Historical background

The fact that a gender approach is still often taken to mean only changes affecting women, and not men, goes back to four decades ago. The first expression of concern for women and their involvement in development emerged in the 1960s. Women were recognized as a disadvantaged group, for whom special women’s components had to be developed. In general projects, such as water supply, women were seen mainly as the beneficiaries of the proposed improvements.

In the late 1970s and early 1980s, women began to be recognized as actors and managers in their own right, and it was demonstrated that involving women in planning, construction and management of, e.g. water supply and sanitation services, brought benefits for general development, for the projects, for the households, and for the women themselves.

In the second half of the 1980s and early 1990s it became clear that the effective involvement of women requires them to unite and develop strength and self-reliance. This enables them to give direction to their lives and circumstances and encourages men to look upon women’s participation not as competition, but as a natural right - the right for women to deal with and make decisions on material and non-material resources which are crucial to their lives. While women are the ones who do the physical work of transporting, digging, cleaning and caretaking, they have no say in the control of the resources on which their livelihood depends.

Carolyn Moser (1989) described four stages in the evolution of development programmes: the welfare approach, the equity or anti-poverty approach, the efficiency approach, and the empowerment approach. The welfare approach focuses exclusively on women’s reproductive roles. It identifies women exclusively as mothers, wives and housewives. It sees the problem and its solution in the women themselves: if the women change their domestic behaviour, better hygiene, health, nutrition, etc. will follow.

In contrast, the anti-poverty and efficiency approaches point out that besides being mothers, wives and housewives, women are also economic producers and actors in the public realm. During colonial and neo-colonial times these roles were not recognized and the position of women was low. This resulted in a loss of status, as well as a loss of income, and reduced the efficiency of projects.

The empowerment approach seeks to identify power, not in terms of domination, which carries the assumption that a gain for women implies a loss for men, but rather in terms of the rights of women, and of men, to make their choices in life and to influence the direction of change. The approach challenges women to seek a new self-consciousness and new positions in their countries’ legal and civil codes, economies, institutions and management systems.

4.3 Elements for a gender analysis

For the formulation, assessment and review of policies, projects and programmes and documents, such as the present literature review, the following six questions may form the basis for the analysis of gender in water resources development and management:

1. In what way are men and women using the resource and for what purpose(s)?

2. How are the contributions to the development and management of water resources (e.g. in labour, time, payments, and in kind) divided between men and women?

3. Who makes the decisions and who controls their implementation at the various levels?

4. Who commands the project or programme resources, such as jobs and training?

5. Who gets the benefits and has control over these benefits, such as status, water, products produced with this water, and income resulting from these products, and who makes the decisions on how this income is used?

6. How are these attributes distributed among women and among men of different wealth, ages, and religious and ethnic divisions? In other words, do some women and men benefit more than others?

A gender approach analyses current gender divisions and strives for an equitable balance between men and women of different ages and marital and socioeconomic status, in terms of the following indicators:

· access to information
· amount of physical work
· division of contributions in time and cash
· degree of decision-making
· access to resources and benefits: water, training, jobs, income
· control over these resources and the benefits from them.

4.4 Ways to overcome constraints to women’s participation

Activity	Mechanism
Project initiation	Programmes establish contacts with male leaders to get their understanding and support for the participation of women.
Information and dialogue	Programmes use information channels and materials that also reach women.
Meetings	Programmes encourage women to participate and to speak at project meetings by:
		· fixing a time and place convenient for women and men · informing women about the meeting and inviting them to attend · making appropriate seating arrangements (not women at the back) · facilitating women to speak (use of vernacular language, discussion breaks, choosing a spokeswoman, etc.) · having a separate meeting with women, where necessary.
Planning	Linking water and sanitation projects with economic and educational development programmes.
Decision-making	Programmes enable women to participate in the following:
		· appointment of caretakers and mechanics · appointment of committee members · design and location of facilities · local management arrangements · local financing system.
Representation	Women choose their own representatives based on trust, easy contact, leadership capacity, and feasibility (time and family permitting).
Management	Programmes build on women’s traditional tasks, skills and knowledge for the following new roles in management (without in any way excluding men):
		· management of water, waste and soil use · maintenance and repair of water points · hygiene education with other women · construction of latrines and monitoring maintenance and use · management of funds.
Training	Training women for technical and managerial tasks. Making programme staff and management aware of the reasons for equal participation and offering training to both women and men.
